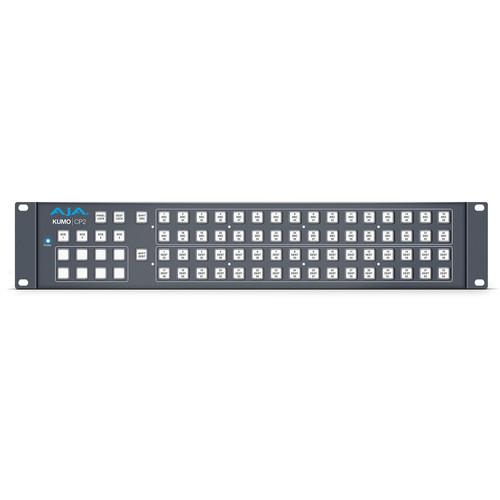

User Manual for AJA KUMO CP2 Remote Control Panel Click to enlarge the picture
Contents of the user manual for the AJA KUMO CP2 Remote Control Panel
- Product category: Router, Switcher & Patchbay Accessories AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Router, Switcher & Patchbay Accessories
|
User manual for the AJA KUMO CP2 Remote Control Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description With AJA's KUMO CP2 Remote Control Panel, you can easily and intuitively control up to four AJA KUMO 1604, 1616, 3232, and 6464 routers over an Ethernet connection without the need for a computer. While individual ports can be routed, ganged dual and quad port routing also allows for dual and quad-link SDI routing for raw HD and 4K material. - Push-Button Interface
- The KUMO CP2 features 80 buttons and enables selection of up to 64 sources and 64 destinations on each of up to four KUMO routers in standalone mode or through a built-in GUI accessible from any web browser on the network.
- Multi-Router Configuration
- Utilizing its Ethernet network connection, the KUMO CP2 can communicate with up to four KUMO routers anywhere on the network. This allows you to locate control panels wherever they are needed for optimal accessibility.
- Simple Installation and Configuration
- For standalone configurations with KUMO CP2, all KUMO routers can be connected together directly using standard RJ45 cables or through a network switch, if required. KUMO software will automatically detect and assign routers to control panel delegations so your routing system is ready for use immediately.
In a network environment, the built-in web UI provides all the setup controls to create exactly the configuration you require. - Custom Button Labels
- Customize the KUMO CP2's buttons exactly to your needs. Use text labels and colored inserts to identify various sources, destinations and routers for quick and easy operation. To get you started, you can download a free lens chip template from the AJA website which can be color-printed and cut to create an insert for each button.
Light-gauge paper or film will be illuminated by the button for easy identification even in dark machine rooms or edit suites. In the Box AJA KUMO CP2 Remote Control Panel KUMO Power Supply tsbfvceyuxtb Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA KUMO CP2 Remote Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA KUMO-CP2 Specs | Network Interface | 1 x RJ-45, 10/100/1000 Ethernet | | Power Consumption | Typical: 4 W
Max: 9.6 W | | Power Supply | Input: 100-240 VAC, 50/60 Hz
Output: 9-17 VDC | | Dimensions | 17.4 x 1.3 x 3.5" / 48.3 x 3.3 x 8.9 cm
Rackmount: 2 RU | | Weight | 2.1 lb / 1 kg | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 23.6 x 6.3 x 3.5" |
