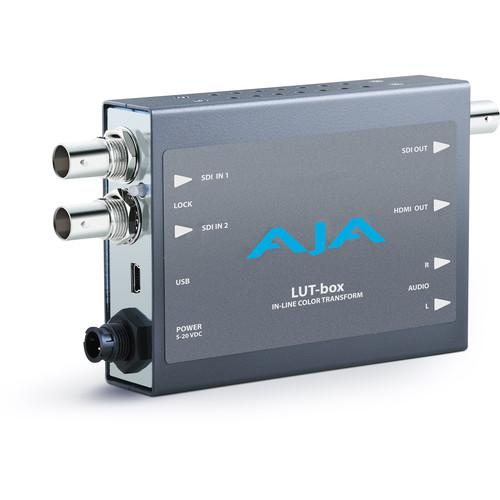

User Manual for AJA LUT-box Click to enlarge the picture
Contents of the user manual for the AJA LUT-box
- Product category: Color Calibration Equipment AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Color Calibration Equipment
|
User manual for the AJA LUT-box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description The AJA LUT-box allows you to load 3D LUTs via USB to adjust the color space from a source signal, ensuring that every monitor you use shows the correct look for that signal. It supports 3D LUTs at 17x17x17 at 12-bit processing in .lut, .txt, .3dl, .cube file formats. Featuring HDMI and 3G-SDI outputs, it lets you output to HDMI and SDI monitors at the same time from a single unit. The original footage is maintained in an alternate color space so you can take advantage of additional dynamic range.
Using a free-to-download AJA MiniConfig control software, you get to select 8 of 16 SDI embedded audio channels and pass them to the HDMI output. Two channels of RCA audio output allow you to pass separate RCA audio at the same time with your HDMI audio. MiniConfig also provides detailed information about the current input and output formats, allows you to control all the parameters of the LUT-box, and lets you download firmware updates. It's compatible with Mac and PC and interfaces with the LUT-box via a USB connection between the LUT-box and the computer.
LUT-box features a compact, portable, and rugged design and comes with a 3.2 ft HDMI cable and a universal power supply with international plugs for use around the world. - Accurate Color Representation
- LUT-box allows you to load 3D LUTs via USB at 17x17x17 with 12-bit processing.
- Supported LUT File Formats
- .lut, .txt, .3dl, .cube
- Extensive Connectivity
- LUT-box accepts 3G and Dual-Link input in a wide range of signal formats. Simultaneous SDI and HDMI outputs allow multiple monitors to view the corrected color signal.
- Audio Integration
- Up to 16 channels of SDI embedded audio can be passed to the 8 channels of embedded audio on the HDMI output. The audio can also be delayed from 0 to 7 frames for proper synchronization with the output video. Two channels of RCA analog audio output allow direct external monitoring without the need to disembed the audio separately.
- USB and MiniConfig Support
- The LUT-box supports AJA's free-download MiniConfig software, which provides detailed information about the current input and output formats, allows you to control all the parameters of the LUT-box, and lets you download firmware updates. MiniConfig is compatible with Mac and PC and interfaces with the LUT-box via a USB connection between the LUT-box and the computer.
- Universal Power Supply
- A universal power supply with international plug connections for use around the world is included.
UPC: 812321031096 In the Box AJA LUT-box DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters 3.2 ft (1 m) HDMI Cable 5-Year Limited Warranty User Manual PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA LUT-box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA LUT-BOX Specs | Video Input | 2x 3G-SDI with embedded audio | | Input Formats | 720p 50, 59.94, 60
1080i 50, 59.94, 60
1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF 23.98, 24, 25, 29.97, 30 (converts to progressive)
2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2K x 1080PsF 23.98, 24, 25, 29.97, 30 (converts to progressive) | | Video Outputs | 3G-SDI with embedded audio
HDMI with embedded audio, 30-bit Deep Color support | | Audio Input | SDI embedded audio, select 8 of 16 channels and pass to the HDMI output | | Audio Output | 2-channel RCA-style (-10 dBV nominal) | | LUT File Format Support | .lut, .txt, .3dl, .cube | | Power | Uses AJA Power Supply model DWP-U-R1 (included)
100-240 V, 50/60 Hz universal input
+5 V DC regulated, 7.5 W capacity | | Dimensions | 5.8 x 3.1 x 1" (14.7 x 7.9 x 2.5 cm) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.5 x 5.8 x 3.8" |
