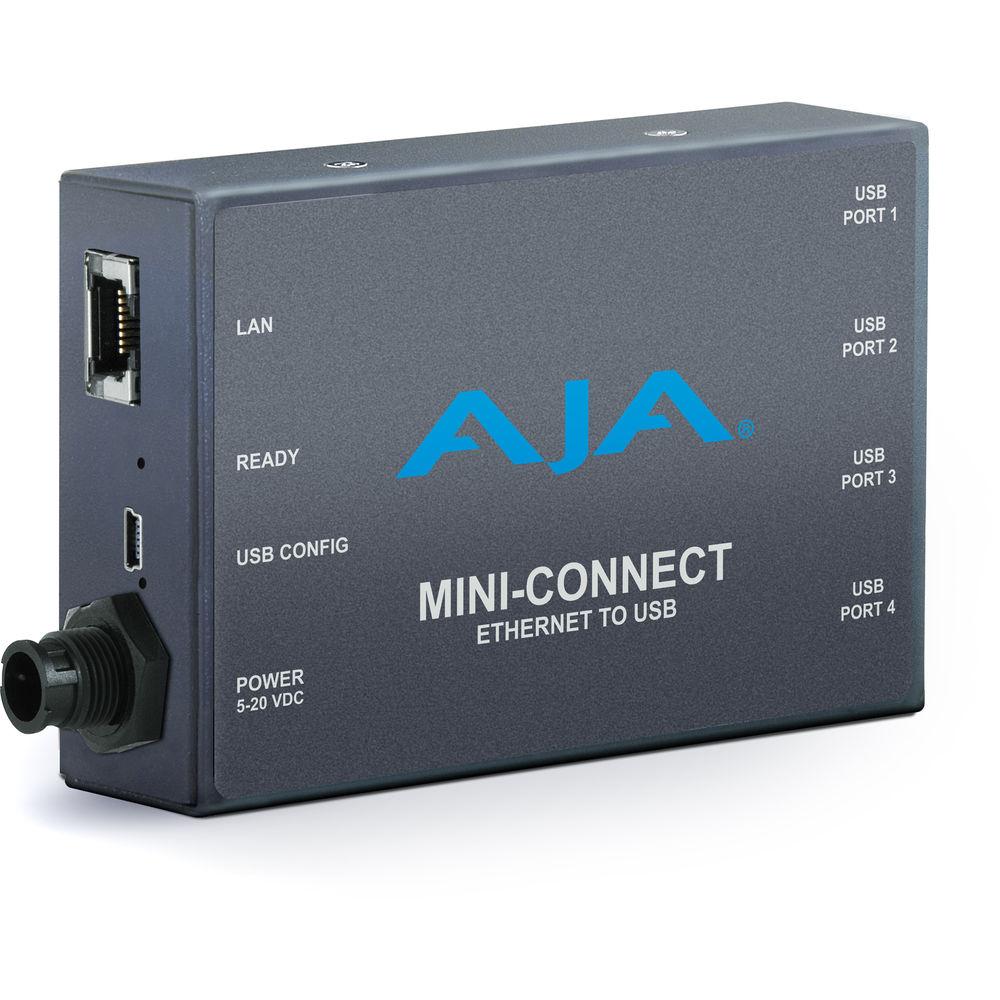

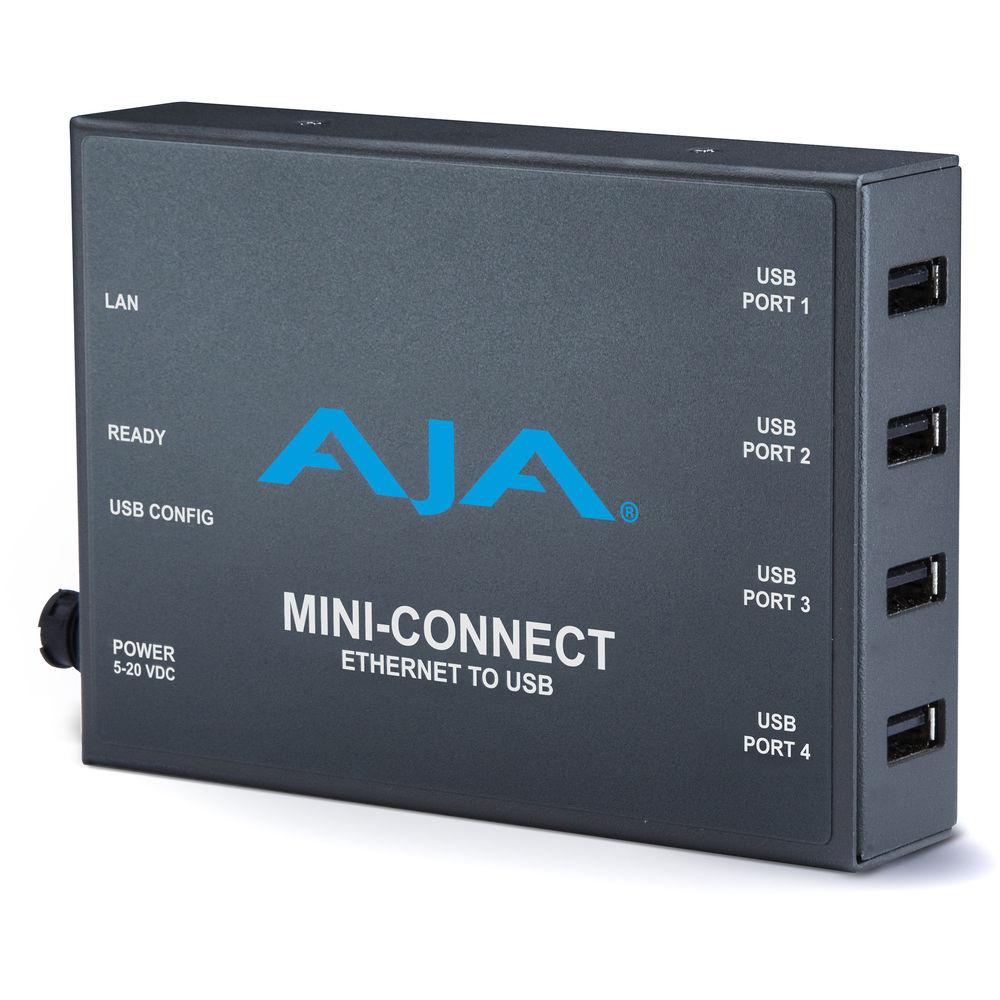

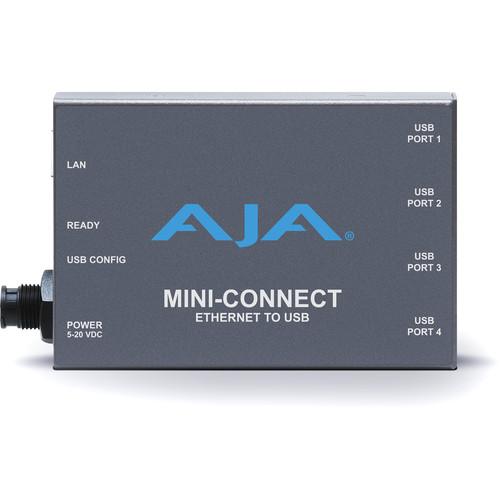

User Manual for AJA Mini-Connect Ethernet to 4-Port USB Converter Click to enlarge the picture
Contents of the user manual for the AJA Mini-Connect Ethernet to 4-Port USB
- Product category: Accessories for Converters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Accessories for Converters
 |
User manual for the AJA Mini-Connect Ethernet to 4-Port USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description The AJA Mini-Connect allows you to control up to four USB-enabled AJA Mini-Converters over a single Ethernet connection. By connecting the converters to your existing Ethernet network, the Mini-Connect extends control of your ROI Mini-Converters across the local network or across the web for access from anywhere. An embedded web server allows you to easily configure and control the converters from any web browser on any OS, whether you're close by or on the other side of the world. A universal power supply is included, with a locking power connector helping to prevent accidental power loss. - Supported AJA Mini-Converters
-
- Key Features
-
- Control up to four ROI Mini-Converters over a single Ethernet connection
- 10/100/1000 Ethernet (RJ-45)
- Embedded web server for remote control
- Network configuration and transport control via web browser interface
- USB configuration and device control of up to four ROI Mini-Converters via web browser-based UI (over Mini-USB port)
- AJA eMini Setup software for quick and easy network setting configuration
- Universal power supply
- Locking power connector
In the Box AJA Mini-Connect Ethernet to 4-Port USB Converter DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Mini-Connect Ethernet to 4-Port USB Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA MINI-CONNECT Specs | Network Interface | 10/100/1000 Ethernet (RJ-45) | | Device Connectivity | 4 x USB (for connecting ROI Mini-converters) | | USB Configuration | Mini-USB for configuration and device control via web-based UI | | Power | 5 to 20 VDC, 8 W max. | | Power Adapter | 100 to 240 VAC, 50/60 Hz | | Dimensions | 4.6 x 2.4 x 1.0" (10.9 x 7.8 x 2.5 cm) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.3 x 5.7 x 4.2" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
