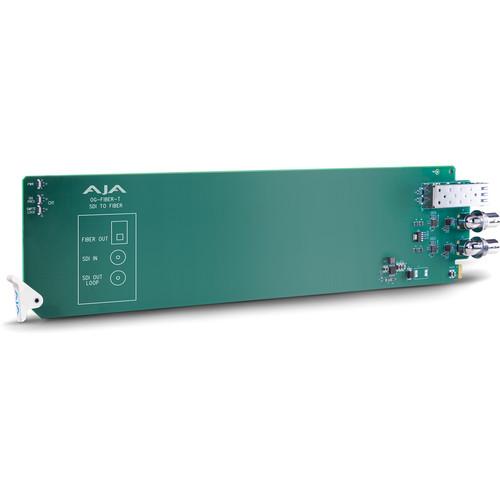

User Manual for AJA openGear 1-Channel SDI to Fiber Converter Click to enlarge the picture
Contents of the user manual for the AJA openGear 1-Channel SDI to Fiber
- Product category: Signal Converters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Signal Converters
|
User manual for the AJA openGear 1-Channel SDI to Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description Provided by third party: The OG-FIBER-T is a state-of-the-art, openGear-compatible SDI to Fiber converter, enabling SDI signals to be extended up to 10 km over standard single-mode fiber optic cable. The SDI input is re-clocked with best-in-class input jitter tolerance. A re-clocked looping SDI output is also provided.
- Key Features
-
- Automatic detection and re-clocking of 270Mb, 1.5Gb, and 3Gb SDI data rates
- Inputs: SDI, BNC connector
- Outputs: Single mode optical fiber, LC connector; SDI, BNC (loop of input)
- Bypass mode: 50mb to 3gb - auto bypassing for non SMPTE rates
- Hot-swap capable
UPC: 892448000120 Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA openGear 1-Channel SDI to Fiber Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA OG-FIBER-T Specs | | | Device Type | Video/audio extender | | Form Factor | Plug-in module | | | | Connectivity Technology | Wired | | Data Transfer Rate | 3 Gbps | | Optical Wave Length | 1310 nm | | Max Transfer Distance | 6.2 miles | | Features | Hot swap module replacement | | | | Interfaces | 1 x network - LC single-mode female x 2
1 x 3G-SDI output - BNC female
1 x 3G-SDI input - BNC female | | | | Power Consumption Operational | 2.5 Watt | | | | Min Operating Temperature | 32
