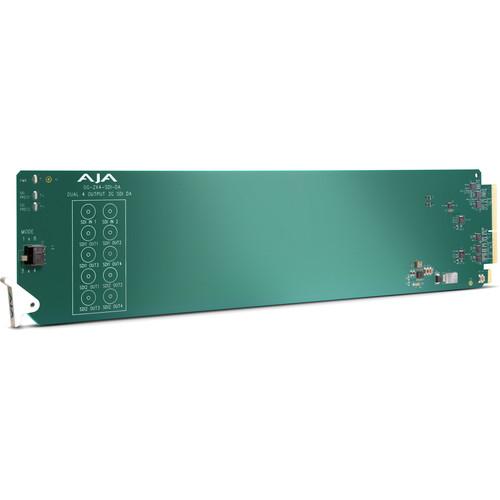

Product description The openGear Dual 1x4 3G-SDI Reclocking Distribution Amplifier from AJA delivers incoming 3G-SDI signals on two input channels that are reclocked and distributed to four 3G-SDI outputs each. It can also function as one 8-channel DA, allowing the same signal to be sent to eight destinations simultaneously. This dual input capability allows double the number of DAs in limited frame space. SDI rates of 270MB, 1.5GB, and 3Gb are supported. It features two SDI inputs and eight SDI outputs. A 10-BNC rear openGear connector module is included. - Compatibility
- DFR-8321 and OG3 openGear frames
- Features
-
- Automatic cable equalizer and automatic reclocker bypass
- Automatic detection and reclocking of 270MB, 1.5GB, and 3Gb-SDI data rates
- Advanced jitter input tolerance and low jitter reclocked outputs
- Hot swap capable
Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA openGear Dual 1x4 3G-SDI Reclocking Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA OG-2X4-SDI-DA Specs | Video Formats | 100 Mb/s to 3 Gb/s
Format agnostic | | Video Input Digital | 1 x 8 Mode (Single 1x8 DA)
1 x 3G-SDI BNC, SMPTE-259/292/424
2 x 4 Mode (Dual 1x4 DA)
2 x 3G-SDI BNC, SMPTE-259/292/424 | | Video Output Digital | 1 x 8 Mode (Single 1x8 DA)
8 x 3G-SDI, SMPTE-259/292/424
Four outputs, non-inverting
2 x 4 Mode (Dual 1x4 DA)
8 x 3G-SDI, SMPTE-259/292/424
Two outputs, non-inverting (each DA) | | Cable Equalization | 270 Mb/s, 350 m
1.5 Gb/s, 200 m
.3 Gb/s, 120 m | | Reclocking | 270 Mb/s, 1.483 Gb/s, 1.485 Gb/s, 2.966 Gb/s, 2.970 Gb/s (Auto select)
All other rates are passed through and not reclocked | | Power | openGear Frame compatible, 2.0 W max per card | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Operating Relative Humidity | 10 to 90% Non-condensing | | Operating Altitude | <10,000' (<3,000 m) | | Size | openGear Standard form-factor, front slot, and rear card
Slots: Two slots required for each card
Rear Card: OG-10-BNC-Rear
10 x BNC, SMPTE-259/292/424 | | Weight | 0.2 lb (0.1 kg) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 15.2 x 7.8 x 3.8" |
