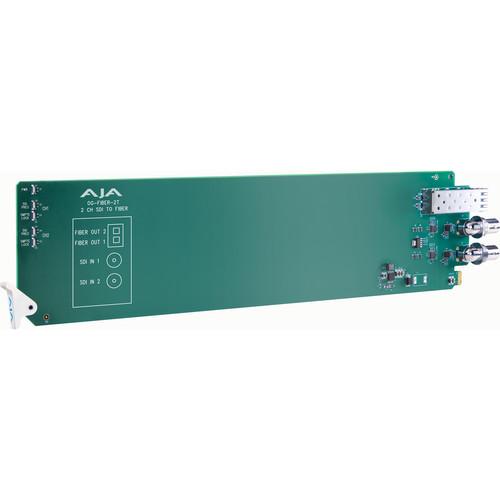

Product description The openGear Two-Channel 3G-SDI to Fiber Converter from AJA enables SDI signals to be extended up to 6.2 miles over standard single-mode fiber optic cable. The two SDI inputs are completely independent, allowing for different SDI rates to be carried on each channel. Each SDI input is reclocked with input jitter tolerance, and SDI rates of 270 Mbps, 1.5 Gbps, and 3 Gbps are supported. The fiber connector is attached to the main card for added reliability and cost savings. Note: SFP modules are not included. - Compatibility
- DFR-8321 and OG3 openGear frames
- General
-
- Automatic detection and reclocking of 270 Mbps, 1.5 Gbps, and 3 Gbps SDI data rates
- Input Present and Input SMPTE Lock LEDs
- Hot swap capable
Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA openGear Two-Channel 3G-SDI to Fiber Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA OG-FIBER-2T-X Specs | Video Formats | 100 Mbps to 3 Gbps, Format agnostic | | Video Input Digital | 2 x 3G-SDI BNC, SMPTE-259/292/424 | | Video Output Digital | 2 x Single-mode optical fiber, LC connector, SMPTE-297
Frequency: 1310 nm +/-40 nm
Typical Output Power: -5 dBm | | Cable Equalization | 270 Mbps, 382.8 yd (350 m)
1.5 Gbps, 218.7 yd (200 m)
3 Gbps, 131.2 yd (120 m)
Belden 1694A coax | | Reclocking | Auto select 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps
All other rates are passed through and not reclocked | | Power | 2.5 W Max per card | | Environment | Safe Operating Temperature: 32 to 104°F (0 to 40°C)
Safe Storage Temperature (Power Off): -40 to 140°F (-40 to 60°C)
Operating Relative Humidity: 10 to 90%, Non-condensing
Operating Altitude: < 10,000' (< 3,000 m) | | Dimensions | 15.5 x 7.8 x 4.5" (39.3 x 20.0 x 11.4 cm) | | Weight | 0.9 lb (0.4 kg) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 15.1 x 7.9 x 3.6" |
