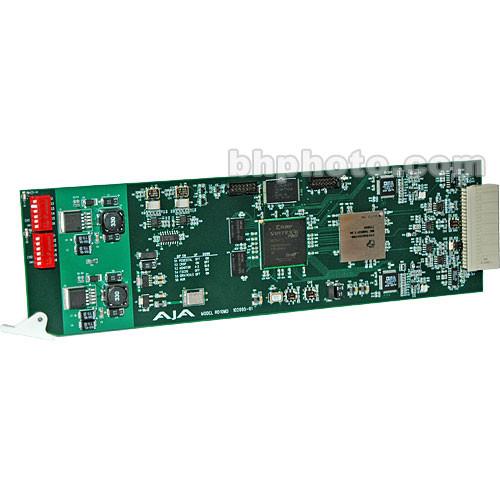

Product description The AJA RD10MD is a dual rack card downconverter; it accepts a High Definition SDI digital video signal and downconverts to output Standard Definition SDI digital video. Channel 1 has 2 re-clocked HD/SD-SDI outputs, and channel 2 has 1. Both channel 1 and 2 have 2 down-converted outputs, which can be independently configured as SDI or composite analog. - Multi-Standard
- This unit offers the user an NTSC or PAL analog video selection.
- Aspect Ratio
- The output of this device can be formatted for 4:3 or 16:9 aspect ratios.
- Digital or Analog Output
- Standard definition SDI or analog video can be utilized from the output of this unit.
- Multi-Format Input
- A variety of High Definition video formats can be input for conversion.
- Dual Rate
- The input accepts either HD-SDI or SD-SDI and converts to the proper parameters.
- Embedded Audio
- This device allows 4 channels of embedded audio to be passed to the SDI output.
- Rack Card
- The RD10MD is a rack card utilizing a rack frame to power and operate the converter
In the Box AJA RD10MD Dual Digital Downconverter - Dual Rate HD-SDI and SD-SDI Input, SD-SDI and Analog Component Output Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA RD10MD Dual Digital Downconverter - Dual Rate HD-SDI and SD-SDI Input, SD-SDI and Analog Component Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA RD10MD2 Specs | Input | Digital HDTV: On a Looping 75 Ohm BNC connecter
1035i @ 50 to 60 Hz
1080i 50 to 60 Hz
1080p 24sf
1080p 25sf
720p @ 50 to 60 HzStandard SDI, SMPTE 259M, on BNC connector | | Output | Digital HDTV:
On two looping 75 ohm BNC connecters
Standard Definition Digital:
SDI on a 75 ohm BNC connecter
Standard Definition Analog:
Three Composite NTSC/PAL on BNC Connecters or
One Y/C utilizing two BNC connecters or
One Component (YUV, RGB) on three BNC connectersStandard SDI x2, Loop Out, on BNC connectors | | Conversion | Digital HDTV to Standard Definition SDI, YUV, RGB, Composite and Y/C Video | | Control | External Dip Switch:
Input Video
Output Video
Gradicule 4:3 Overlay
Output Pedestal
Aspect Ratio Output | | Power Source | 5 to 18 VDC from rack frame Power Supply | | Dimensions (WxDxH) | Fits AJA R-Series Rack Frames | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 13.0 x 9.65 x 3.15" |
