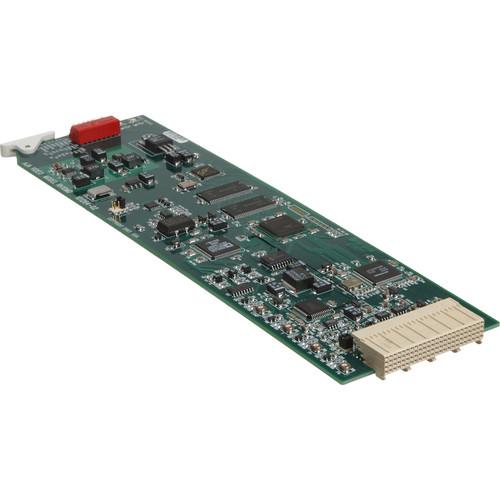

Product description The RH10MD is a HD-SDI to Standard SDI converter; it features a rack card configuration to work with the FR1 and FR2 rack frames and multiple outputs for Distribution Amplifier capabilities. - Down Conversion
- This device down converts from HD-SDI to Standard definition SDI and can be configured to output analog component or composite video.
- Embedded Audio
- The RH10MD supports the passage of four channel embedded audio within the conversion process of the SDI signals.
- Multi-Standard
- Supports all HDTV television standards such as 1080i and 720p at various frame rates.
- DA
- Configured to output four standard definition SDI signals and four HD-SDI signals to act as a distribution amplifier as well as a converter.
- Aspect Ratio
- 4:3 and 16:9 aspect ratios are supported featuring letterbox, crop and 4:3 safe-zone graticule.
- Rack Frame
- The RH10MD is a rack card utilizing a rack frame to power and operate the converter.
In the Box AJA RH10MD HD-SDI to SDI Down Converter, Distribution Amplifier, HD-SDI, SDI, Component, Y/C, Composite Note: This device requires a rack frame for operation Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA RH10MD HD-SDI to SDI Down Converter, Distribution Amplifier, HD-SDI, SDI, Component, Y C, Composite in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA RH10MD Specs | Input | High Definition SDI, 1080i, 720p, 1080p, all frame rates supported, on a BNC connectoror on same connector
SDI Digital Video, SMPTE 259, 292, 296, with or without embedded audio (4 channel AES), on a BNC connector | | Output | High Definition SDI x4, 1080i, 720p, 1080p, all frame rates supported, on BNC connectors
SDI Digital Video x4, SMPTE 259M, on BNC connectors
Component Video, manually configured, on three BNC connectors
Composite Video, manually configured, on a BNC connector
Y/C (S-Video), manually configured, on two BNC connectors | | Conversion | HD-SDI to Standard SDI
HD-SDI to Component, Composite or Y/C Video
SDI with Embedded Audio to 4 SDI outputs with Embedded Audio | | Control | Dip Switches:
Output Video Format
Aspect Ratio Select for Monitor
Letterbox or Crop for 4:3
Pedestal Output
4:3 Safe Zone Graticule | | Power Source | Power is derived from Rack Frame | | Dimensions (WxDxH) | Fits AJA R-Series Rack Frames | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 10.9 x 3.2 x 0.6" |
