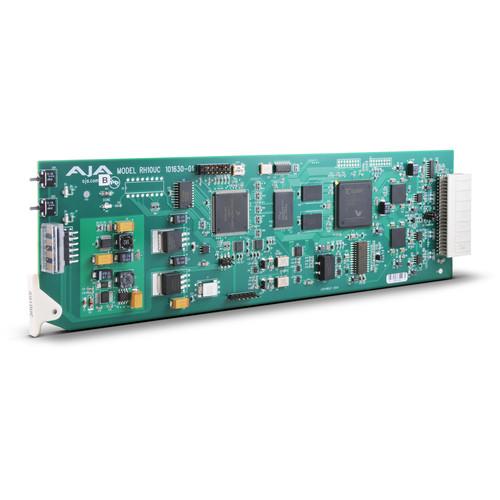

User Manual for AJA RH10UC Hi-Definition Up-converter - Standard-SDI to HD-SDI Converter for FR1 & FR2 Rack Mount Frames Click to enlarge the picture
Contents of the user manual for the AJA RH10UC Hi-Definition Up-converter - Standard-SDI
- Product category: Signal Converters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Signal Converters
|
User manual for the AJA RH10UC Hi-Definition Up-converter - Standard-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description The RH10UC is a 10-bit SD to HD up-converter. Using motion-adaptive de-interlacing and high quality digital scalers, the RH10UC provides excellent Broadcast quality HD video from SD sources. Output HD video is selectable between 720p and 1080I formats. - Aspect Ratio Conversion
- 4:3 to 16:9 aspect ratio conversion is selectable between 4:3 pillarbox, 14:9 crop, 16:9 anamorphic, and 16:9 zoom.
- Selectable HD Output Format
- Output HD video is selectable between 720p and 1080I formats.
- Embedded Audio
- The RH10UC passes 8 channel embedded audio with a compensating delay.
- Frame Synchronizer
- The RH10UC can operate as a stand-alone HD or SD Frame Synchronizer.
- Upconversion
- Upconversion is made possible by Motion adaptive, Multi-point interpolation, 10-bit processing.
In the Box AJA RH10UC Hi-Definition Up-converter - Standard-SDI to HD-SDI Converter for FR1 & FR2 Rack Mount Frames Note: This device requires a rack frame for operation Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA RH10UC Hi-Definition Up-converter - Standard-SDI to HD-SDI Converter for FR1 & FR2 Rack Mount Frames in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA RH10UC Specs | Input | SDI Digital Video, Looping, 525/59.94, 625/50, SMPTE 259M, on a BNC connector
Reference, Looping, on a BNC connector | | Output | SDI Digital Video Loop Out x2, 525/59.94, 625/50, SMPTE 259M, on a BNC connectors
SDI-HD Digital Video x4, 1080i 50/59.94, 720p 50/59.94, on BNC connectors | | Conversion | Standard Definition SDI video upconverting to HD-SDI
Aspect Ratio and Signal format selectable | | Control | Toggles on Card
Upconvert
Frame Synchronizer
Output Format
Aspect Ratio Select
Output Timing | | Power Source | Power is derived from Rack Frame | | Dimensions (WxDxH) | Fits AJA R-Series Rack Frames | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 13.0 x 9.5 x 3.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
