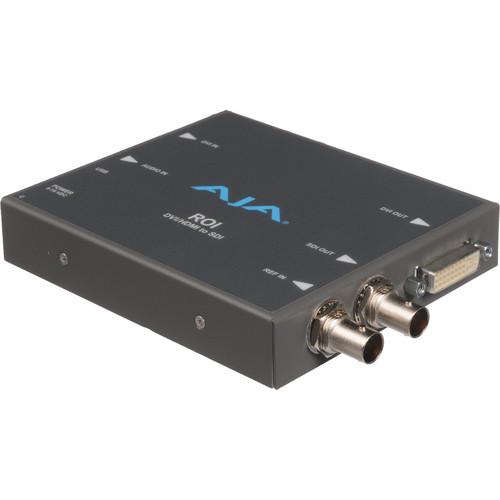

User Manual for AJA ROI DVI to SDI Mini-Converter Click to enlarge the picture
Contents of the user manual for the AJA ROI DVI to SDI Mini-Converter
- Product category: Signal Converters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Signal Converters
|
User manual for the AJA ROI DVI to SDI Mini-Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description AJA's ROI DVI to SDI Mini-Converter converts a DVI signal to an SDI output, enabling you to use computer signals in digital video workflows. On an included MiniConfig software application compatible with Macs and PCs, you'll be able to select a Region of Interest from the input signal and assign how the region is scaled to the output. You can assign image scaling and extensive aspect ratio and frame rate conversions. The Converter syncs up to the MiniConfig application via a USB cable connection to the host computer. A USB cable and a universal power supply are also included.
A DVI loop through will allow you to monitor the input locally, and a reference input will let you genlock the SDI output. Both the DVI input and loop through support optional DVI-to-HDMI adapters, so you can convert HDMI to SDI and/or monitor your input on an HDMI display.
A 3.5mm TRS input supports 2 channels of analog audio, the SDI output supports 8 embedded channels at 24-bit, and the DVI input supports 8-channel, 24-bit HDMI embedded audio if you use a DVI-to-HDMI adapter. - Key Features
-
- DVI to SDI conversion
- Region of Interest scaling
- DVI loop through
- DVI-to-HDMI adapter supported on input and loop through
- Audio embedding
- Aspect ratio conversion
- Genlock input
- Conversions are configured via included MiniConfig software
- Uses 5-18VDC power (universal power supply included)
- Region of Interest
- In an included MiniConfig software application, you'll be able to select a Region of Interest in an incoming DVI or HDMI signal and control how that region is scaled to the output resolution. This selection will let you eliminate extra interface clutter and menu bars and extract only the portion of the image you want.
- Conversion
- On-screen controls in the included MiniConfig software will let you manage aspect ratio and frame rate conversion. MiniConfig will show you exactly what your source and output will look like and what formats are coming in and going out.
- Connectivity
- The Converter features a DVI loop through enabling a connection to an external DVI monitor (or HDMI monitor via a DVI-to-HDMI adapter) while converting to SDI. A Reference input ensures the SDI output is genlocked for use throughout a production or facility.
- Audio
- The Converter accepts 2-channel audio from a 3.5mm analog audio input or embedded 8-channel audio from an HDMI input (DVI-to-HDMI adapter). The audio source and routing can be selected in the included MiniConfig software and is embedded in the SDI output, allowing computer audio to be embedded within the SDI signal for easy, synchronized routing.
UPC: 892448000151 In the Box AJA ROI DVI to SDI Mini-Converter DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters MiniConfig Software Application USB Cable Limited 5-Year Warranty User Manual PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA ROI DVI to SDI Mini-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA ROI-DVI-R0 Specs | Input | 1x DVI-D (convertible to HDMI via optional DVI-to-HDMI adapter)
1x Reference (color black, tri-level sync)
1x analog 3.5 mm TRS | | Format | DVI:
VGA (640 x 480) minimum
WUXGA (1920 x 1200) 60 Hz max
Frame rates are limited by the 165 MHz max rate of the DVI Rx
HDMI:
525i/625i
480p/580p (DSLR cameras)
720p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94
1080p 23.98/24/25/29.97/30 | | Input Data Range Control | 1 - 255 (default - 8 bit nomenclature)
16 - 235 | | Output | 1x HD/SD-SDI, SMPTE-259/292/296
1x DVI-D loop through (convertible to HDMI via a DVI-to-HDMI adapter)
1x USB (for connection to Mac or PC) | | Audio I/O | 3.5 mm TRS input, 2-channel
HDMI embedded audio input (via DVI-to-HDMI adapter), 8-channel, 24-bit)
SDI embedded audio output, 2-channel or 8-channel, 24-bit | | HDCP | The Converter does not encode the HDMI output with HDCP encryption | | Power | 5-18 VDC regulated, 3 W, required power supply included | | Dimensions | 5.8 x 4 x 1" (15 x 10 x 2.5 cm) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.8 x 7.2 x 2.8" |
