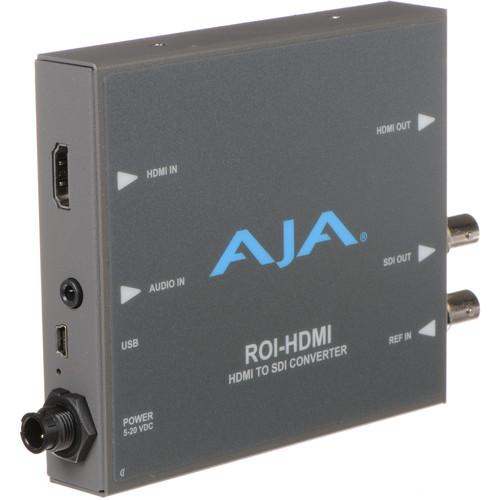

User Manual for AJA ROI HDMI to SDI Mini Converter Click to enlarge the picture
Contents of the user manual for the AJA ROI HDMI to SDI Mini
- Product category: Signal Converters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Signal Converters
|
User manual for the AJA ROI HDMI to SDI Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description If you're using a computer with an HDMI output as a video source, the AJA ROI-HDMI Mini Converter allows you to select a region of interest and scale the output to fit your working resolution. Having ROI in hardware makes it easy to broadcast part of your computer's screen without the clutter of on-screen menus and the like. And because all the cropping and scaling is done using integrated hardware, video quality remains at a high standard. Embedded audio is passed through to the HDMI loop output and the SDI output. With the 3.5mm jack, you have the option of embedding analog stereo audio into the video output. To adjust the ROI-HDMI, connect it via USB to a computer running AJA's free Mini-Config application. Using Mini-Config, all relevant settings can be changed with the intuitive GUI. A worldwide power supply is included and locks to the ROI-HDMI's power input for a secure connection. - Region of Interest (ROI)
- Eliminate extra interface clutter and menu bars and extract only the portion of the computer screen you want. Use the included Mini-Config application to select the part of the frame you want to output and then choose how to scale the output resolution.
- Conversion
- Take full control of aspect ratio and frame rate conversion with on-screen controls in the Mini-Config software that show you what your source and output will look like and what formats are coming in and going out. Simple graphical menu controls let you quickly choose the proper output for any situation.
- Audio
- The converter accepts 2-channel audio from the 3.5mm analog audio input or embedded 8-channel audio from an HDMI input. The audio source and routing can be selected in the Mini-Config software and is embedded in the SDI output. This allows computer audio to be embedded within the SDI signal for easy, synchronized routing.
- General Features
-
- HDMI to SDI conversion
- Region of Interest scaling
- HDMI loop through
- Audio embedding
- Aspect ratio conversion
- Genlock input
- Configure via USB port and supplied Mini-Config software
- Uses 5-18 VDC power (universal power supply included)
UPC: 892448000144 In the Box AJA ROI HDMI to SDI Mini Converter Power Supply USB Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA ROI HDMI to SDI Mini Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA ROI-HDMI Specs | Input Formats | Video:
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 25/29.97
720p 50/59.94/60
580p
480p
NTSC
PAL
VESA:
Maximum: 1920 x 1200 (WUXGA), 60 Hz
Minimum: 640 x 480 (VGA), 166 Hz (limited by HDMI receiver max pixel rate) | | Output Formats | Video:
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 25/29.97
720p 50/59.94/60
NTSC
PAL | | Color Range | Full
SMPTE | | Reference Input | 1080p tri-level sync
1080i tri-level sync
720p tri-level sync
NTSC 525 bi-level sync
PAL 625 bi-level sync | | Video Inputs | 1 x HDMI (with 24-bit 8-channel embedded audio) | | Video Outputs | 1 x HDMI (loop through with 24-bit 8-channel embedded audio)
1 x BNC SD/HD/3G-SDI (with 24-bit 2-channel or 8-channel embedded audio) | | HDCP | Does not encode or accept encrypted signals | | Audio Inputs | 1 x 3.5mm TRS analog stereo | | Computer Interface | 1 x USB port | | Power Supply | AJA DWP-U-R1
Input: 100-240 VAC, 50/60 Hz
Output: 5-20 regulated VDC, 9 W maximum | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 140°F / -40 to 40°C
Relative Humidity: 10-90%, non-condensing
Altitude: <10,000' / 3,000 m | | Dimensions | 5.8 x 4 x 0.9" / 146 x 102 x 23 mm | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 10.0 x 5.7 x 3.8" |
