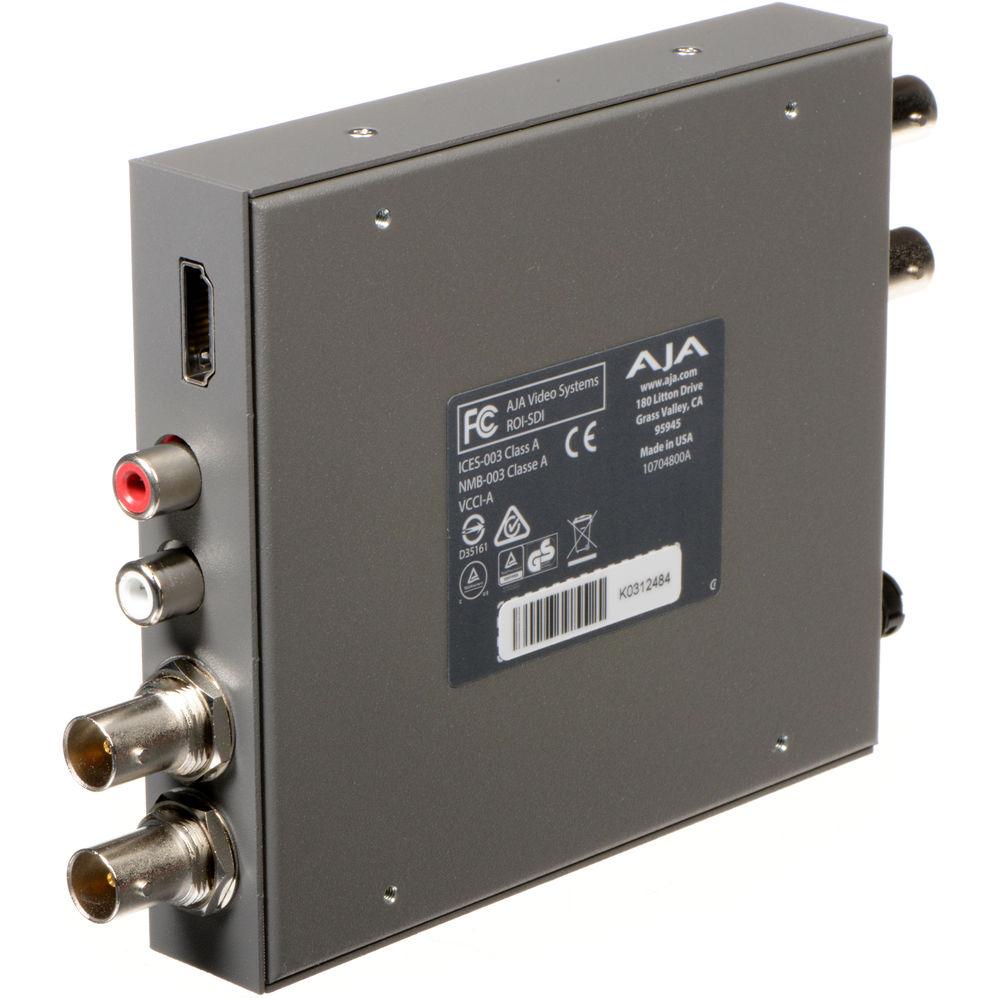

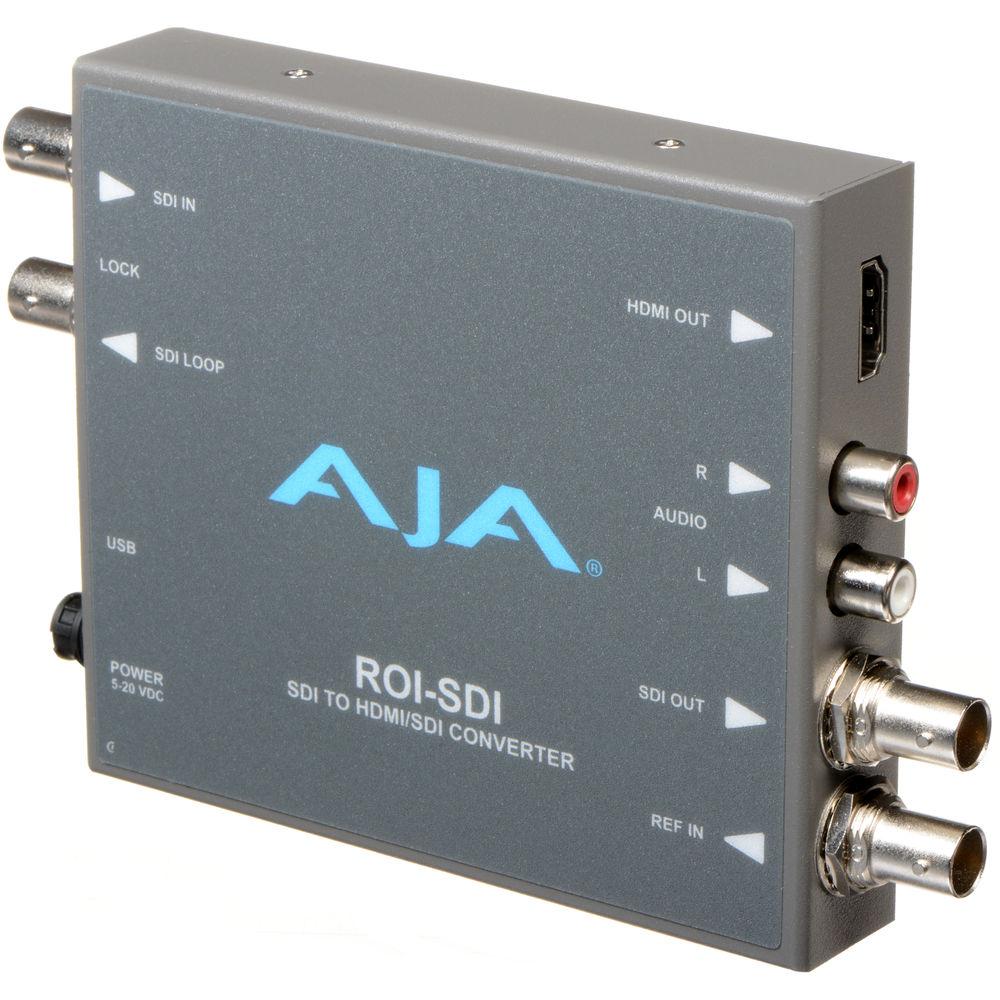

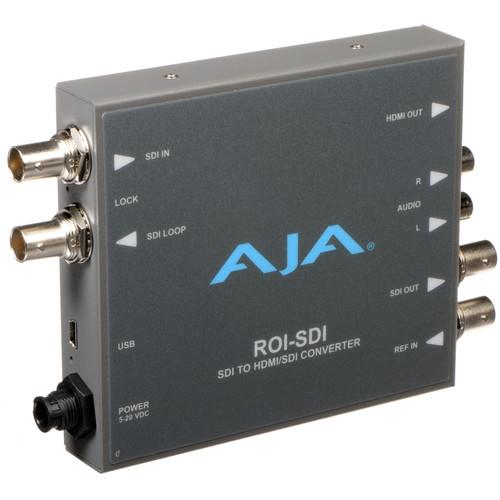

User Manual for AJA ROI-SDI 3G-SDI to HDMI 3G-SDI Scan Converter with ROI Scaling Click to enlarge the picture
Contents of the user manual for the AJA ROI-SDI 3G-SDI to HDMI 3G-SDI
- Product category: Signal Converters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Signal Converters
 |
User manual for the AJA ROI-SDI 3G-SDI to HDMI 3G-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description The ROI-SDI 3G-SDI to HDMI/3G-SDI Scan Converter from AJA allows high-quality conversion and extraction of a Region of Interest (ROI) from a 3G-SDI input to 3G-SDI and HDMI mirrored outputs in a very portable form factor. With remarkable image scaling, extensive aspect ratio conversion and audio functionality, the ROI-SDI converter customizes video signals for a range of display and SDI workflow needs without sacrificing space. - Region of Interest
-
- Allows you to rotate source signals, customize a portion of an image, or reframe the source image to extend the creative options for what’s been captured in camera
- Connecting a ROI-SDI Mini-Converter via USB to a computer running the free Mini-Config application lets you interactively select a Region of Interest from the original signal and have full control over how that region is scaled to the output resolution using AJA’s high quality scaling algorithms for a clean picture quality
- Conversion
-
- Controls aspect ratio conversion with on-screen controls in the Mini-Config software that show you exactly what your source and output will look like and what formats are coming in and going out
- Simple menu controls let you quickly choose the proper output for any situation
- Output is mirrored to both the 3G-SDI and HDMI outputs for simultaneous delivery to multiple displays or continuing signal paths
- Connectivity
-
- Utilizes a direct 3G-SDI loop through, allowing it to be placed in-line so you still have a connection to an external monitor while extracting to both 3G-SDI and HDMI
- Reference input ensures the 3G-SDI signal out of ROI is locked for use throughout a production or facility
- Audio
-
- Accepts 8-channel embedded audio from an 3G-SDI input
- Audio source and routing can be selected in the Mini-Config software and is embedded in the 3G-SDI and HDMI outputs
- Features a stereo RCA output for simple monitoring needs
- Universal Power Supply
-
- 5 to 18 VDC universal power supply includes international plug connections for use around the world
- Compact and Portable
-
- Small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig
- Locking power connector does not accidentally pull loose
In the Box AJA ROI-SDI 3G-SDI to HDMI/3G-SDI Scan Converter with ROI Scaling Universal Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA ROI-SDI 3G-SDI to HDMI 3G-SDI Scan Converter with ROI Scaling in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA ROI-SDI Specs | Video Formats | HD: 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
HD: 1080i 25, 29.97, 30
SD: 720p 50, 59.94, 60
SD: 625i 25
SD: 525i 29.97 | | Reference Input | 1080i tri-level sync
1080p tri-level sync
720p tri-level sync
625i color black
525i color black | | Video Input | 1 x 3G-SDI BNC, SMPTE-259/292/424 | | Video Outputs | 1 x 3G-SDI BNC, loop through
1 x 3G-SDI BNC, SMPTE-259/292/424
1 x HDMI Type A, HDMI v1.4 | | HDCP | ROI does not encode the HDMI output with HDCP encryption | | Audio Output Digital | SDI embedded audio, 24-bit, 8-channel
HDMI embedded audio, 24-bit, 2-channel or 8-channel | | Audio Output Analog | 2 x Analog RCA jack, 2-channel | | User Controls | USB port used with supplied cable and Mini-Config software application to configure device via Mac or Windows | | Environment | Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature (Power Off): -40 to 140°F (-40 to 60°C)
Operating Relative Humidity: 10 to 90% non-condensing
Operating Altitude: <10,000' (<3,000 m) | | Power | Uses AJA power supply model DWP-U-R1 (included with purchase)
100 to 240 VAC, 50/60 Hz universal input
5 to 20 VDC regulated, 8 W maximum | | Dimensions | 5.8 x 4.1 x 0.9" (15 x 10 x 23 cm) | | Weight | 0.6 lb (300 g) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 10.1 x 5.6 x 3.8" |
