Product description Designed for industrial, corporate, security, broadcast, and professional AV applications, the AJA RovoCam is a compact block camera that utilizes an HDBaseT interface to carry uncompressed UltraHD/HD video, audio, control, and power over a single Cat 5e/6 cable across distances up to 328'. By delivering all of this over a single cable, RovoCam aims to simplify camera installation, setup, and footprint requirements.
Performance-wise, RovoCam is built around a Sony camera module that features a 1/2.3" 8.93MP backside-illuminated sensor and Sony image processor that combine to support UHD video at 25/29.97 fps and 1080p at 50/59.94 fps. It also features Sony optics with a 12x optical zoom range and up to 20x intelligent (Sony Super Resolution) zoom, which can be controlled remotely via Sony's VISCA protocol.

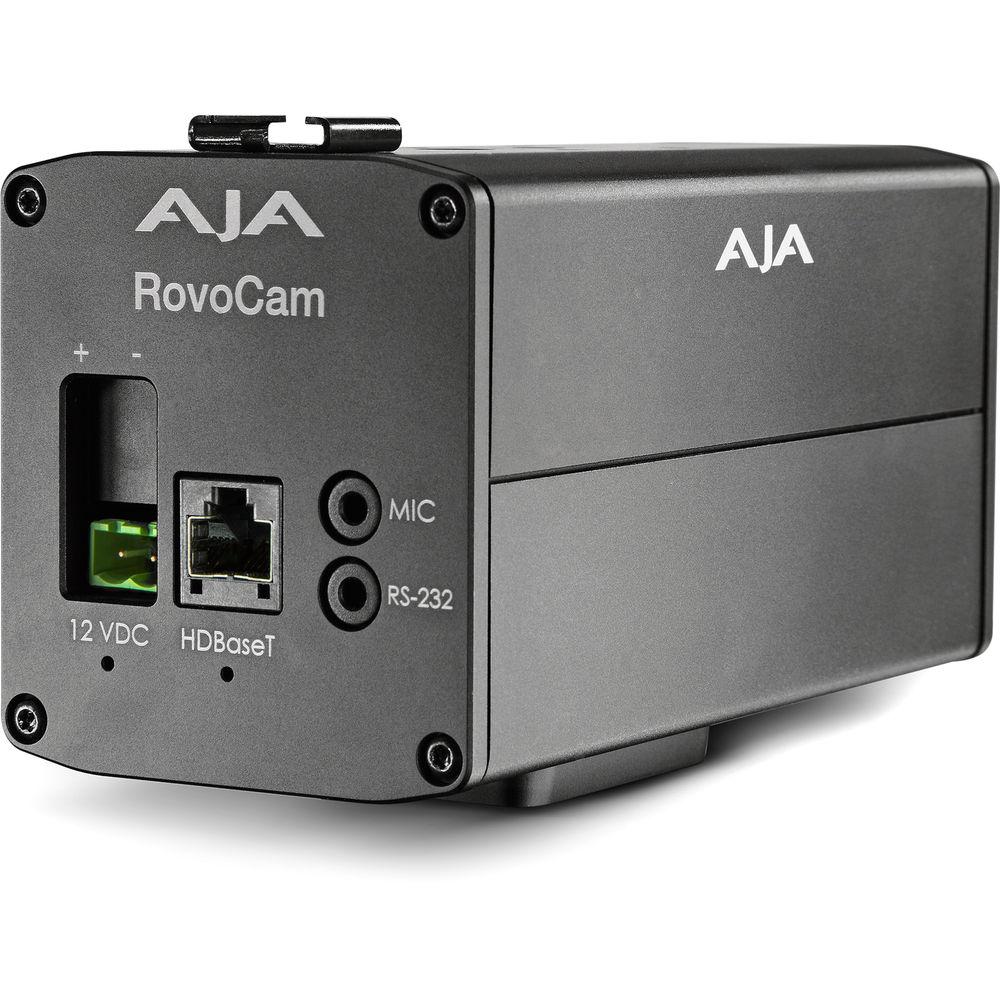

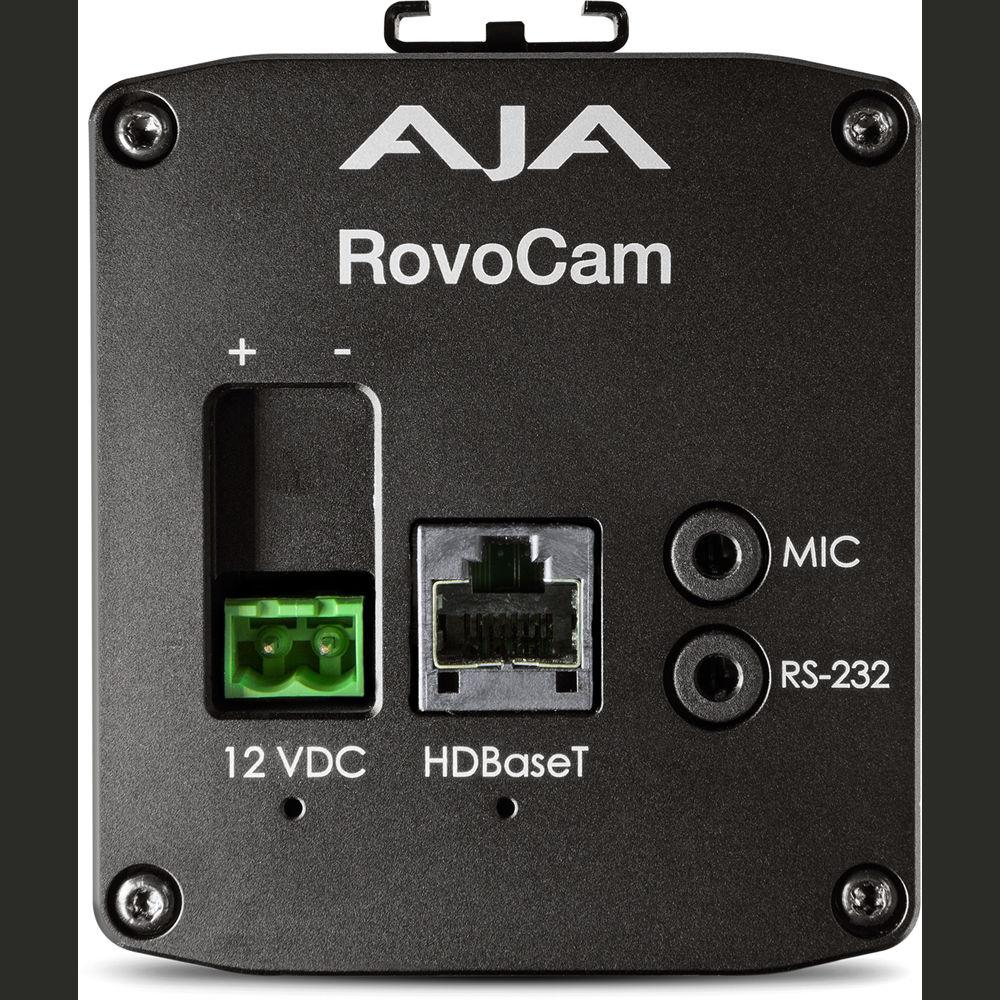

A single Cat 5e/6 cable is used to carry uncompressed video, 2-channel audio, RS-232 for VISCA camera control, and power. The separately available RovoRx-HDMI companion unit is the simplest receiving option for RovoCam, offering all necessary connections. For situations where you're not supplied power or RS-232 over HD-BaseT, the camera features does feature dedicated power and 3.5mm RS-232 connections, as well as a 3.5mm audio input for an plugging in an external microphone. A cold shoe mount on top of the camera streamlines external microphone mounting.

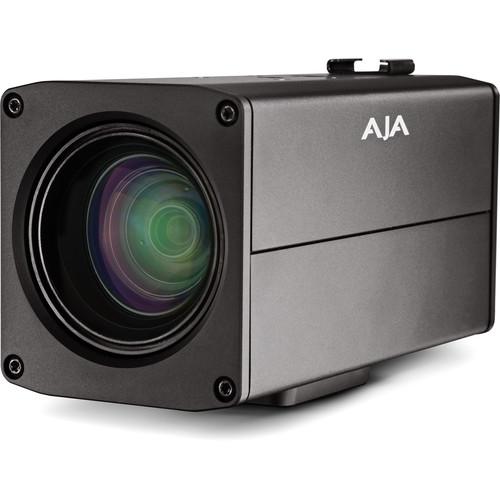

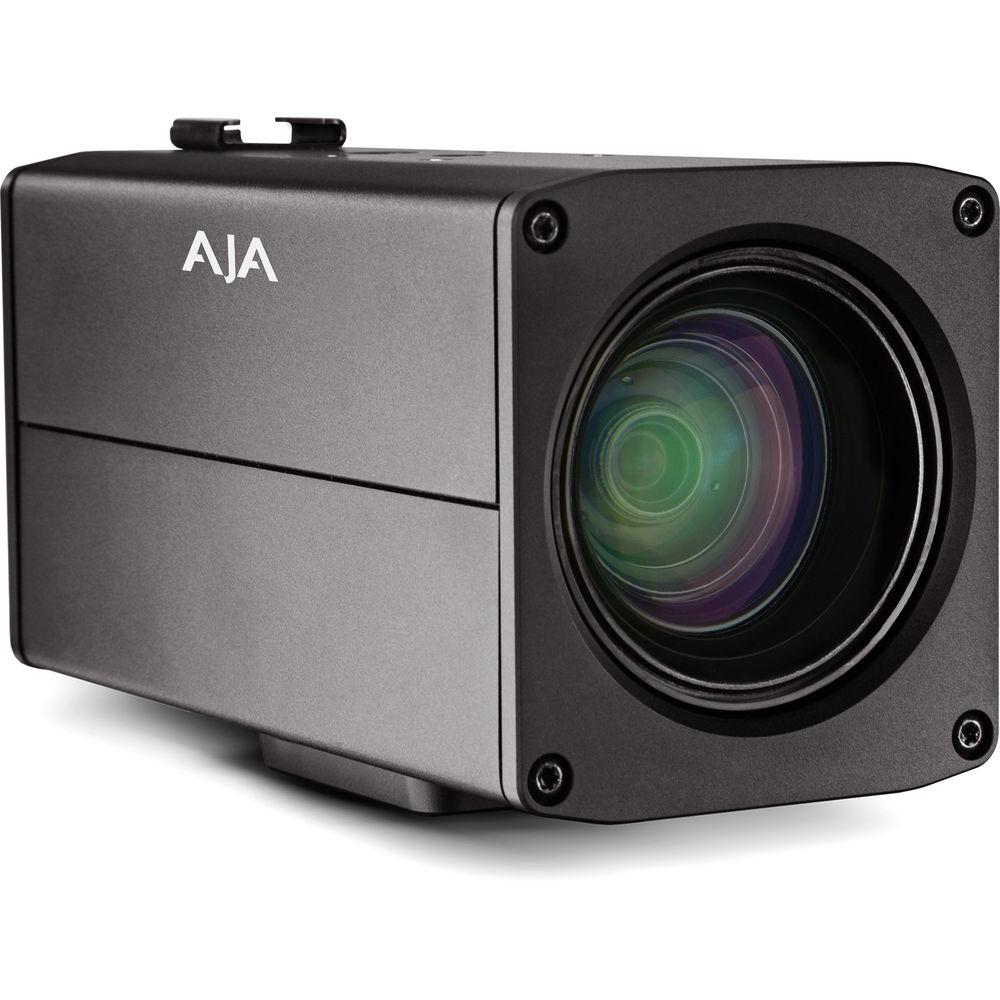

Housed in a rugged, machined-aluminum case, RovoCam is small in size and light in weight, making it easy to mount in wide range of scenarios, be it on a tripod using the included tripod mount, on stage in a conference room, or with a separately available security camera mount. For outdoor security use, it is compatible with Sony's SNC-UNIHB/1 Outdoor Housing. - HDBaseT
-
- Integrated HDBaseT transmitter
- Passes UltraHD/HD video, 2-channel audio, RS-232 control, and power to the unit over a single Cat 5e/6 cable
- Distances up to 328'
- UltraHD Video
-
- Sony FCB-ER8300 camera module
- 1/2.3"-type, backside-illuminated 8.9 megapixel CMOS sensor
- UltraHD (3840 x 2160) at 25/29.97 fps
- 1080p, 1080i, and 720p at 50/59.94 fps
- Image Processor
-
- Noise reduction (2D/3D)
- Visibility Enhancer ICR (Day and Night) Slow AE
- High Sensitivity
- Gamma
- Character Generator
- Defog
- Color Enhancement Picture Effect
- Spherical Privacy Zone Masking
- E-Flip
- 12x Sony Zoom Lens
-
- Sony optics
- 12x of optical zoom
- 20x Sony Super Resolution Zoom
- Manual and autofocus supported; controlled remotely via Sony's VISCA protocol
- Camera Control
-
- Flexible software and hardware support
- Supports Sony's VISCA protocol over RS-232 carried over a Cat 5e/6 cable through HDBaseT, or via a local 3.5mm RS-232 connector
- Housing
-
- Rugged and durable machined-aluminum case
- Small and lightweight
- Tripod mount included
- Shoe mount
- Compatible with optional Sony SNC-UNIHB/1 Outdoor Housing
- RovoRX-HDMI
-
- Optional companion HDBaseT receiver
- Integrated HDMI video and audio outputs
- Supports uncompressed video, audio, power, and control over single Cat 5e/6 cable
In the Box AJA RovoCam Integrated 4K/HD Camera with HDBaseT Tripod Mount Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA RovoCam Integrated 4K HD Camera with HDBaseT in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA RovoCam Specs | Camera | Sony FCB-ER8300 module | | Sensor | 1/2.3" 8.93MP BSI CMOS | | Video Formats | 3840 x 2160p / 25, 29.97 fps
1920 x 1080p / 50, 59.94 fps
1920 x 1080i / 50, 59.94 fps
1280 x 720p / 50, 59.94 fps
720 x 480p / 59.94 fps
720 x 576p / 50 fps | | Pixel Format | YUV 4:2:2
RGB 4:4:4 | | Focal Length | 3.9 to 46.8 mm | | Maximum Aperture | f/1.8 to 2.0 | | Horizontal Angle of View | 70.7° (wide) to 6.2° (tele) | | Zoom | Optical: 12x
Intelligent (Sony Super Resolution Zoom): 20x for UHD, 24x for HD (when combined with optical zoom) | | Lens Control | Zoom, focus, iris, IRCS | | White Balance | Auto, ATW, Indoor, Outdoor, One Push, Manual, Sodium lamp | | Focus | Auto, Manual, One push trigger mode | | Connectivity | 1 x HDBaseT (RJ-45) (requires RovoRX-HDMI Receiver unit) | | Maximum Video Transmission Range | Cat 5e: 230' (70 m)
Cat 6a: 328' (100 m) | | Analog Audio Input | 1 x 3.5mm TRS input with 3V Plug-in Power | | RS-232 Control | 1 x 3.5mm TRS for VISCA camera control RS-232 can also pass the control from the RovoRx-HDMI unit | | Power | Power over HDBaseT or 2-pin terminal block
10 to 12 VDC, 0.6A max
8 W max. (6 W typical) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 5.9 x 2.8 x 3.6" (7.1 x 14.99 x 9.14 cm), including tripod mount and cold shoe | | Weight | 2.2 lb (1 kg) | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 9.3 x 7.3 x 5.4" |
