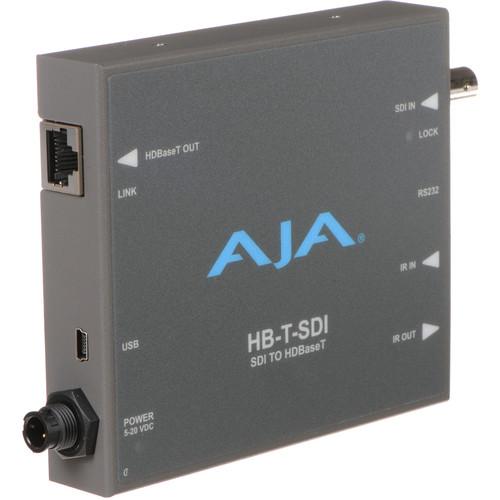

Product description The SDI to HDBaseT Transmitter from AJA is a transmitter that extends SDI signals up to 328' over a Cat 5 cable, utilizing the HDBaseT protocol. Bi-directional IR and RS-232 for device control is supported. This transmitter can be used for fixed installation AV, digital signage, live events, post production/network/studio environments, and on-set. - Universal power supply includes international plug connections for use around the world
- Compact and portable to fit behind a monitor, in the back of a rack, or directly on a camera rig
UPC: 892448000755 In the Box AJA SDI to HDBaseT Transmitter DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters Mini-Config Software Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA SDI to HDBaseT Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA HB-T-SDI Specs | Video Formats | 2048 x 1080p (2K) at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080p (HD) at 23.98, 24, 25, 29.97, 50, 59.94, 60
1080i (HD) at 25, 29.97, 30
720p (HD) at 25, 29.97, 50, 59.94, 60
625i (SD)
525i (SD) PsF formats are converted to progressive outputs over the HDBaseT link | | Video Input | 1 x 3G-SDI port | | Video Output | 1 x HDBaseT, RJ45 port 4K/UltraHD signals require Cat 6a to achieve 328' cable run (HD signals can run the full 328' on Cat 5e cable). | | Distance | Cat 5e 230' / 70 m
Cat 6a 328' / 100 m | | Audio Input | 8 channels (4 pairs) of SDI embedded audio supported
Select from 16 channels (8 pairs) | | Audio Output | 1 x HDBaseT embedded audio port | | RS-232 | 1 x 3.5 mm TRS input for RS-232/VISCA bidirectional signals | | IR | 1 x 1/8" / 3.5 mm TRS input for IR input
1 x 1/8" / 3.5 mm TRS input for IR output | | USB | 1 x USB port | | Power | 5 - 20 VDC regulated, 9 W max.
100 - 240 VAC, 50/60 Hz universal input | | Operating Temperature | 0 to 40°C / 32 to 104°F | | Storage Temperature | -40 to 60°C / -40 to 140°F | | Operating Relative Humidity | 10-90% noncondensing | | Operating Altitude | Up to 10,000' / 3000 m | | Dimensions | 4.0 x 4.6 x 1.0" / 10.2 x 11.7 x 2.5 cm | | Weight | 0.6 lb / 0.3 kg | | | | Package Weight | 1.44 lb | | Box Dimensions (LxWxH) | 7.2 x 5.7 x 4.2" |
