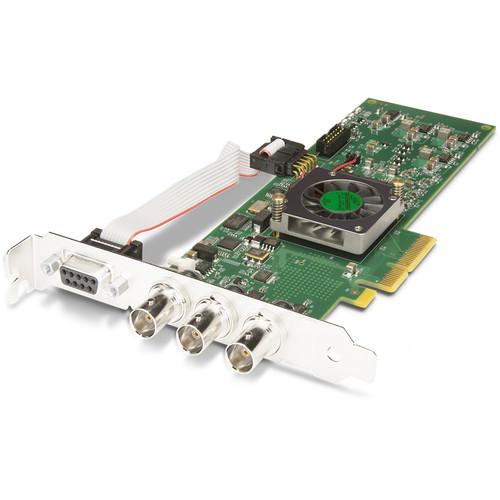

Product description The Single-Channel 3G-SDI 2K/HD Input/Output Card from AJA is designed for broadcast, post and ProAV, as well as OEM developers. It supports a playback resolution of up to 2048 x 1080p 60 fps and supports capture, monitoring, and/or playback with software applications from AJA, Adobe, Avid, Apple, Telestream, and SDK support. The KONA 1 enables simultaneous monitoring during capture (pass-through) and includes full-size SDI ports supporting 3G-SDI formats, embedded 16-channel SDI audio inputs/outputs, a Genlock with reference/LTC input, and a RS-422 port. - Provides 3G-SDI support for robust compatibility with ingest, editing, and visual effects applications
- Reference and LTC spigots provide the frame stability and time code-based reliability you need for broadcast, production, ProAV, and creative finishing projects
- Supports macOS, Windows, and Linux
- The developer program allows partner companies to incorporate AJA products into their systems
- ANC capture and processing
- 8-/10-Bit YCbCr and RGB framebuffer formats
In the Box AJA Single-Channel 3G-SDI 2K/HD Input/Output Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA Single-Channel 3G-SDI 2K HD Input Output Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA Kona 1 Specs | Video Formats | 2048 x 1080p (2K) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2048 x 1080PsF (2K) 23.98, 24, 25
1080i (HD) 50, 59.94, 60
1080PsF (HD) 23.98, 24, 25, 29.97, 30
1080p (HD) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
720p (HD) 50, 59.94, 60
625i (SD) 50
525i (SD) 59.94 | | Digital Video Standard | SMPTE-259/292/296/424/425, 8- / 10- / 12-Bit | | Digital Audio Format | 16-Channel 24-Bit SDI Embedded, 48 kHz Synchronous | | Timecode Support | Analog Color Black and HD Tri-Level Sync | | Connectors | 1 x BNC, 3G-SDI Digital Video Input
1 x BNC, 3G-SDI Digital Video Output
1 x BNC, LTC Timecode Input
1 x 9-Pin Sub-D, RS-422 Control Port | | Electrical Input | 2-Lane PCIe 2.0 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Relative Humidity | 10-90% Non-Condensing | | Operating Altitude | Up to 10,000' / 3000 m | | Dimensions | 0.88 x 7.38 x 4.75" / 22.36 x 187.46 x 120.65 mm | | Weight | 0.3 lb / 0.2 kg | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 10.0 x 6.2 x 3.0" |
