User Manual for AJA T-TAP Click to enlarge the picture
Contents of the user manual for the AJA T-TAP
- Product category: Signal Converters AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Signal Converters
|
User manual for the AJA T-TAP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|

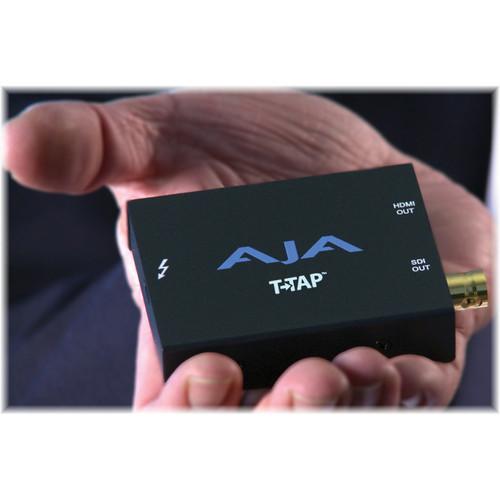

Product description The AJA T-TAP captures 10-bit SD/HD/2K video and embedded audio from a Thunderbolt-enabled computer and outputs it in the same broadcast-quality to professional and consumer monitors and recording gear by SDI and HDMI.
Both outputs can be used simultaneously at all times. The HDMI out can be connected directly into 3D HDMI monitors for 3D stereoscopic monitoring. Both outputs also support full 24-bit 8-channel embedded audio, allowing for multi-channel playback such as 5.1 / 7.1 mixes.
T-TAP gets its power from the Thunderbolt connection to a computer and thus doesn't require any additional power at all, further supporting the portability of this device that conveniently fits into your hand. - Broadcast Quality Output from a Computer
-
- Captures and outputs 10-bit SD/HD/2K video and embedded audio
- Outputs to 3D, professional and consumer monitors and recording gear
UPC: 892448000298 In the Box AJA T-TAP Limited 3-Year Warranty User Manual PDF 1.3mbdytaxysadvufdrwfaezy Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA T-TAP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA T-TAP Specs | Input | Thunderbolt x1 | | Output | SDI x1
HDMI 1.3 x1 (compressed 3D support) | | Supported Video Formats | 8-bit 4:2:2 and 10-bit 4:2:2 in the following formats:
525i 29.97
625i 25
720P 50,59.94,60
1080i 25, 29.97, 30
1080PsF 23.98, 24, 25, 29.97
1080p 23.98, 24, 25, 29.97
2K 1080p 23.98, 24, 25
2K 1080PsF 24, 25 | | Audio Support | 24-bit SDI embedded audio, 8-channel, 48kHz
24-bit HDMI embedded audio, 8-channel, 48kHz | | Dimensions | 2.28 x 2.95 x 1.18" (5.8 x 7.5 x 3 cm) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.4 x 4.1 x 0.8" |
