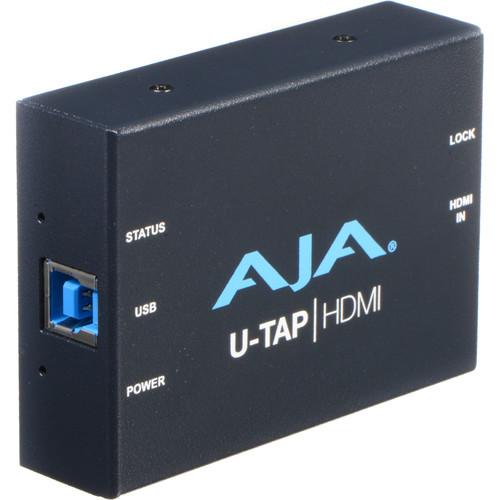

User Manual for AJA U-TAP USB 3.0 3.1 Gen 1 Powered HDMI Capture Device Click to enlarge the picture
Contents of the user manual for the AJA U-TAP USB 3.0 3.1 Gen
- Product category: Computer Hardware AJA
- Brand: AJA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AJA Computer Hardware
|
User manual for the AJA U-TAP USB 3.0 3.1 Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AJA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AJA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AJA product will considerably shorten its lifespan!
|
Product description The U-TAP USB 3.0/3.1 Gen 1 Powered HDMI Capture Device from AJA is suitable for use in the field, on set, or at a studio where USB connectivity provides a quick and easy way to obtain HDMI sources for capture without the need to install additional software drivers. This compact capture device is bus powered and supports frame rates up to 1080p60. This frame rate makes it useful for HD high frame rate (HFR) projects, live events, and fast-moving subjects. - USB 3.0/3.1 Gen 1
- USB 3.0 and 3.1 Gen 1 feature a maximum throughput of 5 Gb/s. USB 3.0 and USB 3.1 Gen 1 are synonymous.
- Connections
- U-TAP HDMI features USB 3.0 host interface and HDMI input.
- Software Compatibility
- U-TAP HDMI is UVC and UAC compatible on Mac, Windows, and Linux, negating the need for additional drivers. This ensures compatibility with a wide range of professional software applications and a seamless integration between the native software.
UPC: 892448000083 In the Box AJA U-TAP USB 3.0/3.1 Gen 1 Powered HDMI Capture Device Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA U-TAP USB 3.0 3.1 Gen 1 Powered HDMI Capture Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA U-TAP-HDMI Specs | Video Formats | Video:
1920 x 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920 x 1080i: 25, 29.97, 30
1280 x 720p: 50, 59.94, 60
625i: 25
525i: 29.97
Computer:
1920 x 1200p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1680 x 1050p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1600 x 1200p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1280 x 1024p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1280 x 960p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1024 x 768p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
800 x 600p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
720 x 576p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
640 x 480p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
Scaled:
1920 x 1200p: 25, 29.97, 30, 50, 59.94, 60
1920 x 1080p: 25, 29.97, 30, 50, 59.94, 60
1280 x 720p: 25, 29.97, 30, 50, 59.94, 60
1024 x 576p: 25, 29.97, 30, 50, 59.94, 60
856 x 480p: 25, 29.97, 30, 50, 59.94, 60
768 x 576p: 25, 29.97, 30, 50, 59.94, 60
720 x 576p: 25, 29.97, 30, 50, 59.94, 60
720 x 480p: 25, 29.97, 30, 50, 59.94, 60
640 x 480p: 25, 29.97, 30, 50, 59.94, 60
640 x 360p: 25, 29.97, 30, 50, 59.94, 60 | | Video Input Digital | HDMI v1.4a, 24-Bit/Pixel, RGB or YUV | | Audio Input Digital | 2-Channel, HDMI Embedded Audio, 48 kHz Sample Rate | | Host Interface | USB 3.0/3.1 Gen 1/2.0 UVC/UAC Compliant | | Software Compatibility | Windows/Mac:
Skype, Adobe Connect, GoToMeeting, Webex, Wirecast, TwitchTV, Ustream, YouTube Live, Flash Media Live Encoder, TeamViewer
Mac Only:
FaceTime, QuickTime, and Screenflow
Wndows Only:
Microsoft Lync, vMix, ProPresenter, and XSplit
Windows/Mac/Linux:
VLC, OBS, Google Hangouts | | Power | 5 V USB Bus Powered; 6.5 W Maximum | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Relative Humidity | 10 to 90% Non-Condensing | | Operating Altitude | Up to 10,000' / 3000 m | | Dimensions | 3.3 x 2.4 x 1.0" / 8.4 x 6.1 x 2.5 cm | | Weight | 0.3 lb / 0.2 kg | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.4 x 4.1 x 2.1" |
