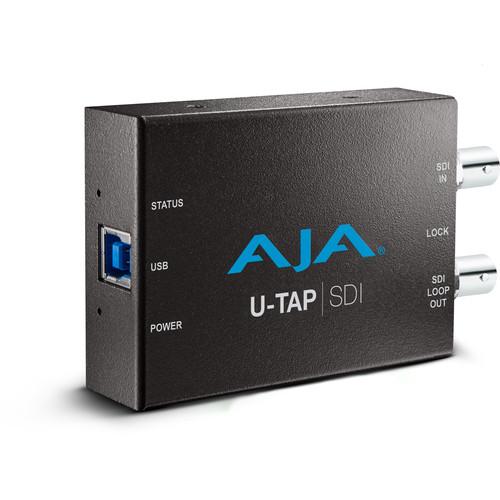

Product description The U-TAP USB 3.0 Powered SDI Capture Device from AJA is suitable for use in the field, on set, or at a studio where USB connectivity provides a quick and easy way to obtain SDI sources for capture, without the need to install additional software drivers. This compact capture device is bus-powered and supports frame rates up to 1080p60. This frame rate makes it useful for HD High Frame Rate (HFR) projects, live events, and fast moving subjects. U-TAP also provides an SDI looping output, allowing you to loop through the source SDI signal to monitors, switchers, and more. - Connections
- U-TAP SDI features USB 3.0 host interface, HD-SDI input, and SDI out (looping output)
- Software Compatibility
- U-TAP SDI is UVC and UAC compatible on Mac, Windows and Linux, negating the need for additional drivers. This ensures compatibility with a wide range of professional software applications and a seamless integration between the native software.
UPC: 892448000076 In the Box AJA U-TAP USB 3.1 Gen 1 Powered SDI Capture Device Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA U-TAP USB 3.1 Gen 1 Powered SDI Capture Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA U-TAP-SDI Specs | Video Formats | Video:
HD: 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
HD: 1920 x 1080i 25, 29.97, 30
HD: 1280 x 720p 50, 59.94, 60
SD: 625i 25
SD: 525i 29.97
Scaled:
1920 x 1200p 25, 29.97, 30, 50, 59.94, 60
1920 x 1080p 25, 29.97, 30, 50, 59.94, 60
1280 x 720p 25, 29.97, 30, 50, 59.94, 60
1024 x 576p 25, 29.97, 30, 50, 59.94, 60
856 x 480p 25, 29.97, 30, 50, 59.94, 60
768 x 576p 25, 29.97, 30, 50, 59.94, 60
720 x 576p 25, 29.97, 30, 50, 59.94, 60
720 x 480p 25, 29.97, 30, 50, 59.94, 60
640 x 480p 25, 29.97, 30, 50, 59.94, 60
640 x 360p 25, 29.97, 30, 50, 59.94, 60 | | Video Input Digital | 1 x BNC; 3G-SDI, SMPTE-259/292/424, 4:2:2 | | Video Loop Output | 1 x 3G-SDI via BNC | | Audio Input Digital | 2-channel, SDI embedded audio, 48 kHz sample rate | | Host Interface | USB 3.0/2.0 UVC/UAC compliant | | Software Compatibility | PC/Mac:
Skype, Adobe Connect, GoToMeeting, Webex, Wirecast, TwitchTV, Ustream, YouTube Live, Flash Media Live Encoder, TeamViewer
Mac Only:
FaceTime, QuickTime, and Screenflow
PC Only:
Microsoft Lync, vMix, ProPresenter, and XSplit
PC/Mac/Linux:
VLC, OBS, Google Hangouts | | Power | 5 V USB bus powered; 6.5 W maximum | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Relative Humidity | 10 to 90% non-condensing | | Operating Altitude | Up to 10,000' (3,000 m) | | Dimensions | 4.1 x 2.4 x 1.0" (10.3 x 6.1 x 2.5 cm) | | Weight | 0.3 lb (0.2 kg) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 5.4 x 4.3 x 2.1" |
