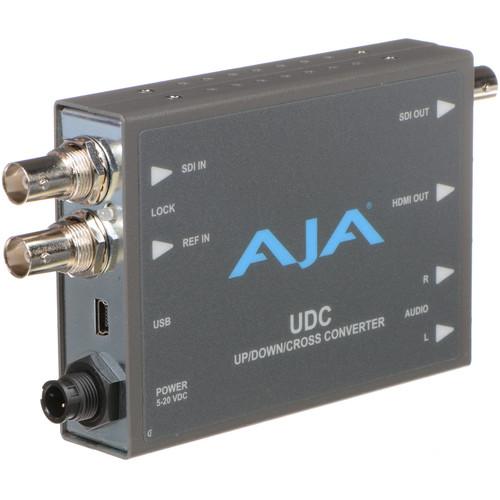

Product description AJA's Up/Down/Cross Converter is a broadcast quality Up/Down/Cross Mini-Converter which can convert between SD, HD, and 3G video formats. Using the same AJA industry leading conversion technology as in our model FS2, the UDC provides very high quality conversions in a cost-effective package. I/Os include SD/HD/3G SDI Input and Output, HDMI output, and 2-channel RCA style audio output. The UDC can be controlled by local dipswitches with additional control available via USB and AJA's MiniConfig application. A Reference Input allows the UDC to be locked to a local reference. - Converts between SD, HD, and 3G formats
- Very high quality conversions
- 16-channel embedded SDI audio input
- 16-channel embedded SDI audio output
- 8-channel HDMI audio output
- Two RCA-style analog outputs at -10dBV (nominal)
- Configure via Dipswitch or USB port and supplied MiniConfig software
UPC: 892448000281 In the Box AJA UDC Up/Down/Cross Converter DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters buesewqvafduzrsbaa Limited 5-Year Warranty User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA UDC Up Down Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA UDC Specs | SDI Input & Output | 1 x SD/HD/3G-SDI input (auto-selected), SMPTE-292/296/424 (BNC connector)
1 x SD/HD/3G-SDI output, SMPTE-292/296/424 (BNC connector) | | Formats | 525i59.94, 625i50
1080i 50/59.94
720p 23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/59.94/60
1080psf 23.98/24/25/29.97/30 | | Reference Input | Color Black
Tri-Level sync | | HDMI Output | 10-bit HDMI v1.4a | | Audio I/O | 16-channel embedded SDI audio input
16-channel embedded SDI audio output
8-channel HDMI audio output
2 RCA-style analog outputs at -10dBV (nominal) | | HDCP | The UDC does not encode the HDMI output with HDCP encryption. By definition, HD-SDI inputs to the UDC are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs | | User Controls | USB port used with supplied cable and MiniConfig software application to configure device via PC/Mac | | Power | 5 VDC regulated, 3 W | | Dimensions | 5.8 x 3.1 x 1" (147 x 79 x 25 mm) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 9.8 x 7.4 x 2.9" |
