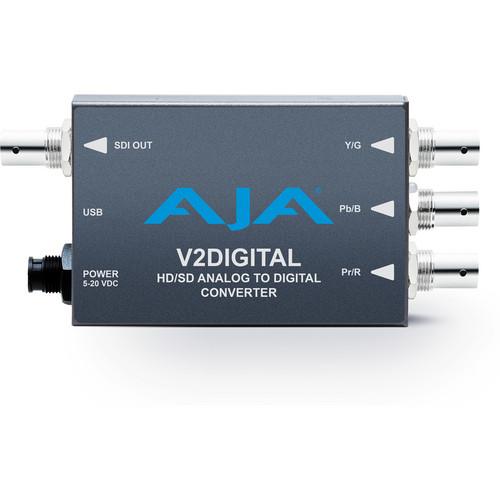

Product description The V2Digital Component/Composite Analog to HD/SD-SDI Mini-Converter from AJA provides a 10-bit conversion of component or composite analog video to SDI at either SD or HD resolutions. It utilizes a full 10-bit data path and 2x oversampling to ensure a high-quality conversion. Its low power consumption and a compact size, makes it suitable for use on set or in AV installations that integrate different signal types.
The V2Digital supports NTSC, PAL, 720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, and 1080psf at 23.98/24/25 Hz. The converter accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs, and NTSC/PAL or S-Video composite inputs. A 4-line Adaptive Comb Filter provides high-quality decoding of composite sources. The comb filter can be switched to 2-line or notch modes for minimum delay requirements.
Configure the V2Digtal using AJA's free MiniConfig software for Mac or PC over the USB 2.0 connection. The software provides an easy-to-use graphical interface with detailed information about input and output formats as well as all configuration parameters. Additionally, external DIP switches on the device let you configure the V2Digital without computer access. A universal 5 VDC power supply comes included. - Additional Features
-
- AGC Mode
- Color Bar Generator
- Uses 5-20 VDC power
UPC: 892448000267 In the Box AJA V2Digital Analog to HD/SD-SDI Mini-Converter DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters eczqzewd Limited 5-Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AJA V2Digital Analog to HD SD-SDI Mini-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAJA V2DIGITAL Specs | Formats | 1080psf 23.98/24/25 Hz
1080i 50/59.94/60 Hz
720p 50/59.94/60 Hz
525i/625i 50/59.94/60 Hz | | Inputs | BNC:
HD component YPbPr, RGB (SMPTE-274)
SD component (Betacam, EBU-N10), composite, YC (S-Video) | | Output | 1 x BNC, HD/SD-SDI (SMPTE-259/292/296M)
1 x USB 2.0 (for connection to Mac or PC) | | Dip Switches | Control (Local/Remote)
Component/Composite (SD oOnly)
Format (YPbPr/YC or RGB)
Pedestal Present (on/off) (SD only)
| | Power | 5 to 20 VDC, 3 watts | | Dimensions | 5.1 x 2.4 x 1.0" (13.0 x 6.1 x 2.5 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 7.4 x 5.8 x 3.1" |
