User Manual for Akai Professional MPC Live - Standalone Music Production Center with Sampler and Sequencer Click to enlarge the picture
Contents of the user manual for the Akai Professional MPC Live - Standalone
- Product category: Sampling Workstations Akai Professional
- Brand: Akai Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Akai Professional Sampling Workstations
 |
User manual for the Akai Professional MPC Live - Standalone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Akai Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Akai Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Akai Professional product will considerably shorten its lifespan!
|
Product description Akai Professional: MPC Live Read More - MPC Live - Product Overview Video

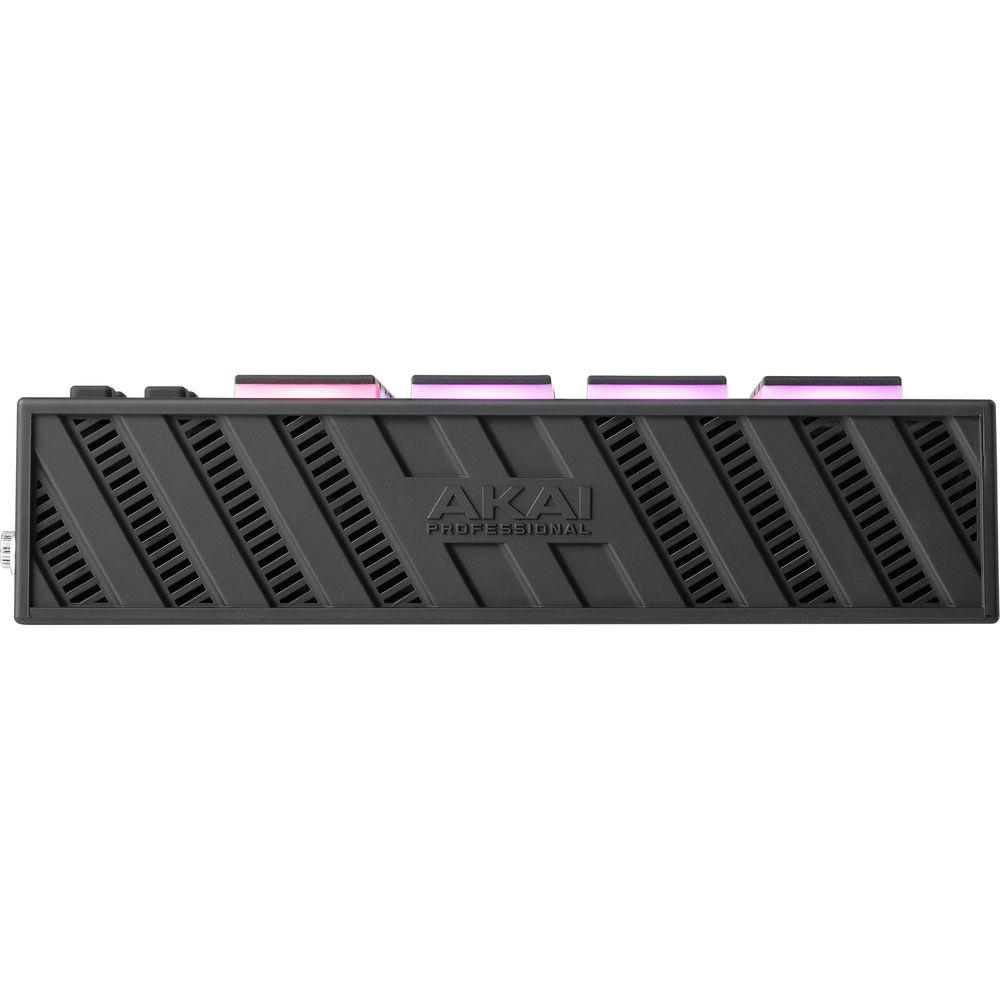

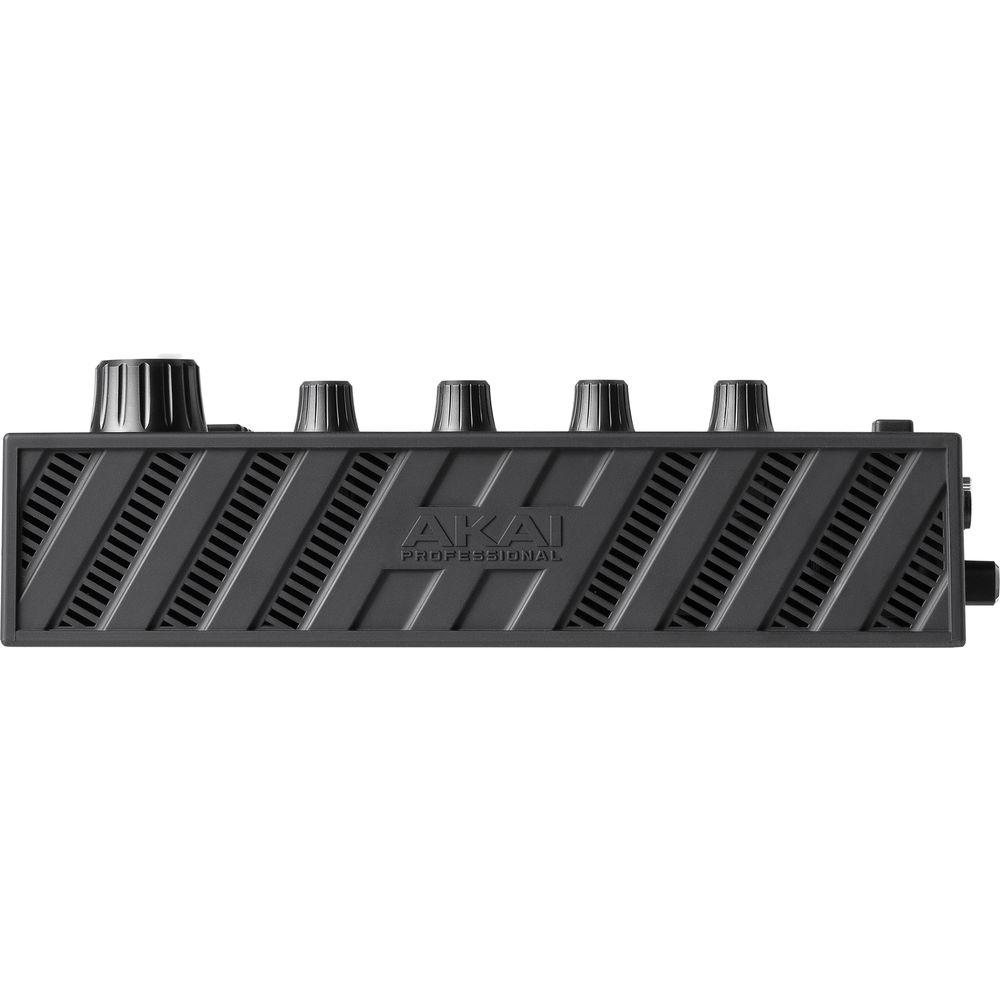

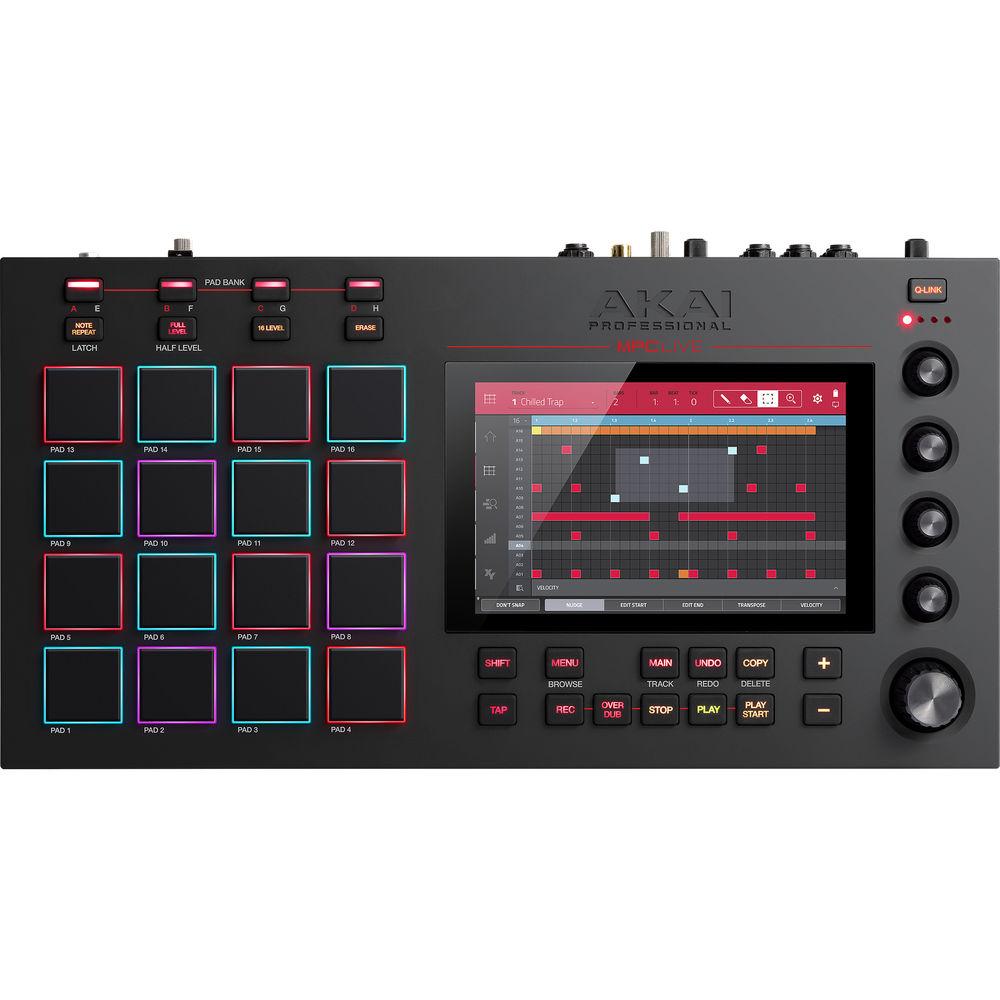

The MPC Live from Akai Professional is a complete standalone music production workstation with an integrated sampler, sequencer, 7" touchscreen, 16 velocity-sensitive RGB-backlit pads, and 4 endless encoder "Q-Link" controls.
The MPC Live incorporates a powerful 1.8 GHz quad-core ARM Cortex A17 processor, 2GB of RAM, and 16GB of storage to power the MPC 2.0 software without the need to connect to a host computer. What's more, the unit can operate in Control Mode, which further expands the functionality by connecting to a computer to operate the same MPC 2.0 standalone software as a plugin in your favorite DAW. The MPC 2.0 software has added some powerful features including audio track recording, real-time time-stretching (audio warping), pitch shifting, audio and MIDI drag-and-drop, clip program mode for clip-launching, an updated mixer layout with advanced signal routing, and enhanced Q-Link control.
The MPC Live is pre-installed with "The Vault 2.0"—a 10GB library of world-class sounds—featuring samples and kits from top-notch sound-design companies including Capsun Audio, MVP Loops, CR2 Records, as well as Akai's own high-quality content. Should you wish to incorporate your own samples and recordings, the MPC Live offers a 2.5" SATA drive connector, allowing you to install an optional SSD or HDD hard drive. Content can easily be uploaded and/or recorded to the full-sized SD card or USB thumb drives.
The full-color 7" multi-touch screen offers quick and easy visual feedback and editing capabilities. View samples with "pinch" zoom, trim start and end times, and adjust and process samples on the fly. The XYFX allow you to control multiple effect parameters simultaneously, while the sequencer and mix page make short work of entering/deleting notes, editing values, and adjusting mix parameters.
The rear panel offers a comprehensive set of inputs and outputs including two 1/4" inputs and two RCA inputs with a turntable ground for sampling direct from vinyl, while the six line-level 1/4" outputs are arranged in three stereo pairs. For MIDI I/O, the unit offers two MIDI inputs and two MIDI outputs on full-sized 5-pin DIN connectors. Connect a computer via the USB Type-B connection, while two USB Type-A connectors allow for the integration of MIDI controllers to further expand your MIDI inputs. A dedicated 1/8" headphone output is available for monitoring the Master L/R outputs. The MPC Live can be powered via the internal Lithium-ion battery for up to four hours, or by the included power adapter. The unit also ships with a USB cable. -
- Standalone MPC – no computer required
- 7" full-color multi-touch display
- Also acts as a control surface for MPC 2.0 software
- Internal, rechargeable lithium-ion battery
- Turntable (RCA) inputs with ground peg
- 16GB of on-board storage (over 10GB of sound content included)
- User-expandable 2.5” SATA drive connector (SSD or HDD)
- 2 pairs of MIDI inputs and outputs
- 2GB of RAM
- SD Card slot
- 2 USB Type-A 3.0 slots for thumb drives or MIDI controllers
- Ableton Link and Wi-Fi will be supported in future updates
UPC: 694318020616 In the Box Akai Professional MPC Live - Standalone Music Production Center with Sampler and Sequencer Power Adapter USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Akai Professional MPC Live - Standalone Music Production Center with Sampler and Sequencer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAkai Professional MPC LIVE Specs | Pads | 16 x Velocity- and pressure-sensitive pads, RGB-backlit
8 x Banks accessible via Pad Bank buttons | | Knobs | 4 x 360° Touch-sensitive Q-Link knobs for parameter adjustment
4 x Q-Link Knob columns accessible via Q-Link button
1 x 360° Encoder for display navigation and selection via push | | Buttons | 22 x Dedicated function buttons | | Display | Diagonal: 6.9" (176 mm)
W x H: 5.9 x 3.7" (150 x 93 mm)
Full-color LED-backlit display with touch interface | | CPU | Processor: 1.8 GHz quad-core ARM Cortex A17 processor
RAM: 2 GB
Storage: 16 GB (user storage, 10 GB pre-installed content), 4 GB (MPC operating system) | | Connections | 2 x 1/4" (6.35 mm) TRS inputs (1 stereo pair)
6 x 1/4" (6.35 mm) TRS outputs (3 stereo pairs)
1 x 1/8" (3.5 mm) stereo headphone output
2 x RCA inputs (1 stereo pair)
2 x 5-pin MIDI inputs
2 x 5-pin MIDI outputs
2 x USB Type-A ports
1 x USB Type-B port
1 x SD card slot
1 x power adapter input | | System Requirements | Controller ModeWindows 8.1 or newer
Mac OS X 10.9.5 or newer
MPC 2.0: Minimum 2GB free disk space (20GB for all content), Minimum 4GB RAM (8GB recommended), Minimum Dual-core 2.5GHz CPU | | Power | Power Adapter: 6 VDC, 3 A, center-positive
Battery: Lithium-ion, rechargeable, up to 4 hours of battery life | | Dimensions (W x D x H) | 16.7 x 8.8 x 2.7" (424.2 x 223.5 x 68.6 mm) | | Weight | 5.9 lb (2.7 kg) | | | | Package Weight | 9.1 lb | | Box Dimensions (LxWxH) | 21.1 x 11.0 x 4.9" |
