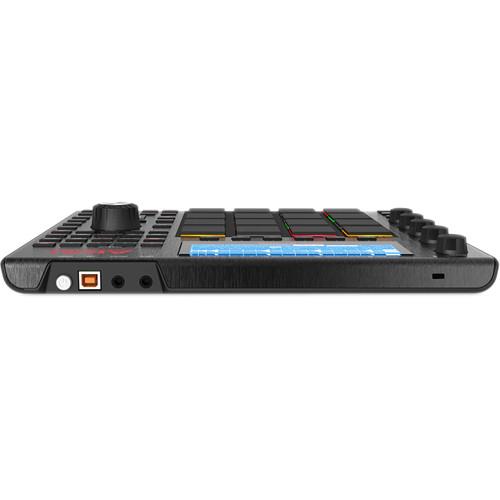

User Manual for Akai Professional MPC Studio Music Production Controller Click to enlarge the picture
Contents of the user manual for the Akai Professional MPC Studio Music Production
- Product category: Drum Pad Controllers Akai Professional
- Brand: Akai Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Akai Professional Drum Pad Controllers
 |
User manual for the Akai Professional MPC Studio Music Production contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Akai Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Akai Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Akai Professional product will considerably shorten its lifespan!
|
Product description Akai Professional: MPC Studio Black Music Production Controller Read More - David "Fingers" Haynes Meets the MPC Studio Black

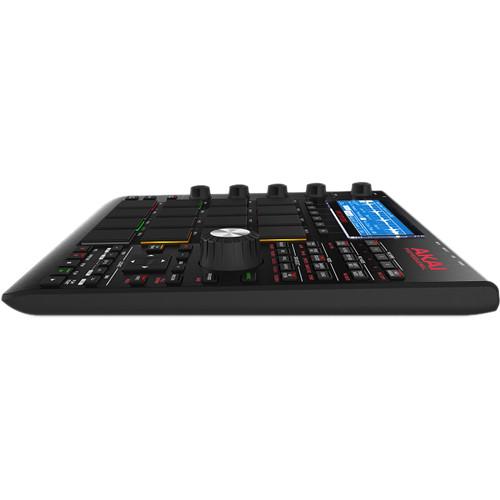

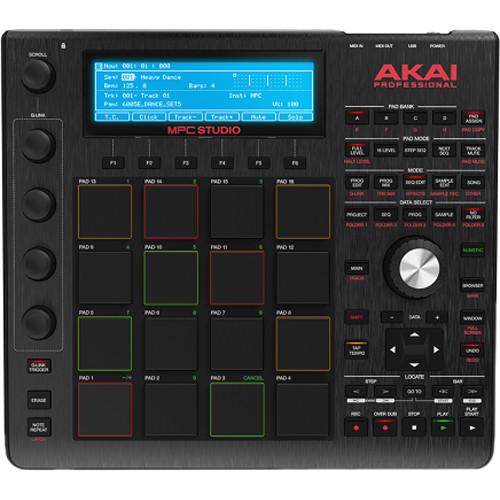

The black MPC Studio from Akai Professional fuses the legendary MPC layout and workflow with the power of a Mac or Windows computer. The system is a fully integrated hardware/software system using the classic MPC hardware controls coupled with the MPC Software that provides expandable production capabilities.
The system offers a streamlined experience with its under one-inch thick controller, that features low-profile controls and a brushed aluminum body, perfect for a portable laptop system. The software provides 128-track sequencing and a 7GB+ sound library, including all of the sounds of the classic MPC3000 + 2 MPC expansions and support for multiple sound formats. - Hardware
-
- Fuses legendary MPC production with the processing power of your computer

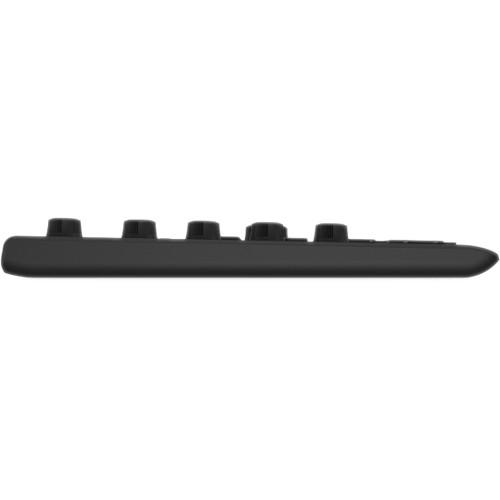

- Compact design is less than one-inch thick and fits easily into a laptop bag
- MPC Software for Mac and Windows with 128-track sequencing capability
- Sixteen backlit genuine MPC pads, legendary MPC workflow and MPC Swing
- USB-powered
- Brushed aluminum body
- Large LCD screen allows you to make tracks without having to look at your computer
- Four touch-sensitive knobs provide enhanced MPC software control

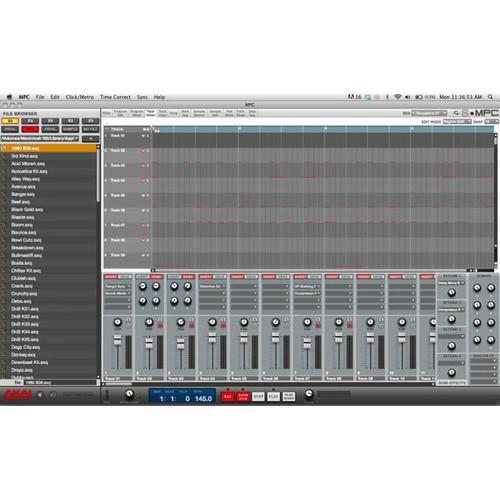

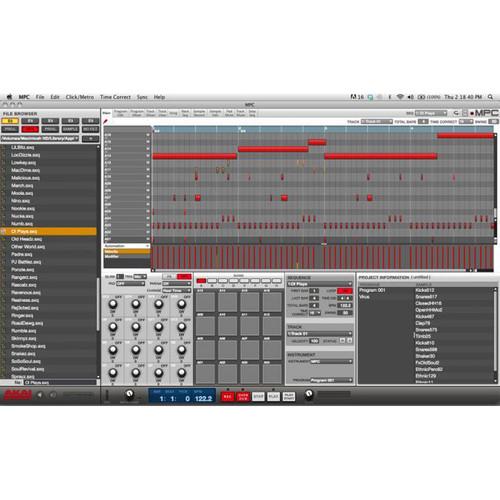

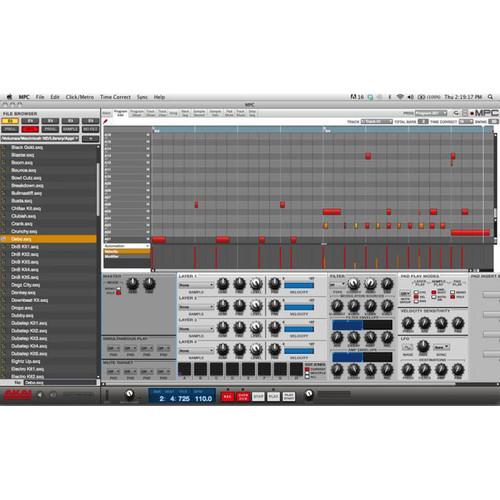

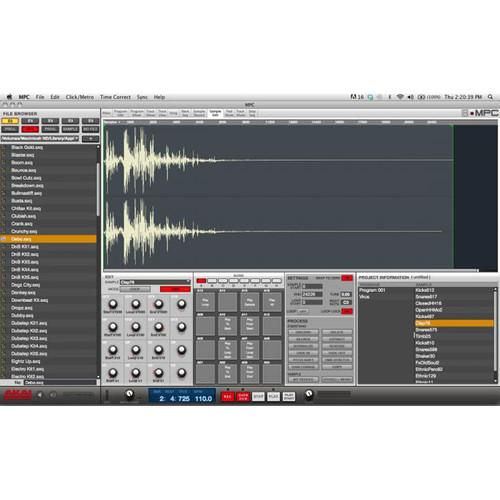

- MPC Software
-
- 128-track sequencing capability
- Massive 7GB+ sound library, including all of the sounds of the classic MPC3000
- Instant mapping and real-time adjustment of VST plug-ins
- Record each track as an MPC drum program, keygroup program, or VST plug-in
- Works alone as your main DAW or works seamlessly with your current studio as an Audio Units, RTAS, or VST plug-in
- Supports WAV, MP3, AIFF, REX and SND file formats
- Supports samples and sequences from any previous MPC
- Mac and Windows compatible

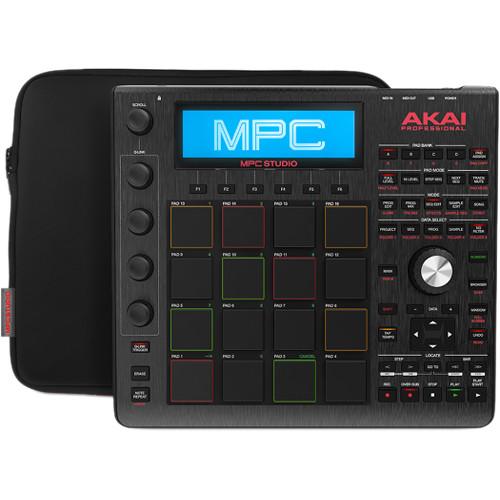

UPC: 694318018491 In the Box Akai Professional MPC Studio Music Production Controller (Black) 2 x MIDI Breakout Cables Software Download Card USB Cable Neoprene Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Akai Professional MPC Studio Music Production Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAkai Professional MPC Studio Specs | Sequencer | Maximum Events: Unlimited (based on CPU)
Resolution: 960 pulses per 1/4-note
Sequences: 128
Tracks per Sequence: 128
Drum Pad: 16 (velocity and pressure sensitive)
Drum Pad Banks: 8
Sync Mode: MIDI Clock, MIDI Time Code
Transport Controls: MIDI Machine Control | | Software | Polyphony: 64
Dynamic filtering: 1 State-Variable Filter per voice (up to 8 pole, depending on type)
Filter types: Low Pass, Band Pass, High Pass, Band Boost, Band Stop, Analog Modeling, Vocal Formant
Number of Programs: 128
Memory Capacity: System Dependent. 2 GB minimum (4 GB recommended)
Plug-in Supported as Host: VST (Mac / Windows), AU (Mac)
Plug-in Formats Available to Other DAWs: VST, AU (Mac Only)
Audio Files Supported: WAV, MP3, REX, AIFF, SND
Word Lengths Supported: 32- and 64-bit | | Effects | Program Effects: 4 Insert Slots per Pad, 4 Sends to Track Effects per Pad
Track Effects: 4 Inserts and 4 stereo Sends per Track
Master Effect: 4 Master Effect Slots Over 50 high-quality effects Included
Plug-in Formats Supported: VST (Mac / Windows), AU (Mac) | | MIDI | 1 x 5-pin DIN Input (on included breakout cable)
1 x 5-pin DIN Output (on included breakout cable) | | Display | 360 x 96-dot monochromatic backlit LCD | | Pads | 16x velocity- and pressure-sensitive pads, multicolor-backlit | | Buttons | 32x dedicated function buttons (26 backlit)
10x transport control buttons (3 backlit)
4x cursor buttons
6x multi-function ("soft") buttons | | Knobs | 1x Data Dial (selection and navigation)
4x Q-Link knobs, column configuration
1x Q-Link column selector (scroll) | | Power Requirements | USB bus power | | System Requirements | Mac: 2 GB RAM (4 GB recommended) Mac OS X 10.9 - 10.11
Windows: 2 GHz Pentium 4 or Celeron® compatible CPU or faster (multi-core CPU recommended)
2 GB RAM (4 GB recommended) Windows 8.1 and 10 (all 32- & 64-Bit) | | Dimensions (W x D x H) | 11.2 x 10.1 x 1.5" / 28.4 x 25.7 x 3.8 cm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 27.0 x 16.6 x 10.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
