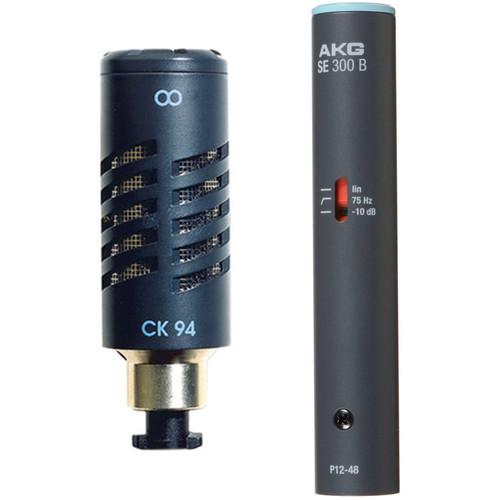

Product description The AKG Blue Line Series SE300B Power Module and CK94 Microphone Kit from B&H includes the AKG SE300B power module and the CK94 figure-of-eight microphone capsule. The kit can be used to capture audio and pick up sounds arriving from opposite directions simultaneously as in broadcast-interviews and roundtable applications. In addition, it is useful as a side microphone in an M/S stereo microphone setup. - AKG SE-300B Power Supply The AKG SE-300B is a power supply and signal output stage for all AKG Blue Line series microphone capsules. The power supply is designed as the back-bone of the Blue Line series, allowing a variety of interchangeable capsules to be used as applications change.The SE-300B is a lightweight, rugged unit with an output stage that preserves the integrity of the audio signal while providing a very low noise floor and high output gain. A preattenuation switch provides extra headroom and eliminates distortion caused by overload when reproducing excessively loud signals. A low frequency roll-off switch reduces low frequency noise caused by wind, ambiance, bad grounds etc. The SE-300B is powered with an external 9 to 52 V phantom power source.
- Blue Line Series Power Supply
- The SE-300B is designed for use with all AKG Blue Line series microphone capsules.
- Transformerless Output Stage
- Quiet noise-free signal at high output gain are a result of the transformerless output circuitry Incorporated in the SE-300B.
- Pad Switch
- A preattenuation pad switch enhances head room and prevents overload caused by excessively loud signals.
- Low Frequency Roll-Off
- A low frequency roll-off switch removes low frequency rumble and noise caused by wind, ambiance, etc.
UPC: 885038026822 - AKG CK94 Figure-Eight Microphone Capsule From the AKG Blue Line of modular microphone capsules, the AKG CK94 is a figure-eight pattern capsule with signal characteristics that allow the microphone to be used in a variety of applications. The miniature capsule features a flat wide frequency response of 20Hz to 20kHz allowing smooth accurate signal reproduction without coloration.The figure-eight polar pattern provides identical signal character at both sides of the capsule, while attenuating noise and ambiance at the off-axis (sides) of the microphone. The result allows the microphone to be used for ambiance, vocal, drum overhead capturing or M-S stereo style capturing when used in conjunction with a cardioid microphone. The CK94 is powered with the AKG SE-300B power supply.
- Figure-Eight Polar Pattern
- The figure-eight polar pattern provides identical signal character at both sides of the capsule, while attenuating noise and ambiance at the off-axis (sides) of the microphone.
- Flat Frequency Response
- The miniature capsule features a flat wide frequency response of 20Hz to 20kHz allowing smooth accurate signal reproduction without coloration.
In the Box - SE-300B Power Supply for Blue Line Microphone Capsules fzzfebxcwwfwetfew
- 2 Year Warranty
- CK94 Blue Line Series Figure-Eight Microphone Capsule
Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG Blue Line Series SE300B Power Module and CK94 Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AKG SE-300B Power Supply
| Frequency Response | 20Hz to 20kHz | | Pad | 10 dB, switchable | | Filter Type | Low Frequency Roll-Off: 12 dB/octave at 75 Hz | | Impedance | < 200 ohms | | Recommended Load Impedance | > 1000 ohms | | Connector | 3-pin XLR | | Power | Current consumption: <2 ma
Supply voltage: 9 to 52 V phantom power to DIN 45596 | | Dimensions | 0.7 x 4.3" (19 x 110mm) (Diameter x Length) | | Weight | 80g (2.8oz) | | | | Box Dimensions (LxWxH) | 11.55 x 5.4 x 3.25" | - AKG CK94 Figure-Eight Microphone Capsule
| Transducer | Condenser | | Polar Pattern | Figure-Eight | | Frequency Response | 20Hz to 20kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | 72dB | | Maximum Input Sound Level | 132/142dB (for 1% THD) | | Power Requirements | Supply voltage: through SE-300B
Current consumption: through SE-300B | | Output Impedance | not specified by manufacturer | | Output Connectors | Interfaces with SE-300B Power Supply | | Pad | -10dB located on SE-300B | | Low Frequency Roll-Off | Low Frequency Roll-Off: 12 dB/octave at 75 Hz located on SE-300B | | Dimensions | 0.7 x 2.3" (19 x 58mm) (diameter x length) | | Weight | (35 g) 1.2 oz. | | | | Box Dimensions (LxWxH) | 6.5 x 4.9 x 2.3" |
