User Manual for AKG C 12 VR Microphone Click to enlarge the picture
Contents of the user manual for the AKG C 12 VR Microphone
- Product category: Tube Microphones AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Tube Microphones
 |
User manual for the AKG C 12 VR Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

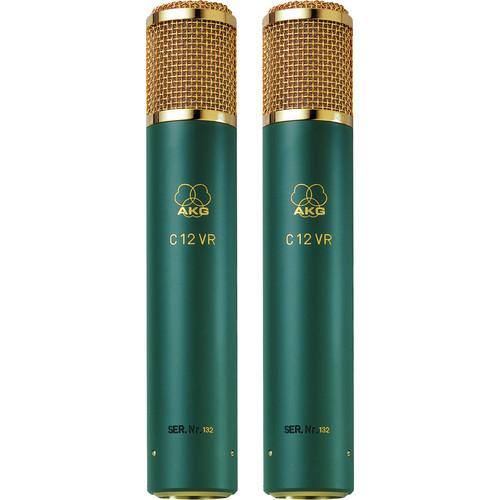

Product description The AKG C 12 VR Microphone is a studio condenser microphone that's a favorite among some of the most sought after recording engineers in the industry. Modeled directly after the classic AKG C 12, the C 12 VR (vintage restoration) maintains it's popularity since it's inception in the late 1940's. Like the C 12, the C 12 VR features a 1" diaphragm and unique condenser tube (6072) design, providing warmth and presence characteristics unique to the microphone. In addition to the classic sound, the C 12 VR is a versatile microphone featuring 9 switchable pickup patterns including omnidirectional, cardioid and figure-eight, with variations of each. Also provided is switchable attenuation between -10 or -20dB, and a boost of +10db to accommodate all studio recording requirements. An aluminum case is included, and the C 12 VR is backed by a 3-year warranty. This package of the C 12 VR provides two C 12 VR microphones, tube-matched in sensitivity and frequency response in order to provide optimum results while recording in stereo. - Stereo Matched Pair
- This package includes a stereo matched pair of C12VR tube microphone for maximum results while capturing audio signal in stereo.
- Original Vintage Design
- Modeled after the classic AKG C12, the C12VR is a restored version of the classic tube condenser microphone featuring the original 6072 vacuum tube, 1950's dual diaphragm and transformer.
- Switchable Polar Patterns
- The C12VR features flexible switchable polar patterns including omni directional, cardioid, and figure-eight with variations of each pattern.
- Attenuation and Boost Switching
- -10 and -20db of pre-attenuation and gain boost of +10dB accommodate all studio requirements from vocals to instruments of types.
- High Pass Filter
- A 2-position high pass filter eliminates low end noise and rumble providing more presence of mid and high end frequencies.
- External Control/Power Unit
- The N12VR remote power supply, provides power to the microphone and features the Polar Pattern, High Pass Filter and Attenuation / Boost switches.
In the Box AKG C 12 VR Microphone (Matched Pair) 2 x (N12VR) Power Supply 2 x (H15/T) Elastic Shock Mount Suspension 2 x 10M Cable 2 x (W42) Foam Windscreen Professional Rugged Aluminum Carrying Case Individually Tested Frequency Response Graph Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG C 12 VR Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

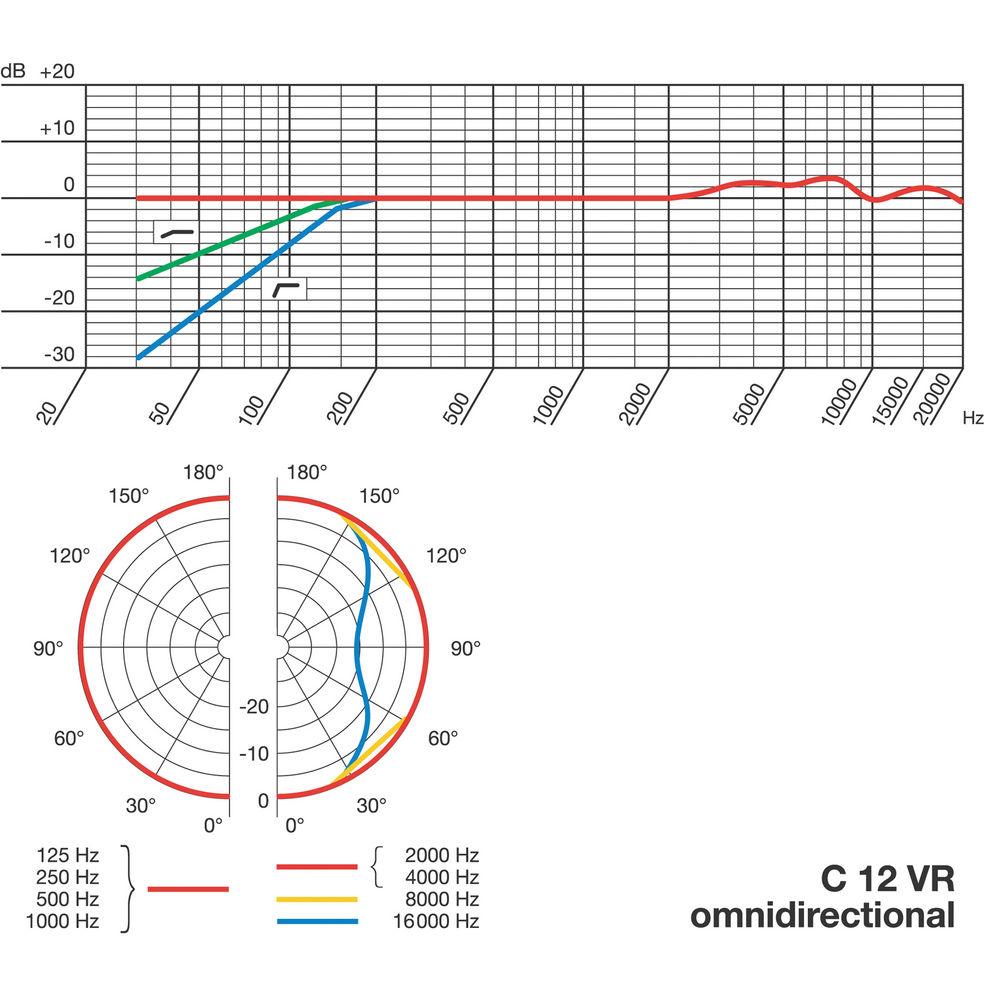

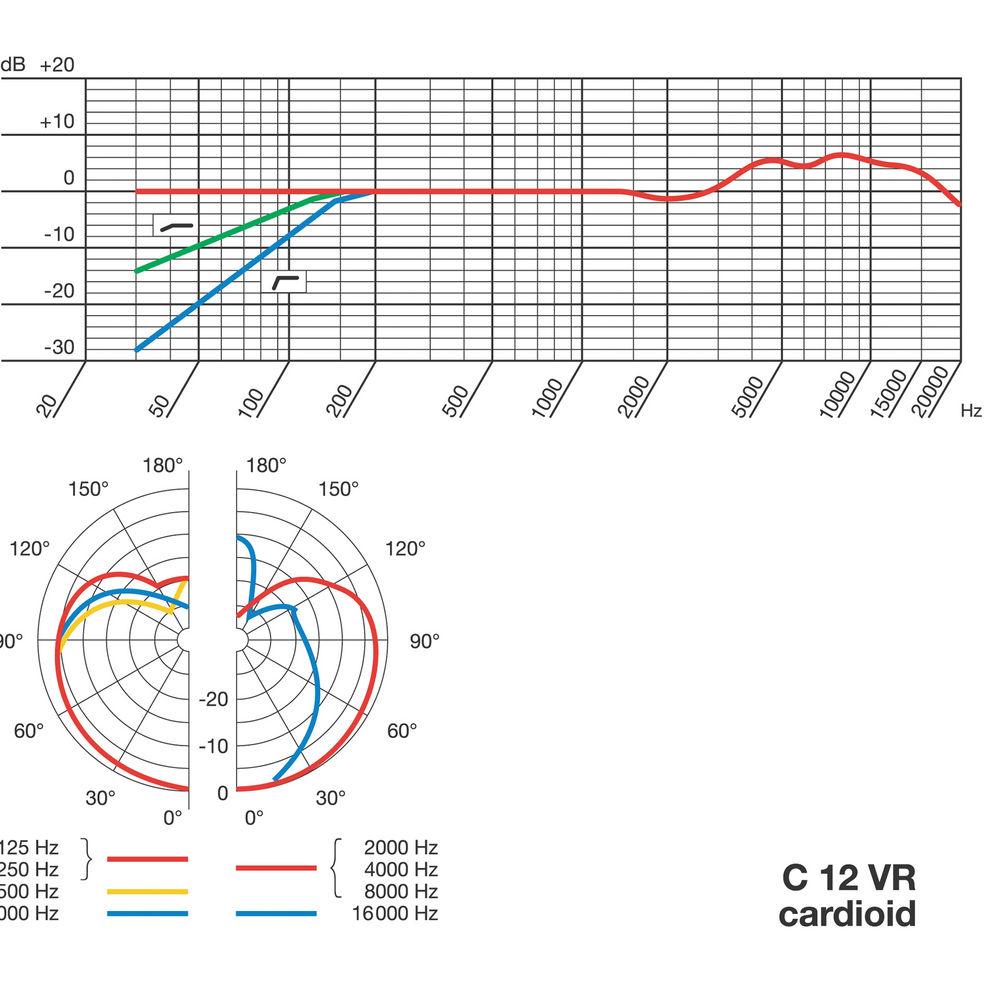

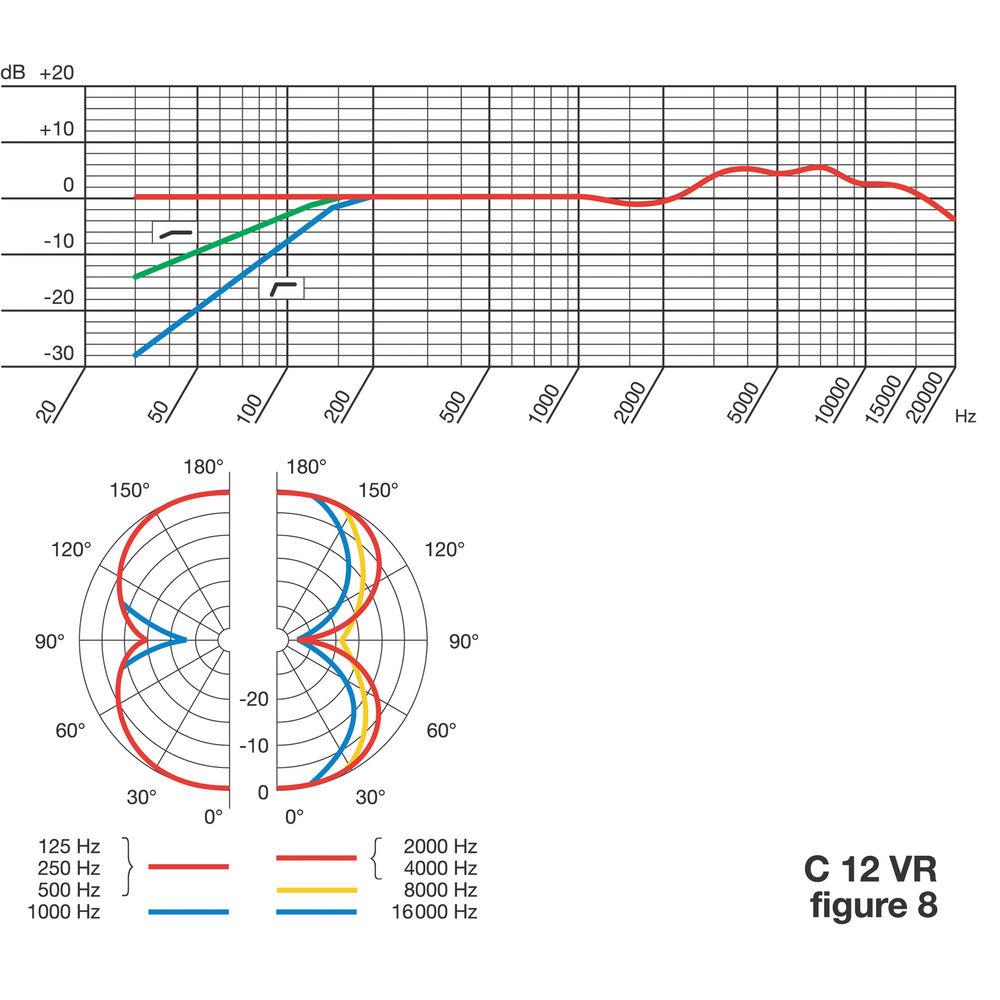

Technical parametersAKG C12 VR Specs | Transducer | Vacuum Tube Condenser | | Polar Pattern | Cardioid, Omnidirectional, Figure-8 and Six Intermediate Positions Selectable via Remote Control | | Frequency Response | 30 Hz to 20 kHz (+/-2.5 dB from Published Curve) | | Dynamic Range | > 106 dB | | Signal-to-Noise Ratio | 72 dB (A-Weighted) | | Max Input Sound Level (SPL) | 128 dB (3% THD) | | Power Requirements | Powering via included N-Tube power supply with 115/230 VAC | | Output Impedance | 200 ohms | | Output Connector | Microphone: Large-sized Tuchel, 12-Pin
N-Tube Power Supply: XLR-3M Type | | Pad | Yes, -10 dB, -20 dB (Switchable) | | Low Frequency Roll-Off | Yes, 12 dB/Octave Roll-Off (at 75 Hz or 150 Hz) | | Dimensions | 8.9 x 1.7" (225 x 42mm) LxD | | Weight | 1.5 lbs (680g) | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 21.0 x 19.4 x 16.4" |
