User Manual for AKG C1000 S Small-Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the AKG C1000 S Small-Diaphragm Condenser Microphone
- Product category: Small Diaphragm Condenser AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Small Diaphragm Condenser
|
User manual for the AKG C1000 S Small-Diaphragm Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

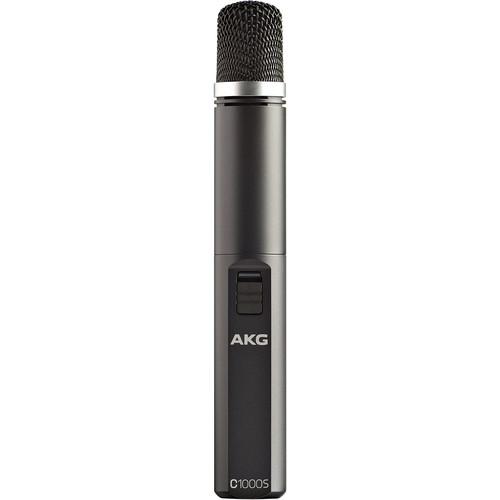

Product description The C1000 S from AKG is a small-diaphragm condenser microphone with a cardioid pattern designed for recording, live-sound, ENG and video-production applications with vocals and instruments. Using the included polar-pattern converter accessory, the microphone can be switched from cardioid to hypercardioid to reduce feedback when used on stage. The presence-boost adapter offers three discrete frequency settings to add clarity to speech and instrument sounds. A switchable low-cut filter at 80 Hz helps reduce rumble or wind noise, and a switchable 10 dB pad enables distortion-free recording of very loud sound sources associated with proximity miking. If no phantom power is available, the C1000 S can be powered by two standard AA batteries for up to 120 hours. Featuring a pre-polarized design encased in a sturdy metal chassis, a gold-sputtered microphone capsule housing and gold-plated XLR pins, this microphone is well suited for mobile applications such as broadcast and interviews, even in high-humidity environments. The C1000 S comes with a stand adapter, a foam windscreen and a microphone bag. -
- Presence-boost adapter offers three discrete frequency settings to add clarity to speech and instrument sounds
- Polar-pattern converter allows microphone pattern to be switched from cardioid to hypercardioid
- Pre-polarized design, gold-sputtered microphone-capsule housing and gold-plated XLR pins make this microphone well suited for portable applications and high-humidity environments
- Switchable low-cut filter at 80 Hz to reduce rumble or wind noises which may cause distortion at low frequencies.
- Switchable 10 dB pad to enable distortion-free recording of very loud sound sources in proximity miking
- If no phantom power is available, the C1000 S can be powered by two standard AA batteries for up to 120 hours
- Sturdy metal chassis and specialized mic clip to keep microphone securely attached to stands
UPC: 885038034605 In the Box AKG C1000 S Small-Diaphragm Condenser Microphone SA 63 Stand Adapter for the C1000S cyqcwvxx PPC1000 Polar Pattern Converter PB1000 Presence Boost Adapter W1001 Foam Windscreen Microphone Bag Limited 3-Year Warranty User Manual PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG C1000 S Small-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG C1000 S Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid, Hypercardioid | | Pattern Selection | Switched | | Frequency Range | 50 Hz to 20 kHz | | Signal to Noise Ratio | 73 dB A-Weighted | | Equivalent Noise Level | 21 dB A-Weighted | | Maximum SPL | 137 dB SPL | | Pad | -10 dB | | Impedance | 200 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | 6 mV/Pa | | Low-Cut Filter | @ 80 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.0 mA | | Operating Voltage | 9 to 52 V | | Length | 9.02" / 229 mm | | Diameter | 1.32" / 33.5 mm | | Weight | 11.29 oz / 320 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 11.1 x 8.3 x 3.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
