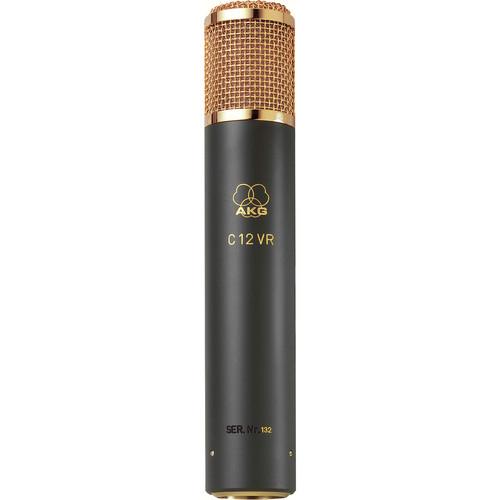

User Manual for AKG C12 VR Reference Multi-Pattern Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the AKG C12 VR Reference Multi-Pattern Tube
- Product category: Tube Microphones AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Tube Microphones
|
User manual for the AKG C12 VR Reference Multi-Pattern Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The C12 VR Reference Multi-Pattern Tube Condenser Microphone from AKG is a studio condenser microphone that's a favorite among some of the most sought after recording engineers in the industry. Modeled directly after the classic AKG C12, the C12 VR (vintage restoration) maintains it's popularity since it's inception in the late 1940's. Like the C12, the C12 VR features a 1.0" diaphragm and unique condenser tube (6072A) design, providing warmth and presence characteristics unique to the microphone. In addition to the classic sound, the C12 VR is a versatile microphone featuring 9 switchable pickup patterns including omnidirectional, cardioid, and figure-eight, with variations of each. Also provided is switchable attenuation between -10 or -20 dB, and a boost of +10 db to accommodate all studio recording requirements. An aluminum case is included, and the C12 VR is backed by a 3-year warranty. - Original Vintage Design
- Modeled after the classic AKG C12, the C12VR is a restored version of the classic tube condenser microphone featuring the original 6072 vacuum tube, 1950's dual diaphragm and transformer.
- Switchable Polar Patterns
- The C12VR features flexible switchable polar patterns including omnidirectional, cardioid, and figure-eight with variations of each pattern.
- Attenuation and Boost Switching
- -10 and -20 dB of pre-attenuation and gain boost of +10 dB accommodate all studio requirements from vocals to instruments of types.
- High Pass Filter
- A 2-position high pass filter eliminates low end noise and rumble providing more presence of mid and high end frequencies.
- External Control/Power Unit
- The N 12VR remote power supply, provides power to the microphone and features polar pattern, high pass filter, and attenuation / boost switches.
In the Box AKG C12 VR Reference Multi-Pattern Tube Condenser Microphone (N12VR) Power Supply (H15/T) Elastic Shock Mount Suspension Microphone Cable (32.8' / 10.0 m) (W42) Foam Windscreen Professional Rugged Aluminum Carrying Case Individually Tested Frequency Response Graph Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG C12 VR Reference Multi-Pattern Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG C12 VR Specs | | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | 72 dB A-Weighted | | Equivalent Noise Level | 22 dB A-Weighted | | Pad | -10 dB
-20 dB | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 10 mV/Pa | | Low-Cut Filter | @ 100 Hz
@ 130 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 8.86" / 225 mm | | Diameter | 1.65" / 42 mm | | Weight | 23.99 oz / 680 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 16.0 x 15.0 x 12.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
