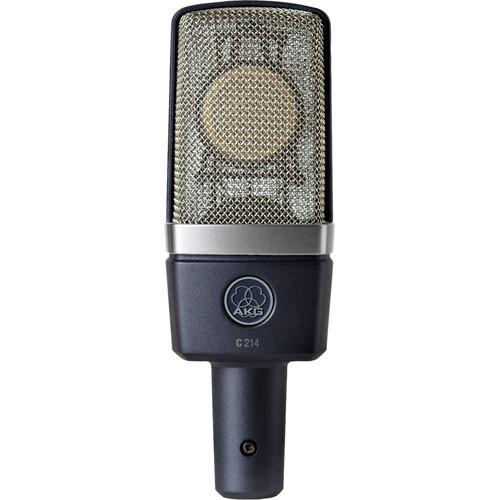

User Manual for AKG C214 Large-Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the AKG C214 Large-Diaphragm Condenser Microphone
- Product category: Large Diaphragm Condenser AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Large Diaphragm Condenser
|
User manual for the AKG C214 Large-Diaphragm Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description - Mic Roundup Part 3: Little Brother Mic Lineup
The versatile C214 Large-Diaphragm Condenser Microphone from AKG is designed to record lead vocals, drums, acoustic instruments & guitar amplifiers, in the studio, on stage or in broadcasting situations. Conceived as a cost-effective alternative to the renowned C414 microphone, this microphone uses the same 1" capsule but in a single-diaphragm and cardioid-only configuration. The transducer features Edge-Terminated Back-Plate technology that allows the membrane to vibrate freely, resulting in a wide frequency range and detailed transients, even at high sound-pressure levels. With the additions of a switchable 20 dB pad and a low-cut filter, the C214 is well-suited for close-miking applications. The low-noise electronic circuitry provides high sensitivity and can handle SPL up to 156 dB, adding up to a dynamic range of 143 dB. The C214 is a rugged microphone built to withstand the severities of professional studios or the road. The integrated capsule suspension helps reduce mechanical noise and resonance for a cleaner sound. The die-cast metal body with shock- and scratch-resistant finish features a double-mesh grille which protects the capsule and ensures efficient rejection of RF interference without affecting acoustics. The C214 comes with a metal carrying case, a foam windscreen and a spider-type shockmount. -
- 1" large diaphragm with Edge-Terminated Back-Plate technology
- 143 dB dynamic range (up to 156 dB SPL)
- Switchable 20 dB pad and 160 Hz low-cut filter
- Integrated capsule suspension to reduce mechanical noise
- Rugged double-mesh grille for RF immunity but unaffected acoustics
- Spider-type shockmount, windscreen and metal carrying case included
- All-metal die-cast body with shock- and scratch-resistant finish
- Designed, engineered and built in Vienna, Austria
UPC: 885038021117 In the Box AKG C214 Large-Diaphragm Condenser Microphone H 85 Universal Shock Mount W214 Foam Windscreen Metal Carrying Case Limited 3-Year Warranty User Manual PDF 746.4kbvfasscrycasazxsceaxaxbrcawx Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG C214 Large-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG C214 Specs | | | Diaphragm | 1.0" / 25.40 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 81 dB A-Weighted | | Equivalent Noise Level | 13 dB A-Weighted | | Pad | -20 dB | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 20 mV/Pa | | Low-Cut Filter | @ 160 Hz | | Dynamic Range | 143 dB A-Weighted | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.0 µA | | Operating Voltage | 9 to 52 V | | Operating Temperature | 14 to 140°F / -10.00 to 60.00°C | | Length | 6.30" / 160 mm | | Diameter | 2.20" / 56 mm | | Weight | 9.88 oz / 280 g | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 11.5 x 10.0 x 4.0" |
