User Manual for AKG C314 Multi-Pattern Condenser Microphone Click to enlarge the picture
Contents of the user manual for the AKG C314 Multi-Pattern Condenser Microphone
- Product category: Large Diaphragm Condenser AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Large Diaphragm Condenser
 |
User manual for the AKG C314 Multi-Pattern Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

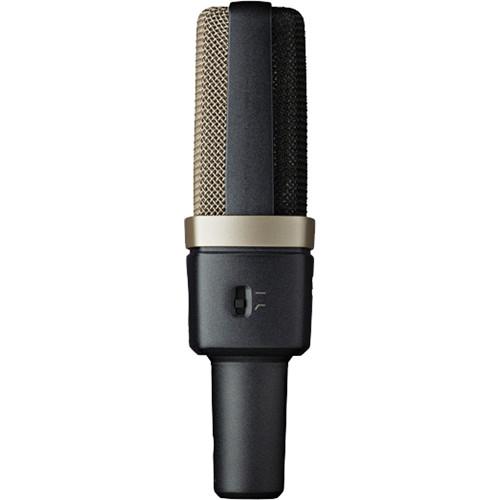

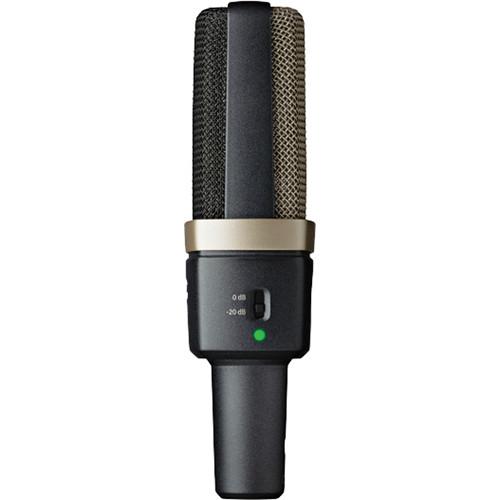

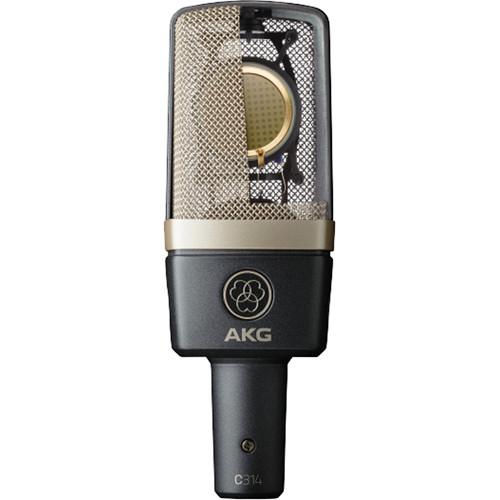

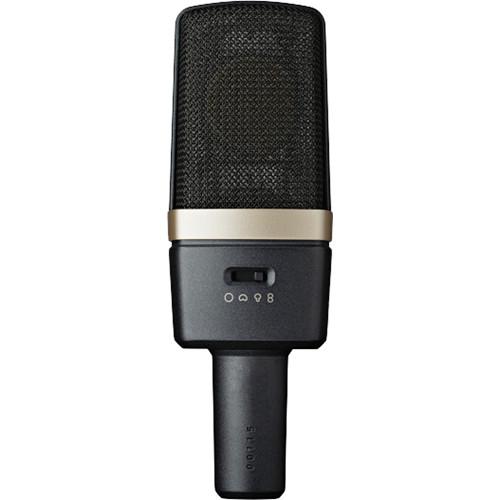

Product description Employing the same 1" dual diaphragm capsule as their popular C414 XLS, the C314 Multi-Pattern Condenser Microphone from AKG is geared towards a variety of miking applications for project and professional studios as well as on stage. Its dual capsule provides for 4 selectable polar patterns; cardioid, supercardioid, omnidirectional, and figure 8, while its internal circuitry assures a low level of self noise. An overload detection LED lets you know when you are distorting the microphone, while the -20 dB pad and bass-cut filter at 100 Hz allows you to adjust the sonics based on the source. - 4 Selectable Polar Patterns
- Computer-Matched Diaphragms
- Integrated Capsule Suspension
- 20 dB Attenuation Pad and Bass-Cut Filter
In the Box AKG C314 Multi-Pattern Condenser Microphone H 85 Universal Shock Mount SA 60 Mic Stand Adapter W214 Windscreen Metal Carrying Case Limited 3-Year Warranty User Manual PDF 2.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG C314 Multi-Pattern Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG C314 Specs | Capsule | 1" dual-diaphragm condenser | | Polar Patterns | Cardioid, supercardioid, omnidirectional, figure 8 | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | Cardioid: 20 mV/Pa (-34 dBV) | | Maximum SPL for 0.5% THD | 135/155 dB (0/-20 dB pad) | | Equivalent Noise Level | 8 dB (A) (IEC 60286-4) | | Signal to Noise Ratio | 86 dB (A) re 1 Pa | | Pad | -20 dB | | Bass Cut Filter | 100 Hz, 12 dB/octave | | Impedance | Electrical: ≤ 200 ohms
Recommended Load Impedance: ≥ 1000 ohms | | Connector | 3-pin XLR (pin 2 hot) | | Phantom Power | 48 V +/- 4 V to IEC 61938 | | Current Consumption | ≤ 3 mA | | Temperature Range | 14° to 140°F (-10° to +60°C) | | Dimensions (H x W x D) | 6.3 x 2.2 x 1.7" (160 x 55 x 43 mm) | | Weight | 10.6 oz (300 g) | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 11.3 x 9.1 x 4.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
