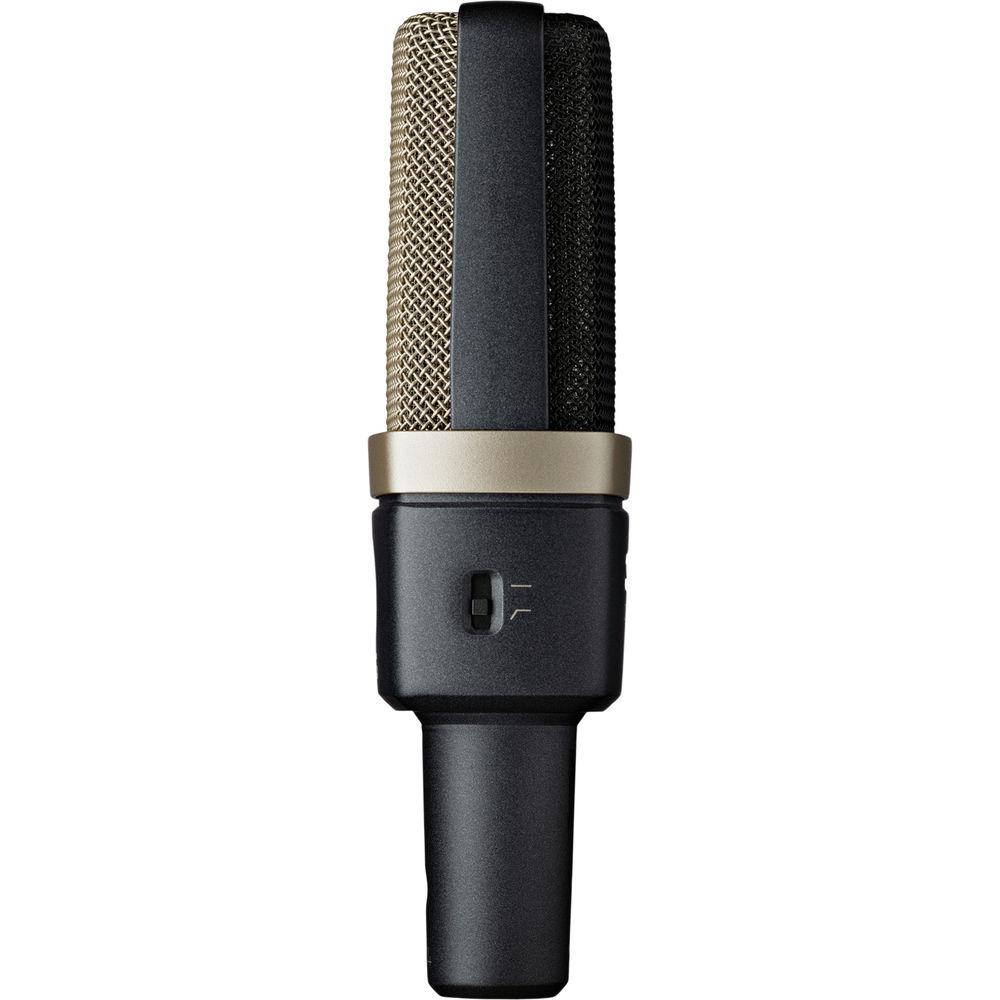

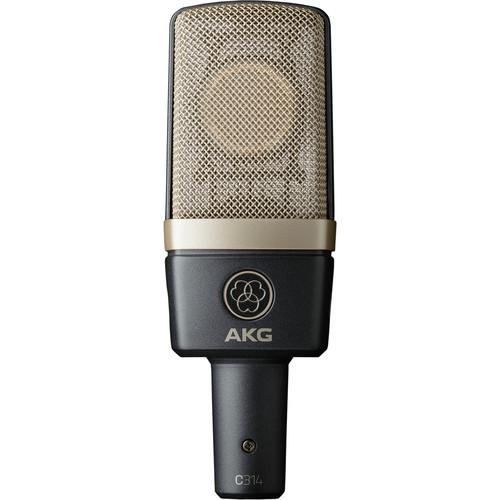

User Manual for AKG C314 Professional Multi-Pattern Condenser Microphone Click to enlarge the picture
Contents of the user manual for the AKG C314 Professional Multi-Pattern Condenser Microphone
- Product category: Large Diaphragm Condenser AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Large Diaphragm Condenser
 |
User manual for the AKG C314 Professional Multi-Pattern Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

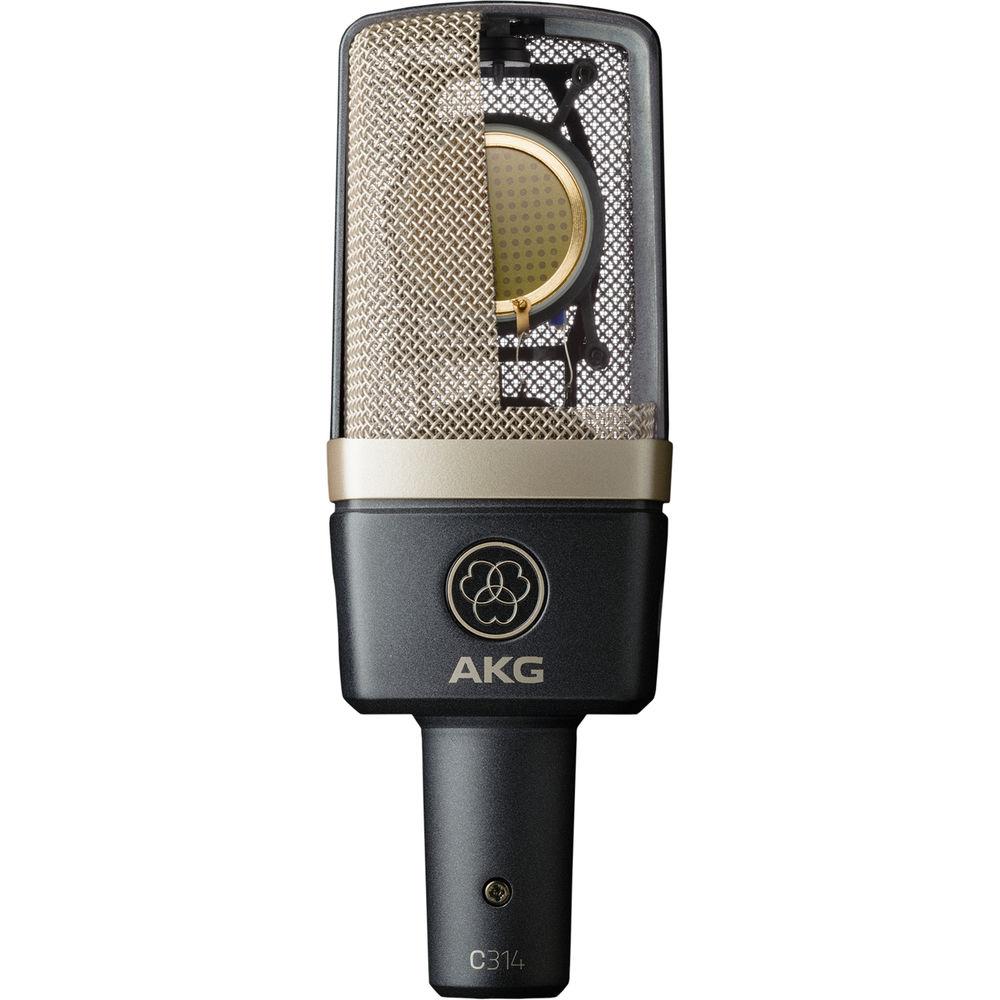

Product description The C314 Professional Multi-Pattern Condenser Microphone from AKG features a 1" dual-diaphragm capsule, four selectable polar patterns—cardioid, supercardioid, omnidirectional, or figure-8—an overload-detection LED, and a bass-cut filter, and it is equipped with a professional 3-pin XLR connector. This microphone can be used to capture audio for vocals, piano, strings, horns, woodwinds, drums, and percussion instruments in studio recording applications.The C314 microphone is built with a 20 Hz to 20 kHz frequency response and is powered by 44 to 52V phantom power. Designed on the heritage of the C414 XLS capsule, its dual computer-matched diaphragms offer polar-pattern accuracy, while the integrated suspension dramatically reduces noise for pure, faithful recordings. These easy-to-access options make the AKG C314 a great addition to any studio environment. - 1" Dual-Diaphragm Capsule
- With a full-frequency range of 20 Hz to 20 kHz and low self-noise, the C314 microphone is built on the rich heritage of the C414 XLS capsule; its dual computer-matched diaphragms offer polar-pattern accuracy while the integrated suspension dramatically reduces noise for pure, faithful recordings.

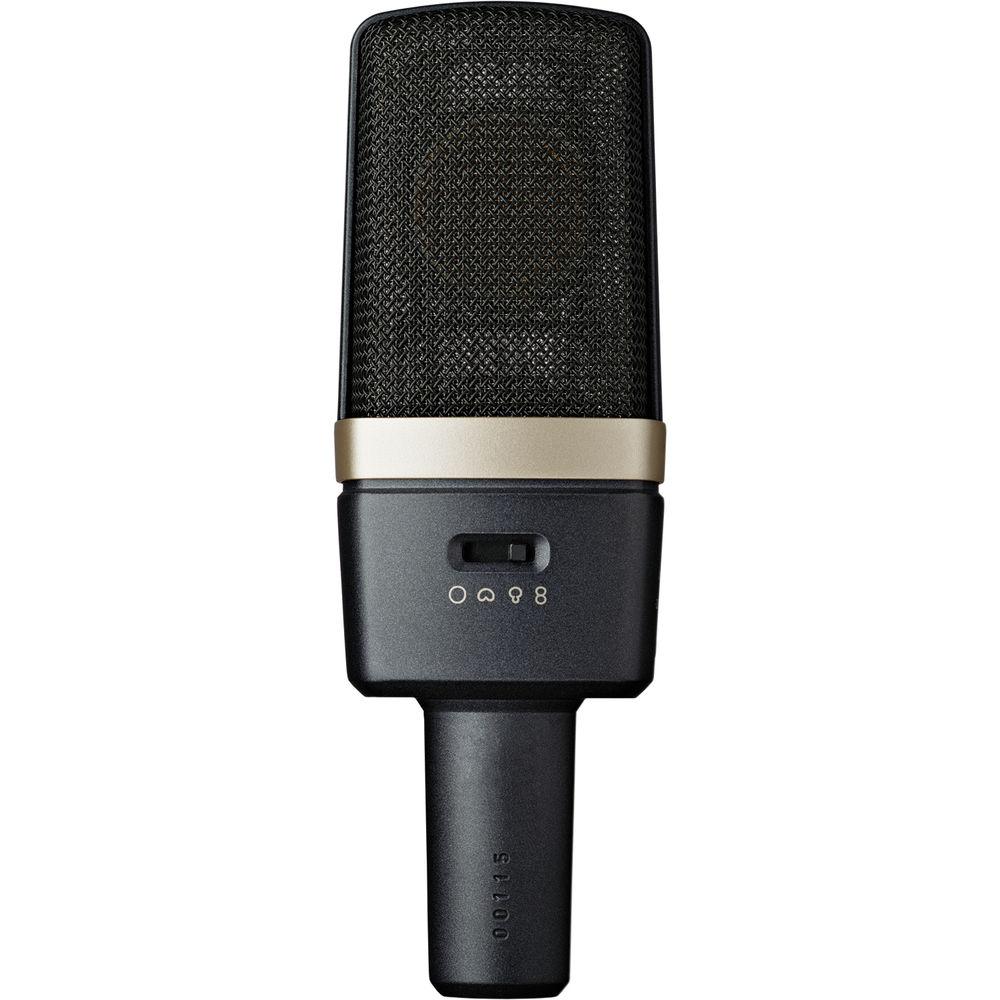

- Four Selectable Polar Patterns
- The C314 is the multi-instrumentalist in your microphone rig ready to fill in wherever needed. Whether it's cardioid, supercardioid, omni, or figure-8 polar pattern, there are plenty of ways to get the most natural sound from any instrument—electric and acoustic guitars, drums, and much more. Employ a supercardioid pattern to reduce drum spill, then quickly switch to a figure-8 pattern to balance out two vocalists. These easy-to-access options make the AKG C314 suitable to any studio with limited space.

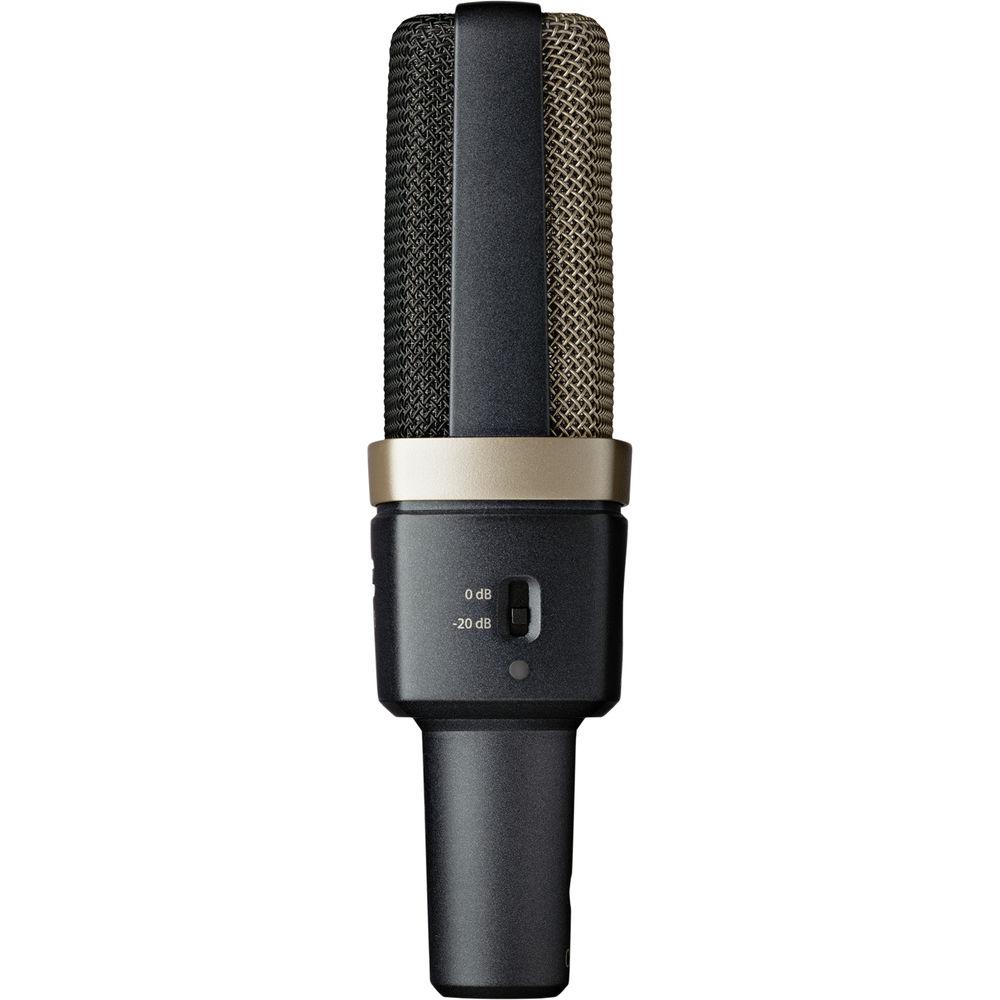

- Overload-Detection LED and Bass-Cut Filter
- The AKG C314 empowers you to make better recordings. When acting as both artist and engineer, the mic's overload-detection LED makes it easy to see when your input levels are too high. This helps you take full advantage of the mic's dynamic range and only engage the pad when necessary. Its bass-cut filter helps you curb rumbles, vibrations, and loud, boomy sounds and minimizes the proximity effect for balanced recordings.
In the Box AKG C314 Professional Multi-Pattern Condenser Microphone H 85 Universal Shock Mount vzqyqqxs SA 60 Mic Stand Adapter W214 Foam Windscreen Metal Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG C314 Professional Multi-Pattern Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG C314 Specs | | | Sound Field | Mono | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm (Condenser) Dual-Diaphragm Capsule | | Polar Pattern | Cardioid, Figure-8, Omnidirectional, Supercardioid | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 86 dB A-Weighted | | Equivalent Noise Level | 8 dB A-Weighted | | Maximum SPL | Cardioid: 135 dB SPL
Cardioid: 155 dB SPL 0/-20 dB | | Pad | -20 dB | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 20 mV/Pa | | Low-Cut Filter | 12 dB/Octave @ 100 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 44 to 52 V | | Length | 6.30" / 160 mm | | Diameter | 2.17" / 55 mm | | Weight | 10.58 oz / 300 g |
