User Manual for AKG C414 XLS Multi-Pattern Large-Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the AKG C414 XLS Multi-Pattern Large-Diaphragm Condenser
- Product category: Large Diaphragm Condenser AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Large Diaphragm Condenser
 |
User manual for the AKG C414 XLS Multi-Pattern Large-Diaphragm Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

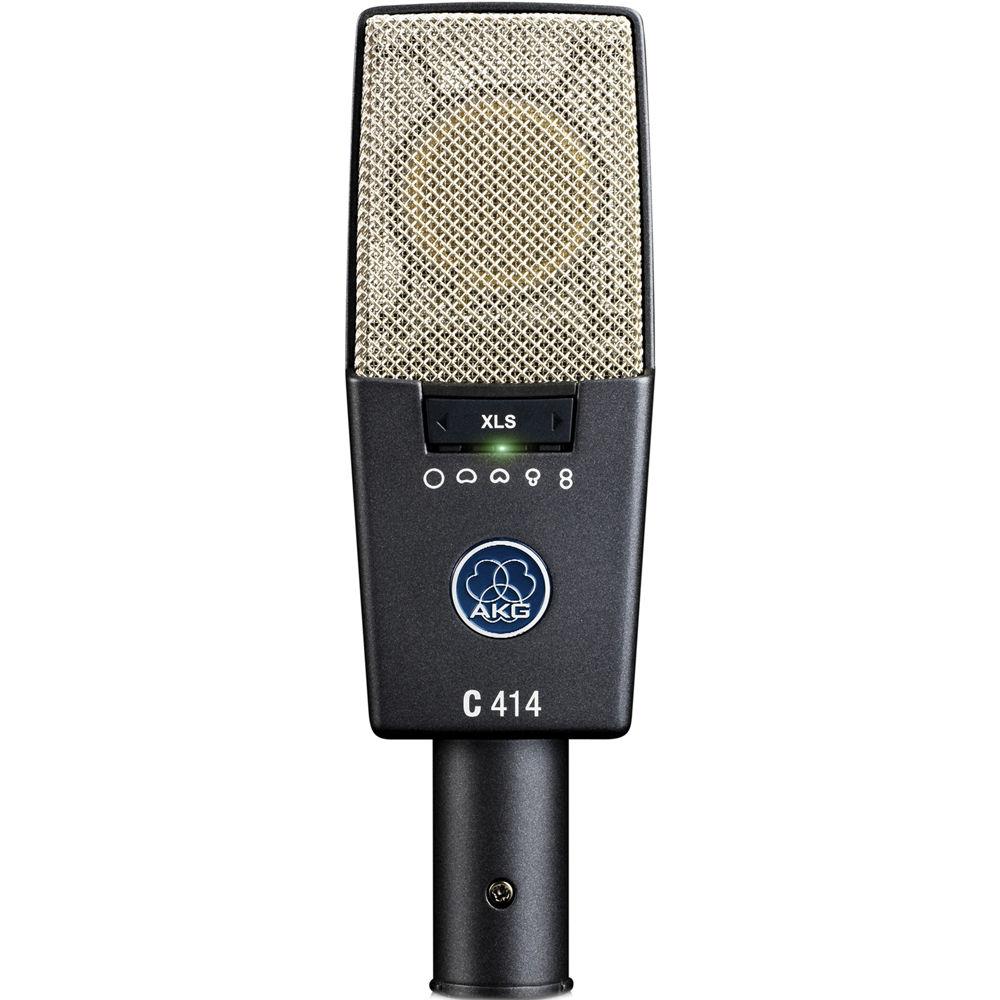

Product description The classic C414 XLS Multi-Pattern Large-Diaphragm Condenser Microphone from AKG is a staple within the audio industry. Equipped with nine selectable polar patterns, three attenuation levels and three switchable bass-cut filters, the C414 XLS remains one of the most versatile condenser microphones for recording vocals, drums, and acoustic & amplified instruments in the studio or on stage. This microphone is designed to closely approximate the sonic character of the vintage C414 B-ULS. The 1" edge-terminated dual-diaphragm transducer combined with the low-noise electronic circuitry provide a wide dynamic range of 134 dB and can handle SPL up to 158 dB, for a detailed and natural sound. Features include a peak-hold LED to alert you if overload peaks occur, and a Lock Mode so the microphone settings cannot be changed unintentionally. The elastic capsule suspension minimizes structurally transmitted noise from chassis vibration. The rugged all-metal body ensures efficient rejection of RF interference and makes this microphone well suited to withstand the rigors of studio and stage handling. Built and designed in Austria, the C414 XLS comes with a metal carrying case, a spider-type shockmount, a pop filter, and a foam windscreen. -
- Dual-diaphragm 1” edge-terminated transducer
- Nine polar patterns: omnidirectional, cardioid, hypercardioid, figure-8, wide cardioid, and the intermediate patterns in between
- 134 dB dynamic range (up to 158 dB SPL)
- Lock Mode for live operation – all controls can be conveniently disabled
- Peak-hold LED displays overload peaks
- All-metal body rejects electrostatic and electromagnetic interference
- Three switchable bass-cut filters to reduce wind noise and proximity effect (40, 80, & 160 Hz)
- Three attenuation levels for close-up recording and high-output sources (-6,-12,-18 dB)
- Elastic capsule suspension minimizes structurally transmitted noise from chassis vibration
- Designed and manufactured in Austria

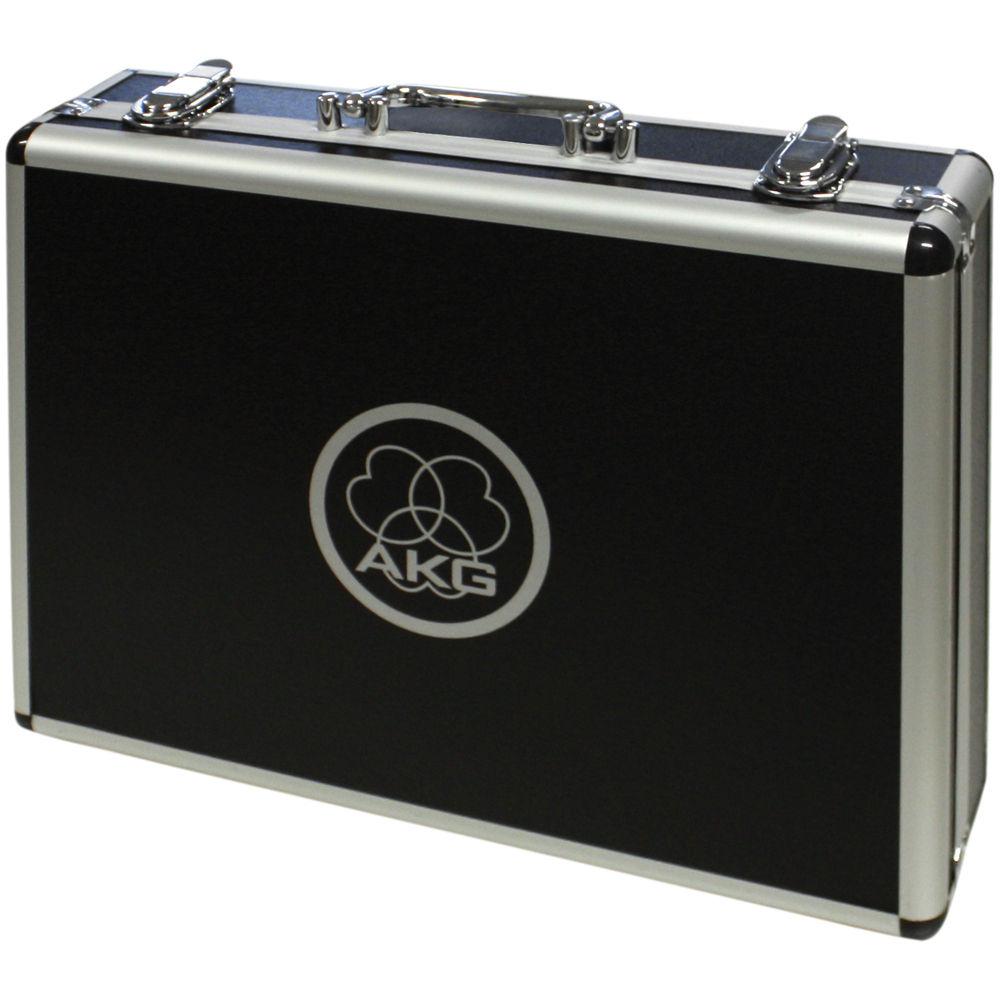

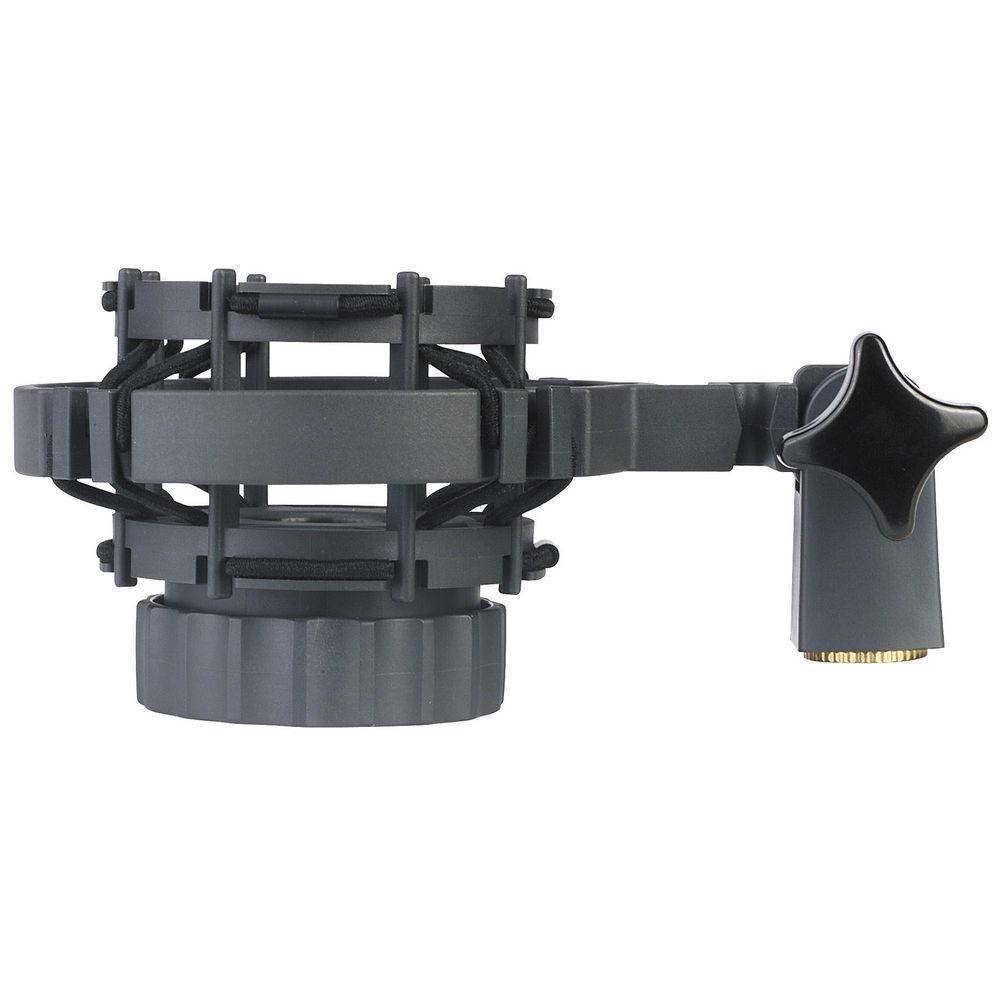

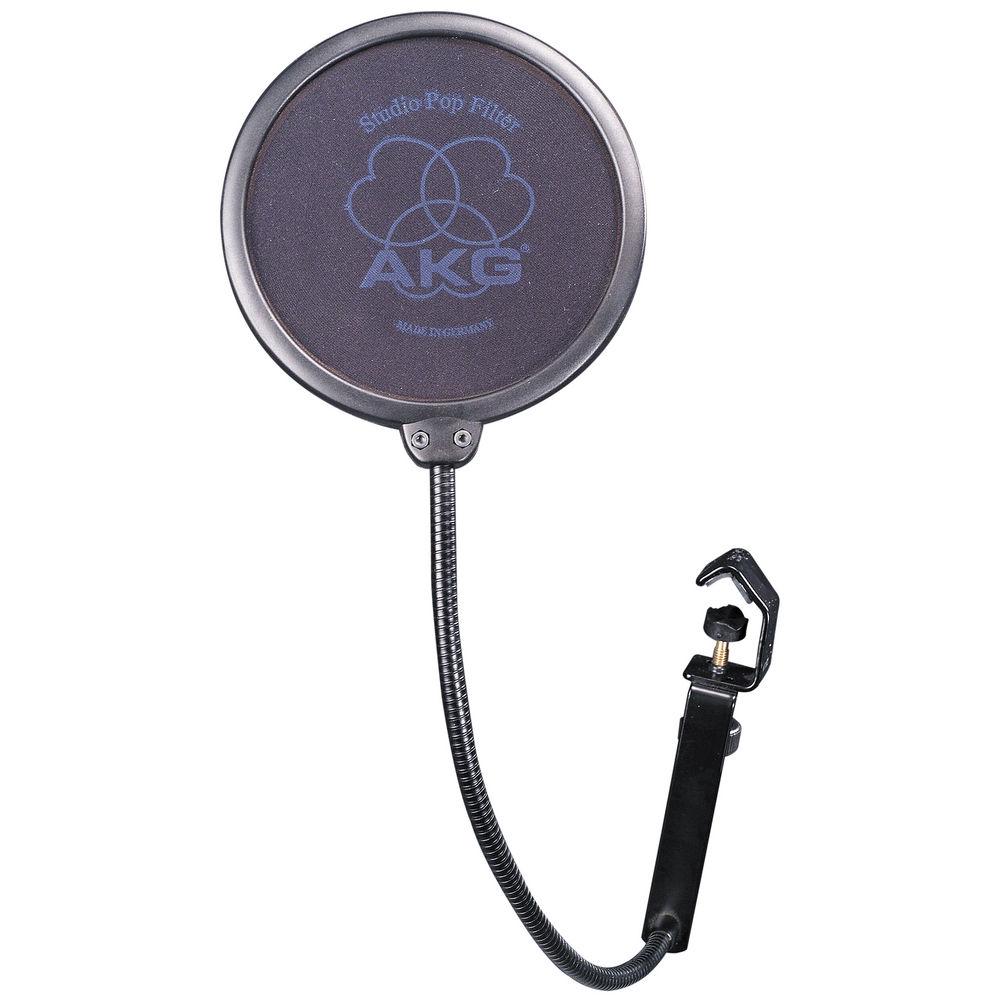

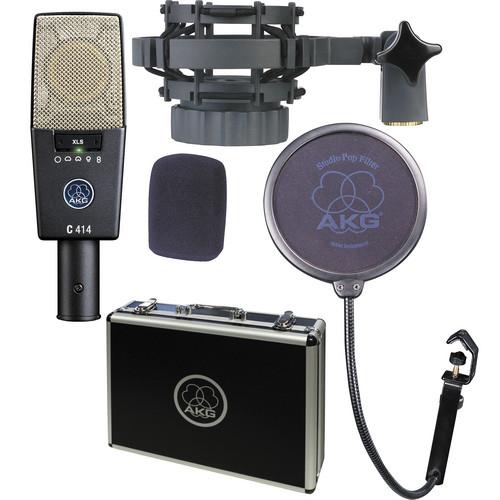

UPC: 885038025917 In the Box AKG C414 XLS Multi-Pattern Large-Diaphragm Condenser Microphone H 85 Universal Shock Mount W414X Microphone Windscreen for C414B-XLS and C414B-XL II PF80 Universal Pop Filter Metal Carrying Case Limited 3-Year Warranty User Manual PDF 904kb Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG C414 XLS Multi-Pattern Large-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG C414 XLS Specs | | | Polar Pattern | Cardioid, Figure-8, Hypercardioid, Omnidirectional, Wide-Angle Cardioid | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 88 dB A-Weighted | | Equivalent Noise Level | 6 dB A-Weighted | | Maximum SPL | 140 dB SPL | | Pad | -6 dB
-12 dB
-18 dB | | Impedance | 200 Ohms | | Load Impedance | 2200 Ohms | | Sensitivity | 23 mV/Pa | | Low-Cut Filter | @ 40 Hz
@ 80 Hz
@ 160 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.5 mA | | Operating Voltage | 44 to 52 V
48 V | | Operating Temperature | 14 to 140°F / -10.00 to 60.00°C | | Length | 6.30" / 160 mm | | Diameter | 1.97" / 50 mm | | Weight | 10.58 oz / 300 g | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 11.3 x 8.8 x 5.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
