User Manual for AKG C451 B Small-Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the AKG C451 B Small-Diaphragm Condenser Microphone
- Product category: Small Diaphragm Condenser AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Small Diaphragm Condenser
 |
User manual for the AKG C451 B Small-Diaphragm Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

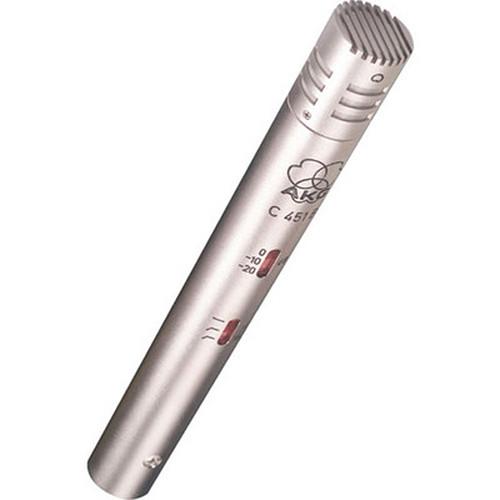

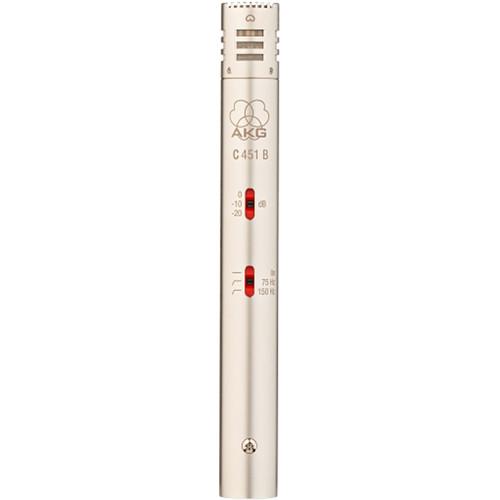

Product description The C451 B Small-Diaphragm Condenser Microphone from AKG is well suited to record drums, percussions, acoustic guitars and strings in the studio and in live situations. It is engineered to approximate the sound of its predecessor, the C451 EB + CK1, but with its redesigned hand-crafted fixed capsule (which eliminates the mechanical problems associated with the original modular design), and its low-noise preamp electronics, this microphone delivers accurate transients for a bright and detailed sound. With a sound-pressure level capability of 155 dB, a dynamic range of 117 dB, a switchable pad and a bass-cut filter, and a transformerless output stage, the C451 B allows for close-miking of high-energy sound sources with low distortion and flat frequency response. The rugged all-metal body ensures efficient rejection of RF interference and makes this microphone well suited to withstand the rigors of studio and stage handling. The C451 B comes with a stand adapter, a windscreen and a microphone bag. -
- Hand-crafted fixed capsule
- Low-noise preamp electronics
- Sound pressure level capability of 155 dB SPL with 117 dB dynamic range
- Transformerless output stage for low distortion and flat frequency response
- Switchable pre-attenuation pad (10 dB & 20 dB)
- Switchable bass-cut filter to reduce wind noise and proximity effect (75 Hz & 150 Hz)
- All-metal body provides efficient protection from RF interference
- Rugged construction
- Windscreen, stand adapter and microphone bag included

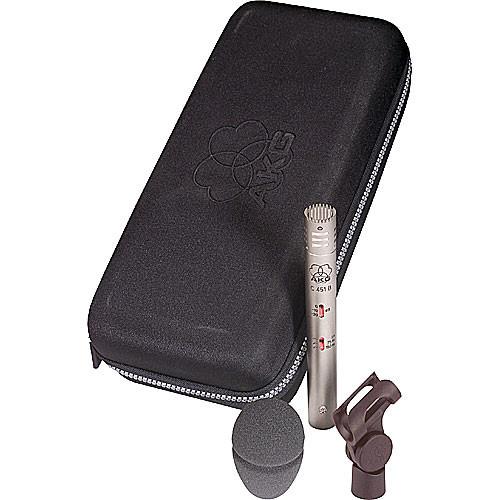

UPC: 885038006077 In the Box AKG C451 B Small-Diaphragm Condenser Microphone W90 Windscreen uvdefteawuxfexzubdywfwxffwfabzrbftyrr SA 60 Mic Stand Adapter Microphone Bag 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG C451 B Small-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG C451 B Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB A-Weighted | | Equivalent Noise Level | 18 dB A-Weighted | | Maximum SPL | 135 dB SPL | | Pad | -10 dB
-20 dB | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 9 mV/Pa | | Low-Cut Filter | 12 dB/Octave @ 75 Hz
12 dB/Octave @ 150 Hz | | Dynamic Range | 117 dB A-Weighted | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.0 mA | | Operating Voltage | 9 to 52 V | | Operating Temperature | -4.00 to 140.00°F / -20 to 60°C | | Length | 6.30" / 160 mm | | Diameter | 0.75" / 19 mm | | Weight | 4.41 oz / 125 g | | | | Package Weight | 1.64 lb | | Box Dimensions (LxWxH) | 11.9 x 5.9 x 3.5" |
