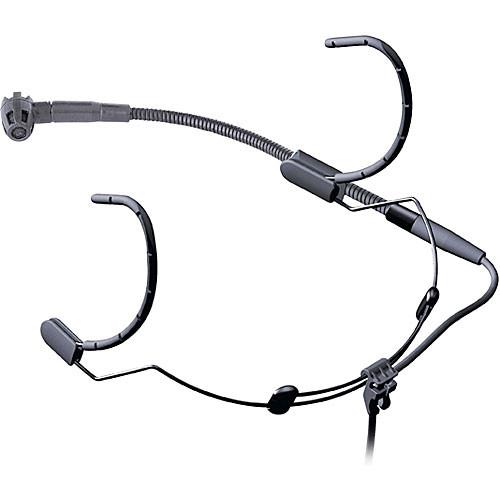

User Manual for AKG C520L Head-Worn Condenser Cardioid Microphone with Mini-XLR Connection for AKG Bodypack Transmitters and Compatible Power Supplies Click to enlarge the picture
Contents of the user manual for the AKG C520L Head-Worn Condenser Cardioid Microphone
- Product category: Microphones for Wireless AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Microphones for Wireless
|
User manual for the AKG C520L Head-Worn Condenser Cardioid Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The AKG C520L is a cardioid, condenser head-worn microphone with a comfortable, adjustable band that is designed to wrap around the neck. The lightweight design not only allows for comfortable long-term use, it keeps the microphone hidden from view, making it a suitable choice for performances, theater and more.The cardioid polar pattern eliminates off-axis noise and feedback while the wide frequency response and sensitive capsule result in smooth, accurate vocal reproduction. The C520L features an adjustable gooseneck and the cable terminates to a mini-XLR connection. The mini-XLR connection is compatible with the B29L battery power supply, MPA VL phantom power adapter and PT40/PT400 wireless bodypack transmitters. The microphone is powered with 9 to 52 volts phantom power and is an ideal choice for presentations, performances, narration and more. - Mini-XLR connection is compatible with the B29L battery power supply, MPA VL phantom power adapter and PT40/PT400 wireless bodypack transmitters
- Adjustable behind-the-neck headband
- Adjustable gooseneck for easy microphone positioning
UPC: 885038018667 In the Box AKG C520L Head-Worn Condenser Cardioid Microphone with Mini-XLR Connection for AKG Bodypack Transmitters and Compatible Power Supplies W44 Windscreen 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG C520L Head-Worn Condenser Cardioid Microphone with Mini-XLR Connection for AKG Bodypack Transmitters and Compatible Power Supplies in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG C520L Specs | Transducer | Pre-Polarized Condenser | | Polar Pattern | Cardioid | | Frequency Response | 20Hz to 20kHz | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | 33dB | | Maximum Input Sound Level | 126dB / 130dB | | Power Requirements | 9 to 52V Phantom Power | | Output Impedance | Recommended Load >/- 2000 ohms | | Output Connectors | mini-XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 5.2" (130mm) (Diameter)
Cable Length: 5 feet (1.5 meters) mini-XLR terminated | | Weight | 30 g (1.1 oz) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 8.0 x 6.75 x 3.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
