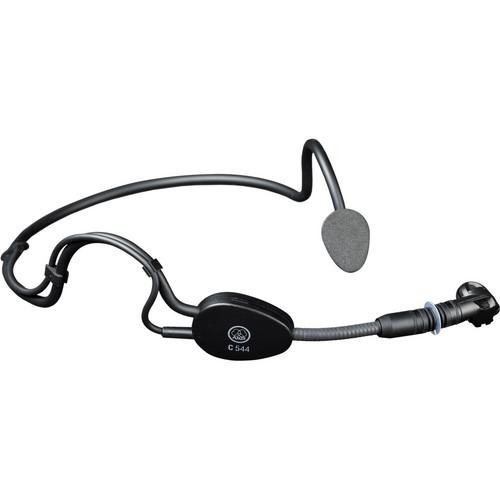

User Manual for AKG C544L Headworn Cardioid Microphone Click to enlarge the picture
Contents of the user manual for the AKG C544L Headworn Cardioid Microphone
- Product category: Microphones for Wireless AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Microphones for Wireless
|
User manual for the AKG C544L Headworn Cardioid Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The AKG C544L Headworn Cardioid Microphone is a miniature, moisture resistant microphone well suited for fitness instruction, presentations and any application where a quality unobtrusive headworn microphone is needed. The headband is mounted around the back of the neck for a comfortable, low-profile fit. The highly sensitive cardioid capsule yields excellent feedback and noise rejection at the off-axis sections, and its moisture barrier protects against humidity, sweat, makeup and other moisture. The output cable features a mini 3-pin XLR connection for use with an AKG bodypack transmitter or power supply (sold separately). - Ergonomically optimized behind-the-neck headband
- External shock mount for high mechanical-noise rejection
UPC: 885038030720 In the Box AKG C544L Headworn Cardioid Microphone W444 Windscreen Moisture Shield Limited 2-Year Warranty User Manual PDF 858.7kbxextuewrxucurrubvatxcubwaacfefuy Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG C544L Headworn Cardioid Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG C544L Specs | Transducer | Pre-polarized condenser microphone | | Polar Pattern | Cardioid | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | 40 mV/Pa (-28 dBV re 1 V/Pa) @ 1000 Hz | | Signal-to-Noise Ratio | 22 dB-A | | Maximum Input Sound Level | 126 dB / 130 dB (for 1%/3% THD) | | Supply Voltage | 9V battery supply through B 29 L or bodypack transmitter, or 9 to 52V universal phantom power through MPA V L adapter | | Current Consumption | Approx. 2 mA | | Impedance | Electrical Impedance @ 1000 Hz: 200 ohms, electronically balanced
Recommended Load Impedance: > 2000 ohms | | Connector | Mini XLR 3-pin female | | Operating Temperature | 4 to 140°F (-20 to +60°C), R.H. at 68°F (+20°C): 99% | | Dimensions | 5.2" (130mm) Diameter
Cable Length: 5' (1.5m) | | Weight | 1.1 oz (30 g) without connector | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 8.1 x 5.5 x 2.7" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
