User Manual for AKG C7 Reference Condenser Vocal Microphone Click to enlarge the picture
Contents of the user manual for the AKG C7 Reference Condenser Vocal Microphone
- Product category: Handheld Performance Microphones AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Handheld Performance Microphones
 |
User manual for the AKG C7 Reference Condenser Vocal Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

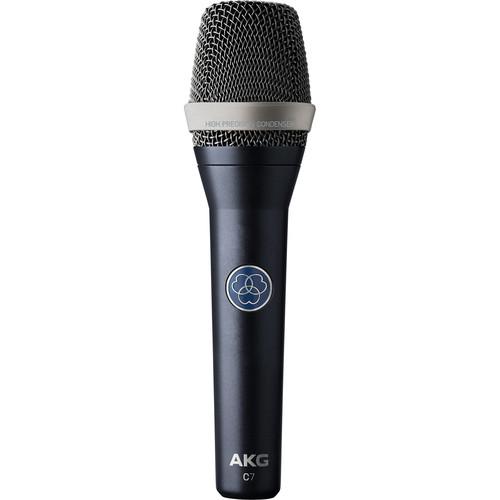

Product description The C7 Reference Condenser Vocal Microphone from AKG is a handheld condenser microphone that delivers premium studio-quality sound with hassle-free operation. It can be used to capture lead and background vocals with clarity and sparkling high end in applications for live stage, theater, rehearsals, and more. Powered with 48V phantom power, the C7 allows lead and background vocals to shine through. Featuring specially engineered circuitry and custom-designed components, the C7 prevents feedback, handling noise, and pop noise from interfering with your performance. No matter where you're performing, this microphone delivers premium, worry-free vocal reproduction so you can focus on what really matters. - Condenser Sound Quality
- The C7 microphone features a custom-tuned supercardioid condenser capsule with hand-selected components, so your voice is reproduced with pristine clarity and sparkling highs. The C7 also handles incredibly high sound pressure levels, for maximum fidelity during your loudest performances
- Open-Space Capsule Technology
- The C7 mic's innovative open-space capsule technology delivers a supercardioid pattern across the entire frequency spectrum that virtually eliminates on-stage feedback
- Proprietary Shock Absorber Suspension
- The C7 features a proprietary mechano-pneumatic shock absorber suspension that ensures handling noise won't clutter your sound. The capsule sits on top of a unique rubber, preventing vibrations from reaching the capsule
- Multi-Layer Pop Noise Protection System
- The C7 features a three-layer pop noise rejection system to protect your vocals from annoying plosives. This multi-layer system includes the proprietary mic grill, dense foam underneath the grill, and a mesh layer that encases the capsule
- Rugged Construction
- With extremely rugged zinc alloy construction and spring steel grill, the C7 stands up to the most demanding tour schedules. And its 24-karat gold-plated capsule protects the microphone against moisture and corrosion

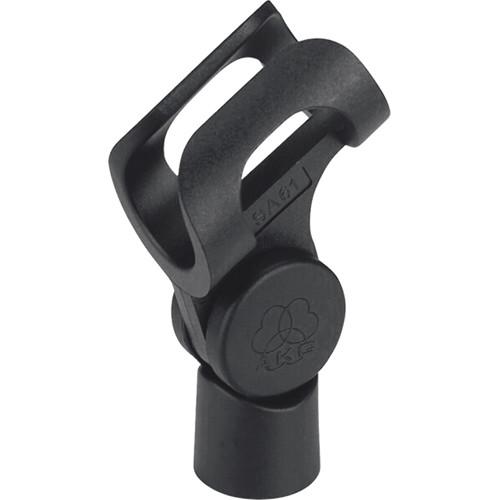

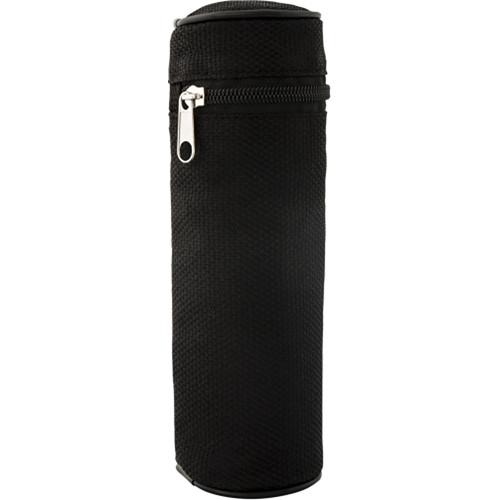

UPC: 885038039419 In the Box AKG C7 Reference Condenser Vocal Microphone SA 61 Stand Adapter Microphone Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG C7 Reference Condenser Vocal Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG C7 Specs | Type | 0.75" back electret condenser | | Polar Pattern | Supercardioid | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | 4 mV/Pa | | Equivalent Noise Level | To IEC 60286-4: 21 dBA | | Signal to Noise | 73 dBA re 1 Pa (94 dB SPL) | | Maximum SPL | @ 1% THD: 150 dBA | | Impedance | Electrical: <600 Ohms | | Recommended Load Impedance | >2000 Ohms | | Temperature Range | -13 to 140°F (-25 to 60°C) | | Connector | 3-pin XLR (pin-2 hot) | | Phantom Power Requirement | 48 V +/- 4 V to IEC 61938 | | Dimensions (H x Diam.) | 7.3 x 2.0" (185 x 51 mm) | | Weight | 11 oz (317 g) | | | | Package Weight | 1.23 lb | | Box Dimensions (LxWxH) | 8.45 x 5.7 x 2.7" |
