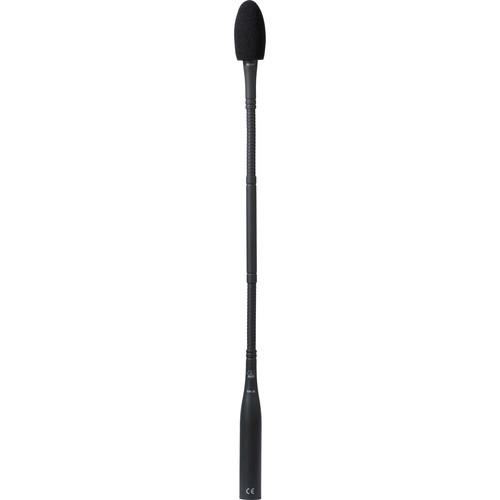

User Manual for AKG CGN331 E Gooseneck Microphone DAM Set Click to enlarge the picture
Contents of the user manual for the AKG CGN331 E Gooseneck Microphone DAM
- Product category: Gooseneck Microphones AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Gooseneck Microphones
|
User manual for the AKG CGN331 E Gooseneck Microphone DAM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The CGN331 E Gooseneck Microphone Dam Set from AKG includes the CK31 high-performance cardioid condenser microphone capsule and the GN30 E high-performance gooseneck module. The CK31 offers a wide cardioid polar pattern and is designed for inexperienced speakers and applications where more than one person uses the microphone in turn. The GN30 E gooseneck module works in fixed or mobile installations and comes with an integrated XLR phantom power adapter with 250 Hz bass roll-off, LED ring. It connects to any standard mixer input with 9 - 52V power supply. - CK31 Cardioid Microphone Capsule The AKG CK31 is a cardioid microphone capsule designed for use with the DAM (Discreet Acoustics Modular) Series mounting modules. The cardioid polar pattern minimizes noise and ambiance at the off-axis (sides) of the microphone. The result increases directivity and provides high gain-before-feedback response when using near speakers or monitors.The wide frequency response of 50 Hz to 20 kHz minimizes low-frequency noise caused by wind and proximity effect while reproducing audio signal with great accuracy and rich detail. The module design allows quick and easy capsule replacement for added flexibility. The package includes a special two-part windscreen, which efficiently reduces wind and pop noise.
- Modular Design
- The CK31 is designed with gold-plated contacts with deep threads for use with the DAM (Discreet Acoustics Modular) Series mounting modules. The modular design offers quick capsule replacement and enhances flexibility.
- Cardioid Polar Pattern
- The cardioid polar pattern minimizes noise and ambient audio signal at the off-axis (sides) of the microphone capsule.
- Wide Frequency Response
- The wide frequency response of 50 Hz to 20 kHz offers smooth, accurate audio reproduction while minimizing low-frequency noise.
- Dual-Layer Wind Protection
- The included dual-layer windscreen provides a primary layer, which disperses the incoming wind stream while the second layer further diffuses wind flow before reaching the diaphragm.
UPC: 885038003021 - GN30E - 14.96" Gooseneck with XLR Output The AKG GN30E is a 14.96" (380mm) gooseneck with an XLR male terminated output connector. The gooseneck accommodates the AKG CK series microphone capsules and it's adjustable gooseneck is designed to provide noise-free operation. The gooseneck mount also features integrated bass roll-off filter switch and On/Off switch with power indicator LED.
- XLR Output Connector
- The XLR Male output is conveniently adapts to surface mounts with XLR female inputs and provides quick installation and removal.
- Modular Design
- The GN series goosenecks are completely compatible with the CK series modular microphone capsules.
- Bass Roll-Off
- Low frequency roll-off filter switch reduces low frequency noise caused by ambiance, structure noise, etc.
- Quiet Positioning
- The gooseneck provides silent microphone positioning.
UPC: 885038003106 - W30 Foam Windscreen for CK31/ CK32/ CK33 The AKG W30 Foam Windscreen for CK31/ CK32/ CK33 is fitted perfectly to provide ample wind protection for use in outdoor environments.
In the Box Bundle Items CK31 Cardioid Microphone Capsule ywcarudczutqbdxvx - W30 Foam Windscreen for CK31/ CK32/ CK33
GN30E - 14.96" Gooseneck with XLR Output - DPA Phantom Power Supply Adapter
- PS 3 F-Lock Surface Flange w/XLR Female Input
- Screw Set with Rubber Bushing
W30 Foam Windscreen for CK31/ CK32/ CK33 ywcarudczutqbdxvx Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG CGN331 E Gooseneck Microphone DAM Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CK31 Cardioid Microphone Capsule
| Transducer | Condenser Prepolarized | | Polar Pattern | Cardioid | | Frequency Response | 50 Hz to 20 kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | 73 dB (A-weighted) | | Maximum Input Sound Level | 125 dB (1% THD) | | Power Requirements | 9 to 52 Volts Phantom Power to IEC 61938 (requires DPA-P or DPA adapter included in GN and HM 1000 series modules) | | Output Impedance | < 600 Ohms | | Rated Load Impedance | > 2 kOhms | | Output Connectors | Threaded termination for use with GN and HM Series modules | | Low Frequency Roll-Off | No | | Dimensions (LxDiameter) | 0.8 x 0.5" / 20.0 x 13.5 mm | | Weight | 0.2 oz / 5.0 g | | | | Box Dimensions (LxWxH) | 6.6 x 4.95 x 2.45" | - GN30E - 14.96" Gooseneck with XLR Output
| Length | 15.87" (403mm) | | Low Frequency Roll-Off | 250Hz, -10dB @ 50Hz | | Impedance | <= 600 ohms
Recommended Load: >= 2k ohms | | Phantom Power | 9 to 52V Phantom Power | | Current Consumption | <3 mA | | Connector | 3-pin male XLR | | Cable Length | not included | | Weight | 5.6 oz (160 g) | | | | Box Dimensions (LxWxH) | 20.0 x 4.2 x 3.0" | - W30 Foam Windscreen for CK31/ CK32/ CK33
| | | Box Dimensions (LxWxH) | 2.0 x 1.6 x 0.6" |
