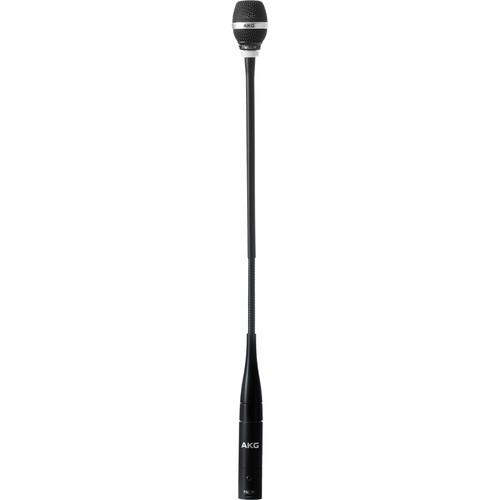

User Manual for AKG CGN341 E Gooseneck Microphone DAM Set Click to enlarge the picture
Contents of the user manual for the AKG CGN341 E Gooseneck Microphone DAM
- Product category: Gooseneck Microphones AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Gooseneck Microphones
|
User manual for the AKG CGN341 E Gooseneck Microphone DAM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The CGN341 E Gooseneck Microphone DAM+ Set from AKG includes the CK41 reference cardioid condenser microphone capsule, the W40 M windscreen, the GN30 M reference DAM+ series gooseneck module, and the PAE M reference phantom power module. This tabletop microphone set provides the components needed to handle a wide range of applications with the flexibility to cover a variety of situations. The CK41 offers a wide cardioid polar patter and a speech optimized studio quality frequency response. It's especially suited for very vivacious speakers and applications where more than one person uses the microphone in turn.
The PAE M phantom power module provides a gold-plated XLR connector and a 250 Hz bass roll off to minimize structure-borne noise. The included windscreen uses a double layer wire mesh, eliminating literally all wind and pop noise issues. The whole set is very slim, but still rugged and features an LED ring that indicates whether the phantom power is on or off. - CK41 Cardioid Capsule With Windscreen The CK41 Cardioid Capsule With Windscreen by AKG is a condenser capsule that fits the gooseneck microphone installation modules in AKG's Discreet Acoustics Modular Plus Series. Equipped with a wide cardioid polar pattern and a speech optimized frequency response, the CK41 is designed to be used almost universally for installed conference and discussion applications. The 125° pickup angle makes the microphone suitable for inexperienced or very vivacious speakers, as well as for applications where more than one person uses the microphone in turn.
- Microphone capsule that fits AKG Discreet Acoustics Modular Plus Series goosenecks
- Wide cardioid pattern rejects noise from rear while the 125° pickup angle is especially suited for inexperienced or very vivacious speakers. Also suited for applications where more than one person uses the microphone in turn
- Large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and promote long life
- Wide frequency range (60Hz - 22kHz) for speech-optimized audio performance
- Slim and rugged metal housing
- W40 M Windscreen for CK41 and CK43 Microphones The AKG W40 M is a microphone windscreen with two layers of mesh and a combination of foam which greatly reduce wind, breath, and pop noise. The W40 M's wiremesh grill can provide protection for the microphone against bumps and minor knocks. The windscreen is compatible with the CK41 and CK43 capsules from the Modular Plus Series.
- GN15 M 12" (30cm) Gooseneck Microphone The GN15 M 12" (30cm) Gooseneck Microphone from AKG is a 6" gooseneck microphone module for permanent and mobile installation. Designed as both thin and rugged, this gooseneck features an LED ring which indicates whether the microphone is on or off. There is also a light ring expander mounting accessory available if improved visibility of the light is needed. Designed for quick setup and maximum flexibility, the microphone comes with a Modular Plus Series system connector, which is fitted with gold-plated contacts. The GN15 is compatible with the CK41, CK43, CK49 capsules and also fits all available phantom power modules. The gooseneck is also equipped with a deep thread groove designed to prevent misalignment and promote long life.
- Designed for discussion/lecture, theater, houses of worship and similar installations
- Designed for reliability and stability
- Contacts for capsule modules designed to prevent contact problems and promote long life
- Integrated switchable LED ring to show system status
- PAE M 3-Pin XLR Phantom Power Module Adapter The PAE M 3-Pin XLR Phantom Power Module Adapter by AKG provides phantom power with a gold-plated three-pin XLR connector. With its wide voltage range the module will perform with most available microphone mixers. The module also features a 250 Hz bass roll off for reduction of structure-borne noise. The PAE M 3-Pin comes with an integrated system connector which securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module. The PAE M is for fixed and mobile installations such as houses of worship and conference rooms.
- For fixed and mobile installation
- Contacts designed to prevent connective problems and ensure extra-long life
- RFI Shield technology provides high immunity to radio-frequency interference
- Accepts 9-52V input for almost any available mixer inputs
- Feeds all DAM+ Series capsules for increased flexibility
- Switchable bass roll off for reduction of body noise and proximity effect
UPC: 885038030676 In the Box Bundle Items CK41 Cardioid Capsule With Windscreen cetyfbsfabxyttbxeabbzsytxfyfabxewruf W40 M Windscreen for CK41 and CK43 Microphones cetyfbsfabxyttbxeabbzsytxfyfabxewruf GN15 M 12" (30cm) Gooseneck Microphone PAE M 3-Pin XLR Phantom Power Module Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG CGN341 E Gooseneck Microphone DAM Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CK41 Cardioid Capsule With Windscreen
| Polar Pattern | Cardioid | | Frequency Range | 60 Hz - 22 kHz | | Sensitivity | 5 mV/Pa | | Equivalent Noise | 30 dB-A | | Signal to Noise Ratio | 64 dB-A | | Dimensions | 0.35 x 0.79" (9 mm x 20 mm) | | Weight | 0.14 oz (3.9 g) | - W40 M Windscreen for CK41 and CK43 Microphones
| Material | Metal | | Outer Diameter | 1.1" / 2.79 cm | | Length | 1.4" / 3.56 cm | - GN15 M 12" (30cm) Gooseneck Microphone
| Connector | Ø 9 mm (0.35 in.) top, 11.3 mm (0.44 in.) bottom | | Lighting System | LED ring | | Dimensions | .24 x 11.8" (6 x 300 mm ) | | Weight | 3.3 oz (94 g) | - PAE M 3-Pin XLR Phantom Power Module Adapter
| Frequency Bandwidth | 20 to 20000 Hz | | Filter | Bass Cut @ 150 Hz | | Recommended Load Impedance | > 2000 Ω | | Phantom Power | 9 to 52 Volts | | Current | 3.5 mA | | Audio Output | Balanced XLR / Male, 3-pin | | Dimensions (HxD) | 2.58 X 0.75" (65.5 x 19.1 mm) | | Weight | 1.52 oz (43 g) |
