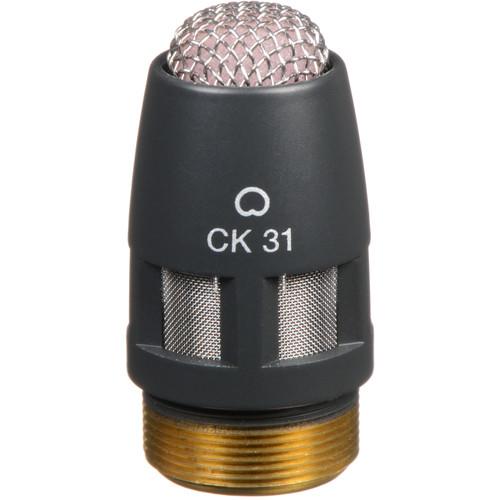

Product description The AKG CK31 is a cardioid microphone capsule designed for use with the DAM (Discreet Acoustics Modular) Series mounting modules. The cardioid polar pattern minimizes noise and ambiance at the off-axis (sides) of the microphone. The result increases directivity and provides high gain-before-feedback response when using near speakers or monitors.The wide frequency response of 50 Hz to 20 kHz minimizes low-frequency noise caused by wind and proximity effect while reproducing audio signal with great accuracy and rich detail. The module design allows quick and easy capsule replacement for added flexibility. The package includes a special two-part windscreen, which efficiently reduces wind and pop noise. - Modular Design

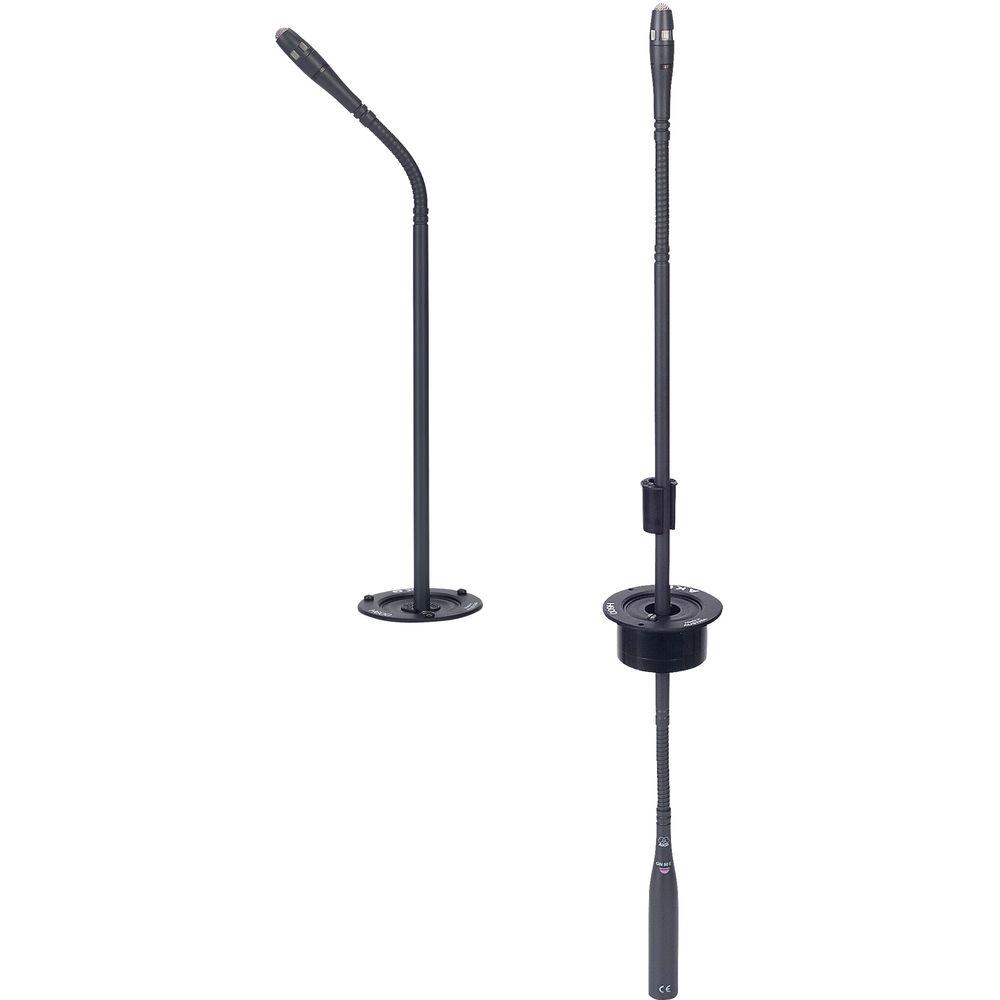

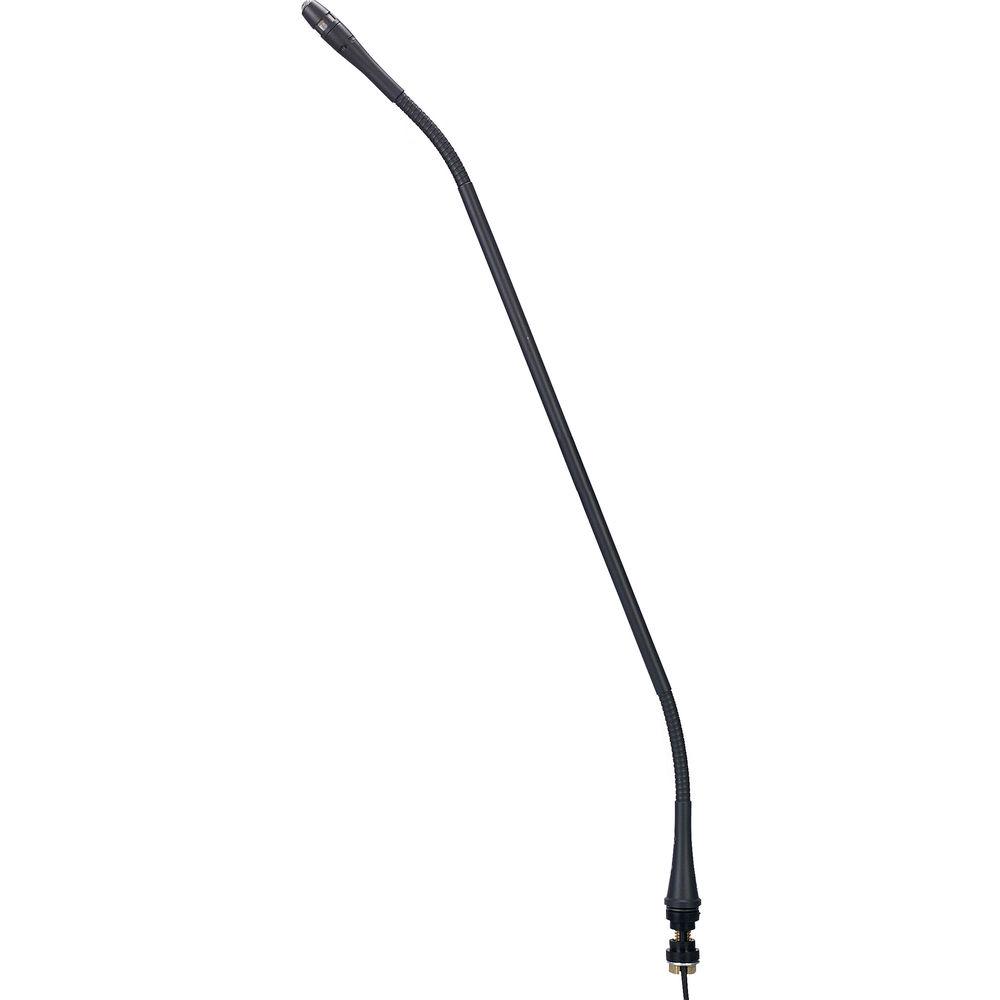

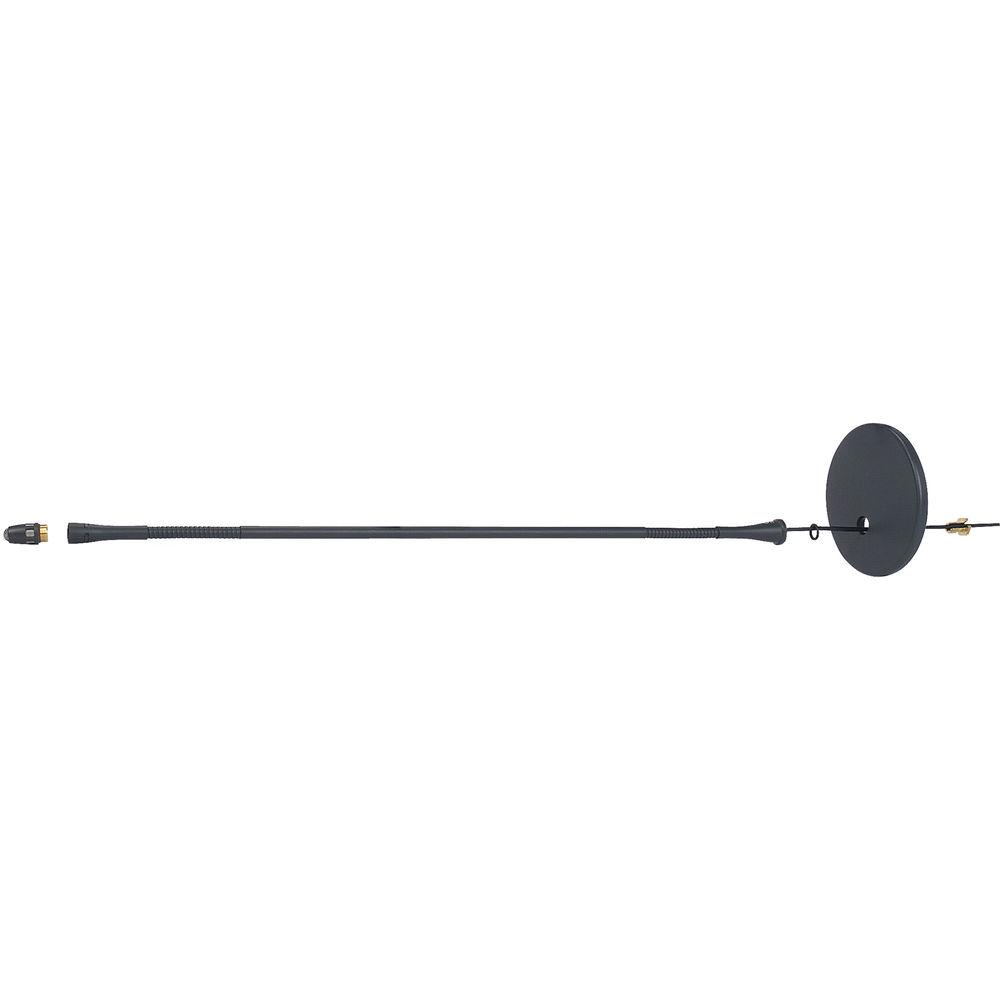

- The CK31 is designed with gold-plated contacts with deep threads for use with the DAM (Discreet Acoustics Modular) Series mounting modules. The modular design offers quick capsule replacement and enhances flexibility.
- Cardioid Polar Pattern
- The cardioid polar pattern minimizes noise and ambient audio signal at the off-axis (sides) of the microphone capsule.
- Wide Frequency Response
- The wide frequency response of 50 Hz to 20 kHz offers smooth, accurate audio reproduction while minimizing low-frequency noise.
- Dual-Layer Wind Protection
- The included dual-layer windscreen provides a primary layer, which disperses the incoming wind stream while the second layer further diffuses wind flow before reaching the diaphragm.
UPC: 885038003021 In the Box AKG CK31 Cardioid Microphone Capsule for DAM Series Mounting Modules W30 Foam Windscreen for CK31/ CK32/ CK33 dffuwbareuyqxxrszcvrwbbcdxfuaxqdfta Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG CK31 Cardioid Microphone Capsule for DAM Series Mounting Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

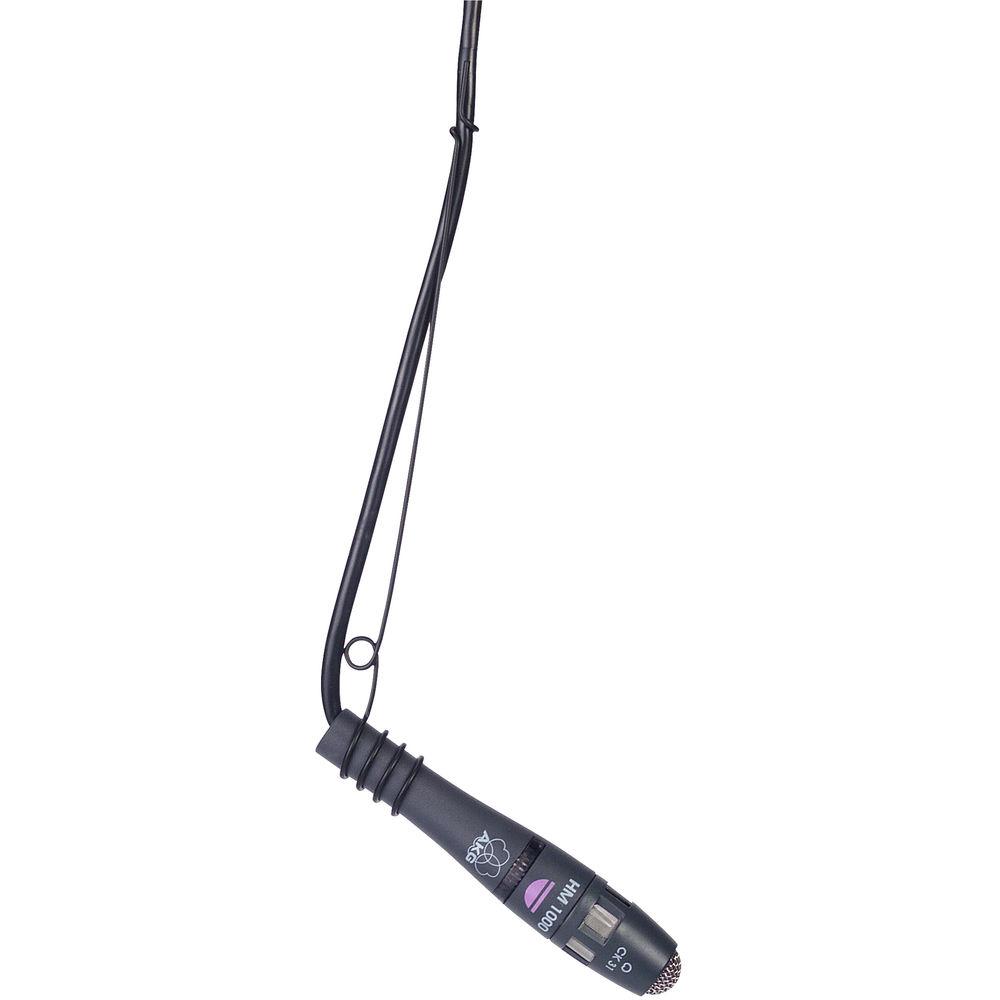

Technical parametersAKG CK31 Specs | Transducer | Condenser Prepolarized | | Polar Pattern | Cardioid | | Frequency Response | 50 Hz to 20 kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | 73 dB (A-weighted) | | Maximum Input Sound Level | 125 dB (1% THD) | | Power Requirements | 9 to 52 Volts Phantom Power to IEC 61938 (requires DPA-P or DPA adapter included in GN and HM 1000 series modules) | | Output Impedance | < 600 Ohms | | Rated Load Impedance | > 2 kOhms | | Output Connectors | Threaded termination for use with GN and HM Series modules | | Low Frequency Roll-Off | No | | Dimensions (LxDiameter) | 0.8 x 0.5" / 20.0 x 13.5 mm | | Weight | 0.2 oz / 5.0 g | | | | Package Weight | 0.345 lb | | Box Dimensions (LxWxH) | 6.6 x 4.95 x 2.45" |
