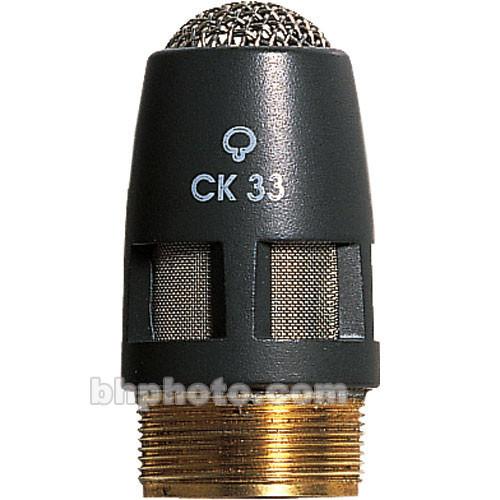

User Manual for AKG CK33 Modular Hyper-Cardioid Microphone Capsule for GN Series, HM 1000 and LM 3 Microphone Housings Click to enlarge the picture
Contents of the user manual for the AKG CK33 Modular Hyper-Cardioid Microphone Capsule
- Product category: Modular Microphone Components AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Modular Microphone Components
|
User manual for the AKG CK33 Modular Hyper-Cardioid Microphone Capsule contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The AKG CK33 is a modular hyper-cardioid microphone capsule designed for use with the AKG GN series, HM 1000, and LM 3 gooseneck, hanging and lavalier microphone fixtures. The hyper-cardioid polar pattern minimizes noise and ambiance at the off-axis (sides) of the microphone. The result increases directivity and provides high gain-before-feedback response when using near speakers or monitors.The wide frequency response of 50Hz to 20kHz minimizes low frequency noise caused by wind and proximity effect while reproducing audio signal with great accuracy and rich detail. The dual wind screen design employs an outer layer which disperses initial wind stream while the second layer further diffuses the wind stream before reaching the diaphragm. The module design allows quick and easy capsule replacement for added flexibility. - Modular Design
- The CK33 is designed with a threaded connection for use with the GN series, HM 1000 or LM 3 microphone fixtures. The modular design offers quick capsule replacement and enhances flexibility.
- Hyper-Cardioid Polar Pattern
- The hyper-cardioid polar pattern offers a 90 degree pick up area. The result minimizes noise and ambient audio signal at the off-axis (sides) of the microphone capsule.
- Wide Frequency Response
- The wide frequency response of 50Hz to 20kHz offers smooth, accurate audio reproduction while minimizing low frequency noise.
- Dual Layer Wind Protection
- The dual layer windscreen provides a primary layer which disperses the incoming wind stream while the second layer further diffuses wind flow before reaching the diaphragm.
UPC: 885038003045 In the Box AKG CK33 Modular Hyper-Cardioid Microphone Capsule for GN Series, HM 1000 and LM 3 Microphone Housings 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG CK33 Modular Hyper-Cardioid Microphone Capsule for GN Series, HM 1000 and LM 3 Microphone Housings in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG CK 33 Specs | Transducer | Condenser Prepolarized | | Polar Pattern | Hyper-cardioid | | Frequency Response | 50Hz to 20kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | > 73dB (A-weighted) | | Maximum Input Sound Level | 125dB (1% THD) | | Power Requirements | 9 to 52 Volts Phantom Power
requires DPA adapter included in GN, HM or LM3 series modules | | Output Impedance | Electrical Impedance: < 600 ohms | | Output Connectors | Threaded termination for use with GN, HM or LM3 series modules | | Low Frequency Roll-Off | No | | Dimensions | .8 x .5" (20 x 13.5mm) (Length x Diameter) | | Weight | not specified by manufacturer | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 6.6 x 4.8 x 2.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
