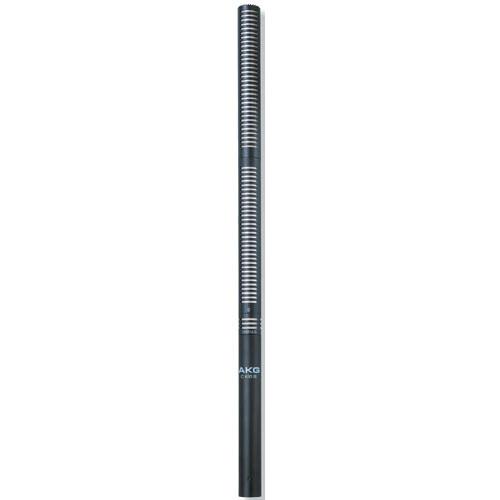

User Manual for AKG CK69 - Dual Hyper-Cardioid Directional Shotgun Condenser Interchangeable Microphone Capsules for C480B Click to enlarge the picture
Contents of the user manual for the AKG CK69 - Dual Hyper-Cardioid Directional
- Product category: Modular Microphone Components AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Modular Microphone Components
|
User manual for the AKG CK69 - Dual Hyper-Cardioid Directional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description Optimized for use with the C480B. Two shotgun capsules in one, with quick and easy conversion from long to short shotgun applications without compromising sonic integrity. In its long shotgun configuration, the CK 69 will deliver perfect results for outdoor applications - getting sounds in sync with picture - or indoor front of stage recording/reinforcement from approximately 6 to 8 m (20 to 24 ft.). Unscrew the front half of the interference tube and the same capsule becomes a short shotgun for use in TV, film and video close-up work.
Additionally, the short shotgun mode resolves the problems associated with performing interviews in noisy environments. The CK 69 operates flawlessly in high humidity environments, and windscreens are provided for both long and short configurations. Convenient, quiver-type carrying case accommodates capsules, powering module, and windscreens. Includes original frequency response curves. Matte black finish. - Dual (long and short) shotgun element for use with C480B module
- Self Noise Floor is Less than 11 dB-A
- Three Position Attenuation Switch - 0, +6 and -10 dB
- Switchable low-frequency cuts at 150 Hz and 75 Hz at 12 dB/octave Pad and Low Cut switches are found on C480B module
- Sleek, Black, Durable Finish
- Crystal Clear Sound Reproduction
In the Box AKG CK69 - Dual Hyper-Cardioid/Directional Shotgun Condenser Interchangeable Microphone Capsules for C480B 2 Different Windscreens (Accomodates the two different lenghts) W48 & W49 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG CK69 - Dual Hyper-Cardioid Directional Shotgun Condenser Interchangeable Microphone Capsules for C480B in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG CK69 Specs | Transducer | Condenser | | Polar Pattern | Hypercardioid/Directional | | Frequency Response | 20 Hz - 18 kHz | | Dynamic Range (Typical) | 123/129/131 dB, (A-Weighted) | | Signal-to-Noise Ratio | 83/85/79 dB, (A-Weighted) | | Maximum Input Sound Level | 134/140/142 dB for 0.5% THD | | Power Requirements | Phantom Power, 48v (to DIN 45596) | | Output Impedance | 150 Ohms | | Output Connectors | Screw-On, Proprietary Connector to C480B
C480B then Terminates to an XLR-3M Type Connector | | Pad | Yes, (0, +6 and -10 db Found on C480B Module) | | Low Frequency Roll-Off | Yes, (Switchable Low-Frequency Cuts 150 Hz and 75 Hz at 12dB, Found on C480B Module) | | Applications | ENG, Videograpy, Film, Stage, etc. | | Dimensions | 6.9/12.5 x .8" (176/317 x 21mm) LxDiameter | | Weight | 6.9" L = 2.5 oz. (70 g)
12.5" L = 17.7 oz. (500 g) | | | | Package Weight | 1.29 lb | | Box Dimensions (LxWxH) | 22.0 x 3.0 x 3.0" |
