User Manual for AKG CK80 Modular Hypercardioid Shotgun Capsule for GN Series, HM 1000 and LM 3 Microphone Housings Click to enlarge the picture
Contents of the user manual for the AKG CK80 Modular Hypercardioid Shotgun Capsule
- Product category: Modular Microphone Components AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Modular Microphone Components
 |
User manual for the AKG CK80 Modular Hypercardioid Shotgun Capsule contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

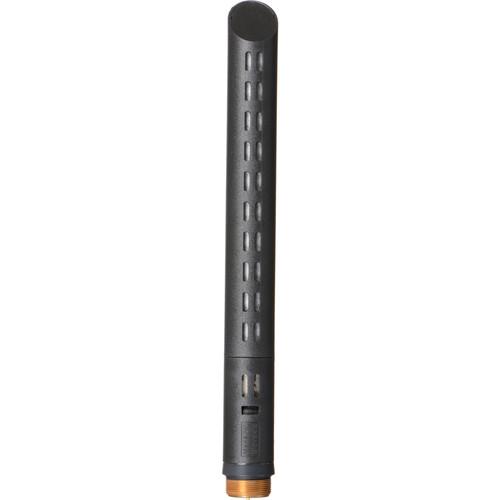

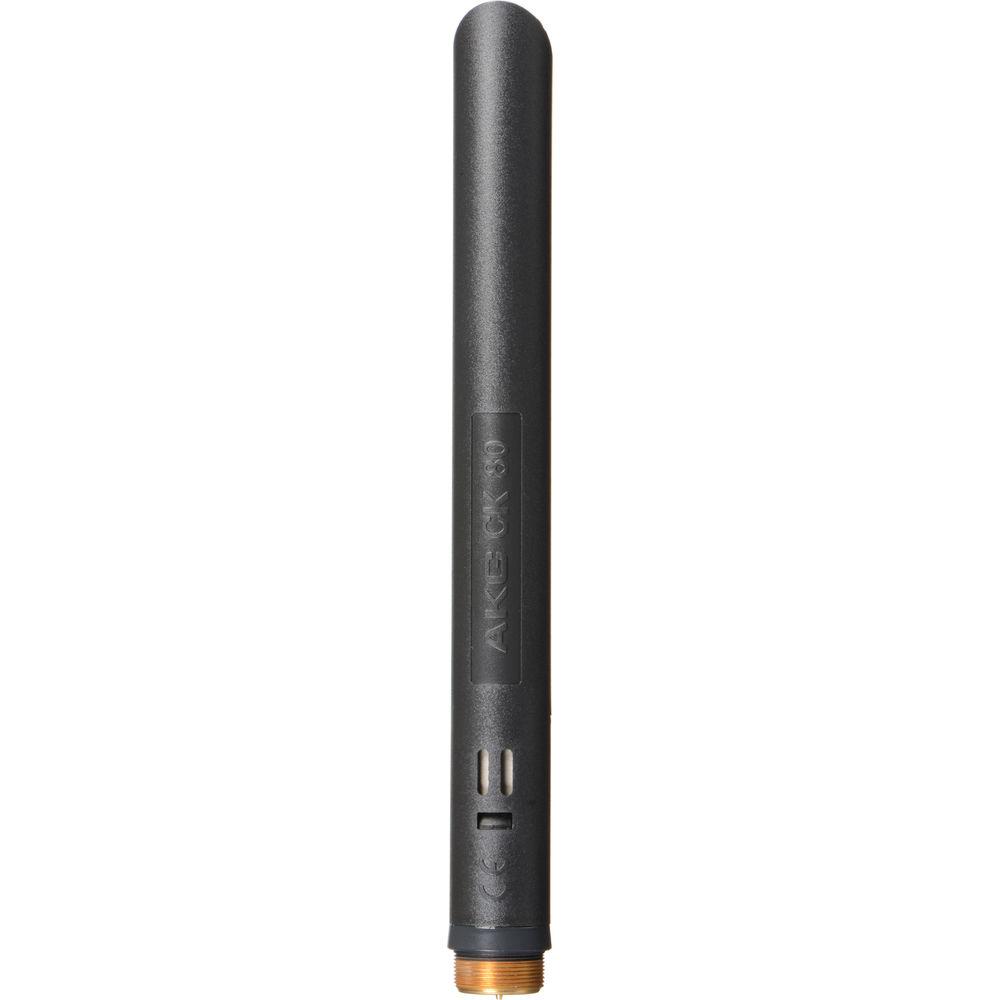

Product description The AKG CK80 is a modular hypercardioid shotgun microphone capsule designed for use with the AKG GN series, HM 1000, and LM 3 gooseneck, hanging and lavalier microphone fixtures. The hypercardioid polar pattern minimizes noise and ambiance at the off-axis (sides) of the microphone. The result increases directivity and provides high gain-before-feedback response when using near speakers or monitors.The CK80 features pristine detail and accurate reproduction. The dual wind screen design employs an outer layer which disperses initial wind stream while the second layer further diffuses the wind stream before reaching the diaphragm. The module design allows quick and easy capsule replacement for added flexibility. - 80 Degree Pickup Angle
- The CK80 shotgun capsule features a linear 80 degree pick up pattern for an ultra focused pick up at long range.
- Modular Design
- The CK80 is designed with a threaded connection for use with the GN series, HM 1000 or LM 3 microphone fixtures. The modular design offers quick capsule replacement and enhances flexibility.
- Gold Plated Self Cleaning Connector Pins
- Gold platted connector pins achieve better conductivity and provide better overall audio quality.

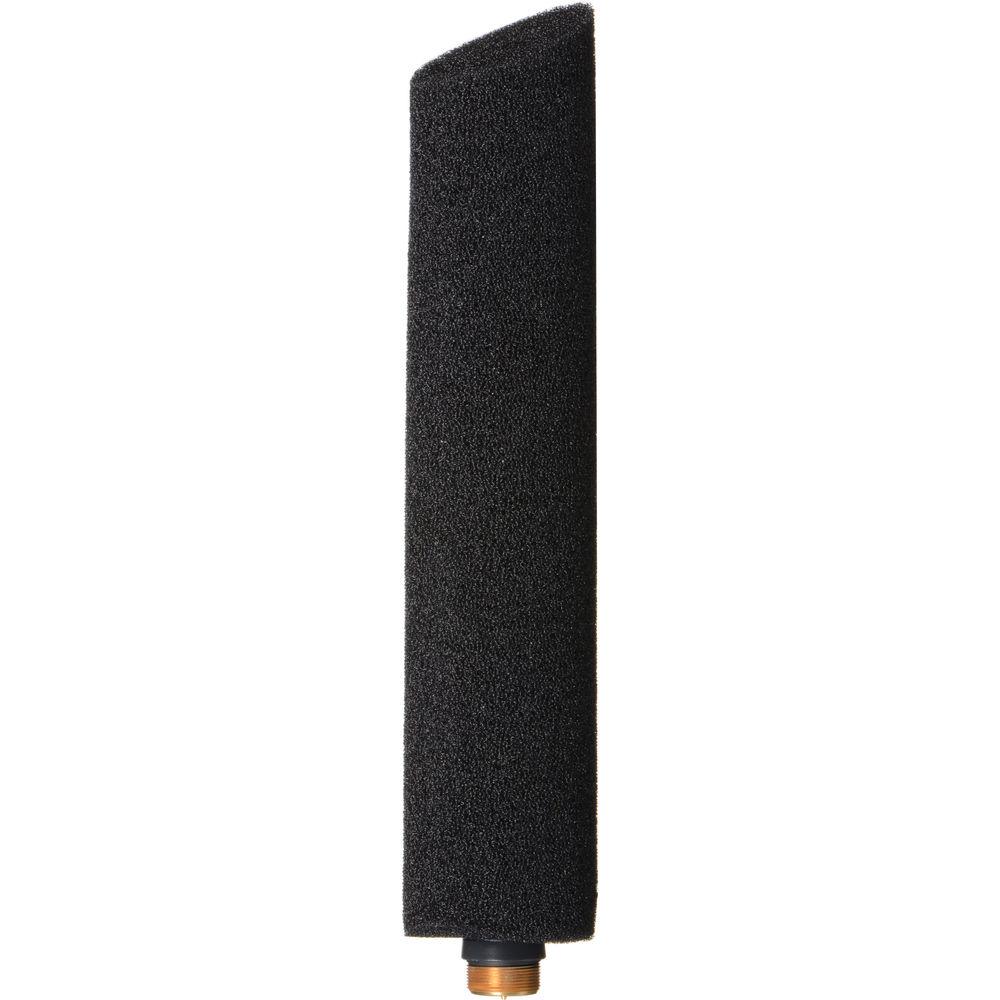

- Dual Layer Wind Protection
- The dual layer windscreen provides a primary layer which disperses the incoming wind stream while the second layer further diffuses wind flow before reaching the diaphragm.
UPC: 885038003946 In the Box AKG CK80 Modular Hypercardioid Shotgun Capsule for GN Series, HM 1000 and LM 3 Microphone Housings Windscreen 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG CK80 Modular Hypercardioid Shotgun Capsule for GN Series, HM 1000 and LM 3 Microphone Housings in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG CK80 Specs | Transducer | Condenser Prepolarized | | Polar Pattern | Hypercardioid | | Frequency Response | 60Hz to 15kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | 77dB (A-weighted) | | Maximum Input Sound Level | 125dB (1% THD) | | Power Requirements | 9 to 52 Volts Phantom Power
requires DPA adapter included in GN, HM or LM3 series modules | | Output Impedance | Electrical Impedance: <=600 ohms | | Output Connectors | Threaded termination for use with GN, HM or LM3 series modules | | Low Frequency Roll-Off | No | | Dimensions | 4.8 x .5" (123 x 13.5mm) (Length x Diameter) | | Weight | 0.5 oz (15 g) | | | | Package Weight | 0.445 lb | | Box Dimensions (LxWxH) | 8.5 x 5.75 x 2.75" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
