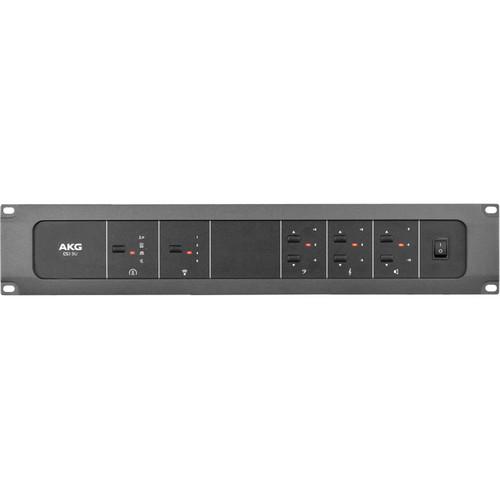

User Manual for AKG CS3 BU Conference Base Unit Click to enlarge the picture
Contents of the user manual for the AKG CS3 BU Conference Base Unit
- Product category: Audio Conferencing AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Audio Conferencing
|
User manual for the AKG CS3 BU Conference Base Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The AKG CS3 BU Conference Base Unit is the base unit for the CS3 conference system which is designed for fixed and mobile conference applications, and provides all the necessary inputs and outputs to manage a conference for up to 60 microphone stations. It is the interface to all audio devices in a meeting room and offers a RS-232 interface to connect an optional camera control system (sold separately).The CS3 BU Base Unit can even work in a stand-alone mode in 4 selectable operating modes, namely, Override, Normal, Free, and Request, thereby offering maximum flexibility in conference management. With the NOM limitation function, the maximum number of active stations can be programmed to 1, 2, 4, or 6 simultaneous open microphones. Adjustable bass, treble, and master volume are also featured.If necessary, two CS3 BU units can be combined to control a large conference system with up to 120 microphone stations. - All-In-One Conference Controller
- For discussion systems of up to 60 stations per base unit
- Four Selectable Operating Modes
- For flexible conference management
- Connects to All Relevant Devices
- Can be connected to a PA, recording device, external audio and camera control systems
- Extension Interface
- Combines 2 units to control up to 120 stations
- Compact 19" Housing
- For easy rack mounting
- Additional Features
- Capable of supporting 60 microphone units
Specific 8-pin DIN plug
Bus connection mode
2-Channel mono audio inputs
2-Channel mono original audio outputs
Adjustable maximum number of active microphones with 1,2,4, and 6 options
Four conference modes: Override, Normal, Free, and Request
Adjustable bass, treble, and master volume
Video tracing function through the central control output
Remote telephone conference along with telephone coupler UPC: 885038035633 In the Box AKG CS3 BU Conference Base Unit Power Cords EU, US, UK, China Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG CS3 BU Conference Base Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG CS3 BU Specs | Power Supply | SMPS 100 to 240V (50 Hz / 60 Hz) 3 A | | Consumption | Static: 13 W
Nominal Power: 320 W | | Output Power | ≤ 90 W / 24 V each way | | Mode | Balanced / Unbalanced | | Frequency Response | 50 Hz to 20 kHz | | S/N Ratio | >80 dB | | THD | Distortion: <0.5%
Distortion at Overload: <1% | | Crosstalk | Attenuation >50 dB (1 kHz) | | Operating Temperature | 32 to 104°F (0 to 40°C) at 95% relative humidity (non-condensing) | | Dimensions (L x W x H) | 18.9 x 11.0 x 3.4" (482.0 x 281.0 x 88.4 mm) | | Weight | 11.4 lb (5.2 kg) | | | | Package Weight | 14.8 lb | | Box Dimensions (LxWxH) | 21.0 x 15.0 x 8.0" |
