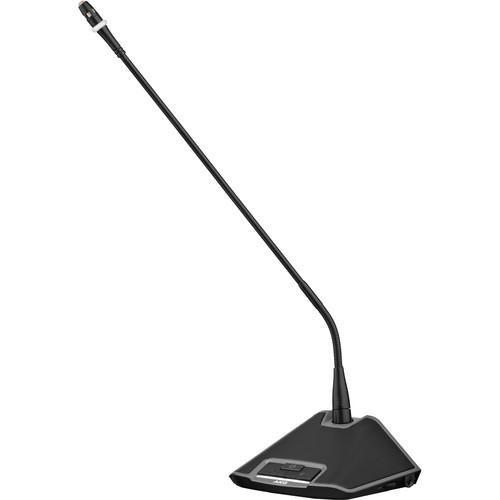

User Manual for AKG CS3 CU Chairman Microphone Station with 50cm Gooseneck Click to enlarge the picture
Contents of the user manual for the AKG CS3 CU Chairman Microphone Station
- Product category: Audio Conferencing AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Audio Conferencing
|
User manual for the AKG CS3 CU Chairman Microphone Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The AKG CS3 CU Chairman Microphone Station with 50cm Gooseneck is designed for fixed and mobile conference applications. The CS3 CU chairman unit is a basic microphone unit for the CS3 system with 2 operating modes. In Priority Call mode, the user can manually mute all connected delegate stations. In the Next in Line mode, the CS3 CU automatically activates the next delegate station in the waiting list. The station offers a Speak Button, a Priority Button, an Approve Button a built-in speaker and 2 x 3.5mm stereo jacks to connect headphones for up to 2 delegates, as well as a connector to other microphone units.The CS3 CU Chairman Microphone Station comes with a robust interface connector, which makes it easy to interchange the station's microphone. The included detachable microphone features a CS521 cardioid condenser capsule on a 50cm long gooseneck. A 2m long Plug & Play connector cable is also included.The CS3 CU can approve the speaking request from the CS3 DU unit (sold separately). The maximum number of active microphones, conference modes, and connection position of the CS3 CU unit are not limited. Moreover, it also has the privilege of muting all other delegate units in the CS3 system. - Chairman Functions with Priority and Next in Line buttons
- Gives full control over the entire conference/system
- Interchangeable Microphones
- Maximum flexibility for any type of conference situation
- Built-In Speaker
- For near field reinforcement
- Two Separate 3.5mm Stereo Jacks
- To connect headphones for up to 2 delegates
- Plug & Play Set
- Includes all components for a quick set-up
- Other Features
- Capable of driving 30 microphone units for a single channel
Adopts specific 8-pin high-quality DIN connector to ensure the secure connection and stable system operation
Packaged with 2m connecting cable
Comes with a 2W built-in speaker
Comes with 2 ports of 3.5mm headphone jacks and a master volume adjustment knob
Powered by CS3 BU (sold separately)
Automatically mutes the built-in speaker when the microphone is activated for speaking to avoid feedback
Connects in Bus Connection mode, which is simple and convenient
Provides approve function to activate the CS3 DU microphone after sending speaker request
No limitation on the connection number of microphone units
Provides priority function for whole control of the discussion
No limitation on the connection position of the CS3 CU UPC: 885038035466 In the Box AKG CS3 CU Chairman Microphone Station with 50cm Gooseneck Cable Microphone Windscreen Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG CS3 CU Chairman Microphone Station with 50cm Gooseneck in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG CS3 CU50 Specs | Power Supply | 24 VDC supplied by the Base Unit | | Power Consumption | 3 W | | Loudspeaker Power | 2 W | | Signal / Noise | >80 dB | | Frequency Response | 50 Hz to 20 kHz | | Intercom | Intercommunication: DIN 8‐pole | | Headphone Output | 9 dBu, 8 to 32 Ω, 3.5 mm | | Crosstalk | Attenuation: >80 dB | | THD | <0.1 % | | Operating Temperature | 32 to 104°F (0 to 40°C) at 95% relative humidity (non-condensing) | | Dimensions (L x W x H) | 6.6 x 5.6 x 2.4" (170.0 x 143.0 x 63.0 mm) | | Weight | 2.2 lb (1.0 kg) | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 23.0 x 9.9 x 6.5" |
