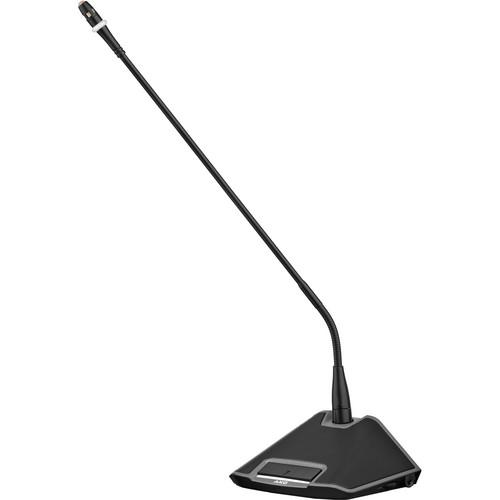

User Manual for AKG CS3 DU Delegate Microphone Station with 50cm Gooseneck Click to enlarge the picture
Contents of the user manual for the AKG CS3 DU Delegate Microphone Station
- Product category: Audio Conferencing AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Audio Conferencing
|
User manual for the AKG CS3 DU Delegate Microphone Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The AKG CS3 DU Delegate Microphone Station with 50cm Gooseneck is designed for fix installed and mobile conference applications.
The CS3 DU Microphone Station is the basic delegate unit for the CS3 conference systems. It provides a Speak Button, an integrated loudspeaker as well as two 3.5mm stereo headphone outputs and can be used for up to 2 delegates. Depending on the selected operating mode, the PTT key enables the speaker to directly switch on the microphone or to enter the system waiting list. The user can listen to the conference speech through the built-in speaker or headphone.
The CS3 DU comes with a robust interface connector, which makes it easy to interchange the station's microphone. The detachable microphone features a CS521 cardioid condenser capsule on a 50cm long gooseneck. The CS3 DU set-box contains a 2m long Plug & Play connector cable compatible with the CS521 cardioid condenser capsule. - Intuitive and Easy-to-Use Delegate Station with a PTT button
- Maximum flexibility for any type of conference situation
- Interchangeable Microphones
- For near field reinforcement
- Built-in Speaker
- For up to 2 delegates
- Two Separate 3.5mm Stereo Jacks to Connect Headphones
- For a quick set-up
- Other Features
- Capable of driving 30 microphone units for a single channel
Adopts specific 8-pin DIN connector to ensure a secure connection and stable system operation
Packaged with a 2m connecting cable
Comes with a 2W built-in speaker
Comes with 2 ports of 3.5mm headphone jacks and a master volume adjustment knob
Powered by CS3 BU (sold separately)
Automatically mutes the built-in speaker when the microphone is activated for speaking to avoid whistle
Connects in simple and convenient Bus Connection mode UPC: 885038035459 In the Box AKG CS3 DU Delegate Microphone Station with 50cm Gooseneck Cable Microphone Windscreen Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG CS3 DU Delegate Microphone Station with 50cm Gooseneck in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG CS3 DU 50 Specs | Power Supply | 24 VDC supplied by the base unit (sold separately) | | Power Consumption | 3 W | | Loudspeaker Power | 2 W | | Signal / Noise | >80 dB | | Frequency Response | 50 Hz to 20 kHz | | Intercom | Intercommunication: DIN 8‐pole | | Headphone Output | 9 dBu, 8 to 32 Ω, 3.5 mm | | Crosstalk | Attenuation: >80 dB | | Harmonics | Harmonic Distortion: <0.1 % | | Operating Temperature | 0 to 40°C at 95% relative humidity (noncondensing) | | Dimensions (L x W x H) | 6.6 x 5.6 x 2.4" (170.0 x 143.0 x 63.0 mm) | | Weight | 2.2 lb (1.0 kg) | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 23.0 x 9.5 x 6.5" |
