User Manual for AKG CSX BIR10 10-Channel Breakout Box and Infrared Base Unit Click to enlarge the picture
Contents of the user manual for the AKG CSX BIR10 10-Channel Breakout Box
- Product category: Audio Conferencing AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Audio Conferencing
|
User manual for the AKG CSX BIR10 10-Channel Breakout Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

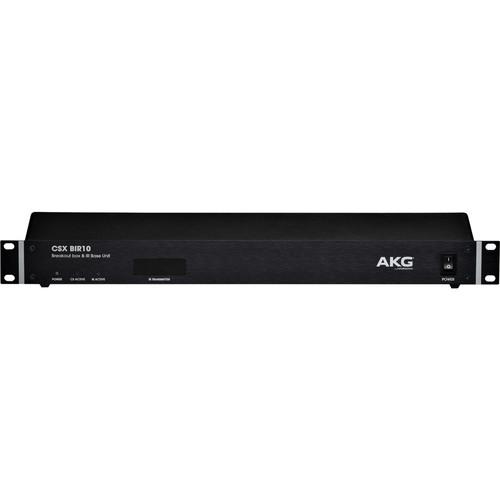

Product description The CSX BIR10 10-Channel Breakout Box and Infrared Base Unit from AKG is an infrared central control unit for the CSX IRS10 infrared language distribution system. The system is designed to operate in two modes, both feeding up to 10 channels. First, the CSX BIR10 can be used as part of AKG´s CS5 conference system. In this mode the unit acts as infrared modulator and/or as breakout box to provide channels of the CS5 data ring to external devices via RCA connectors on the back panel. Second, as a standalone IR system, to feed external devices such as a wireless system.
It is also possible to mix inputs - take a few external sources and a few from the CS5 data ring. Four BNC connectors are used for four strings of IR radiators that can be daisy chained. Four IR LED´s provide the infrared signal in the technician room to enable the technician to control what is transmitted in the venue hall. The CSX BIR10 is easily expandable to handle virtually any size room. - Digital Transmission with PPM technology - effective audio and radiation quality control
- For CS5 or standalone system, works with all types of analog inputs
- Unlimited expansion of radiators for any room size
- Built in IR LED´s to provide IR signal in technician room
- Mixed inputs from external or CS5 possible to enables use of external devices
- Suitable for conferencing, tour guides, and assistive listening
In the Box AKG CSX BIR10 10-Channel Breakout Box and Infrared Base Unit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG CSX BIR10 10-Channel Breakout Box and Infrared Base Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG CSX BIR10 Specs | Compatibility | CS5 digital conference system | | Frequency Range | 20 Hz - 20 kHz | | S/N Ratio | 90 dBA | | Connectors | 2 x RJ-45 Ethernet female, input
4 x BNC male, IR output
10 x RCA female, unbalanced audio input
10 x RCA female, unbalanced audio output | | Impedance | Input: 20 kΩ
Output: 1 kΩ | | Radiated Power | 12.5 W | | Power Supply | 48 V | | Dimensions | 1.7 x 19.0 x 4.3" (4.4 x 48.2 x 10.8 cm) | | Weight | 51 oz (1.450 kg) |
