User Manual for AKG CSX IRR10 10-Channel Conferencing Infrared Pocket Receiver Click to enlarge the picture
Contents of the user manual for the AKG CSX IRR10 10-Channel Conferencing Infrared
- Product category: Audio Conferencing AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Audio Conferencing
 |
User manual for the AKG CSX IRR10 10-Channel Conferencing Infrared contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

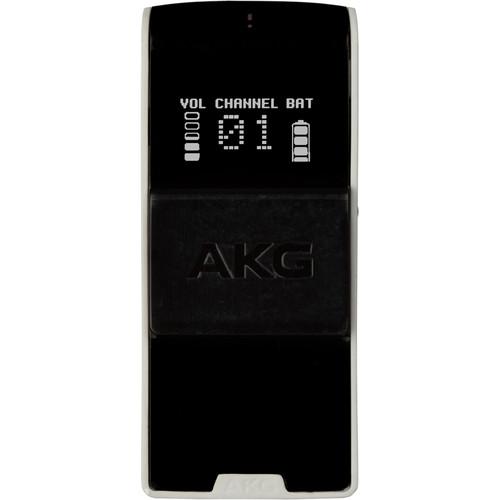

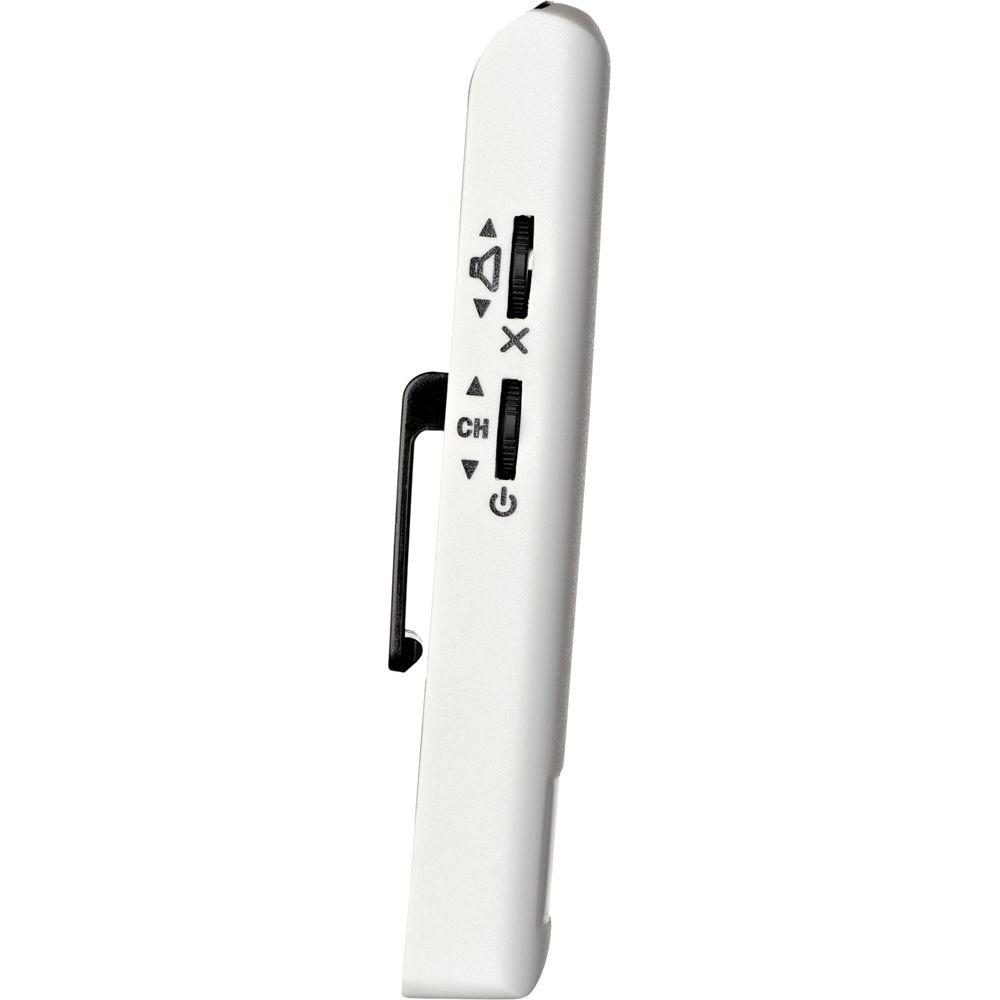

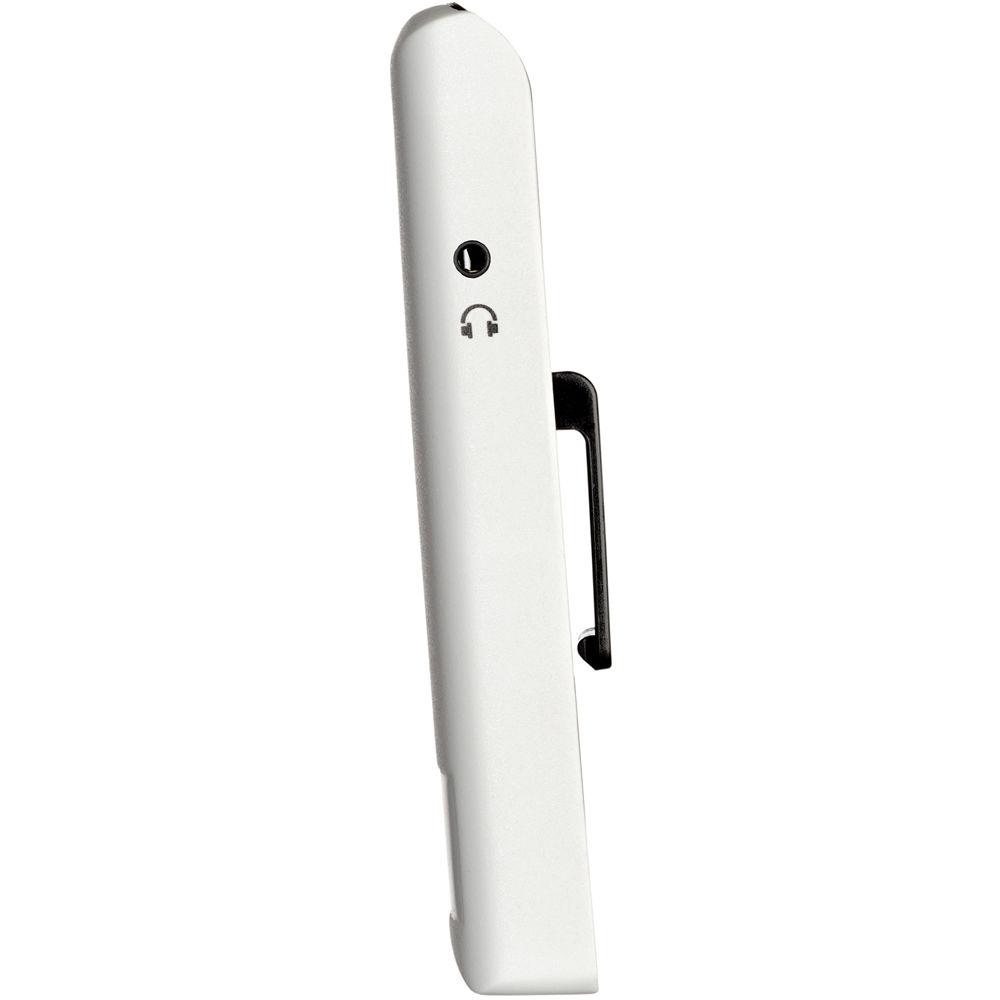

Product description The CSX IRR10 Pocket Receiver from AKG is a reference conferencing infrared receiver that supports up to ten language channels. A large OLED display clearly shows all required information for output volume, channel number and battery status. With two jog dial selectors, you can select the requested channel and adjust the output level to the headphones. A standard 3.5mm stereo jack plug enables the use of any kind of headphones. To charge the AA NiMH rechargeable batteries you can either use a standard USB charger, or the CSX CU50 charging case for 50 units (sold separately). - Digital transmission using PPM modulation, prevents fluorescent-light interference for effective audio and radiation quality control
- For CS5 or as standalone system
- Receives up to ten different languages for multilingual conference applications
- Up to 20 hour operation with only 2 x AA standard rechargeable batteries
- Integrated clip on front panel for tight fit in the pocket of a shirt
- Suitable for conferencing, tour guides, and assistive listening
In the Box AKG CSX IRR10 10-Channel Conferencing Infrared Pocket Receiver 2 x NiMH AA Battery Neckband Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG CSX IRR10 10-Channel Conferencing Infrared Pocket Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG CSX IRR10 Specs | Impedance | 32 ohms, 48 mW | | Frequency Response | 150 to 5100 Hz | | Output Level | > 55 dB | | View Angle | 140° | | S/N Ratio | > 61 dBA | | Harmonic Distortion | < 0.36 % @ 1 kHz | | Connectors | 3.5 mm TRS phone jack female, headphone output

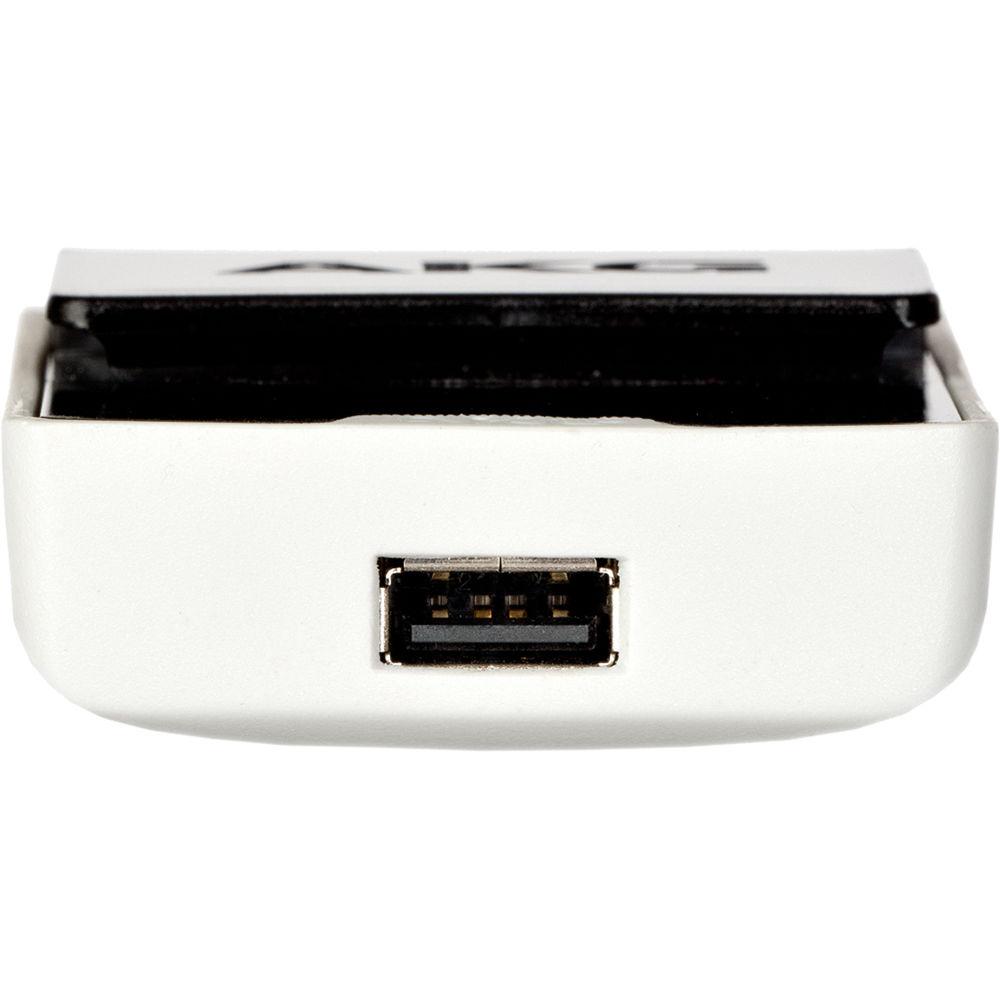

USB, power input | | Controls | Channel dial
Volume dial | | Indicators | OLED display | | Battery Type | 2 x NiMH AA (2700 mA) | | Operating Time | 20 hours | | Charging Time | 6 hours | | Dimensions | 5.2 x 2.2 x 0.9" (13.2 x 5.7 x 2.3 cm) | | Weight | 5 oz (140 g) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
