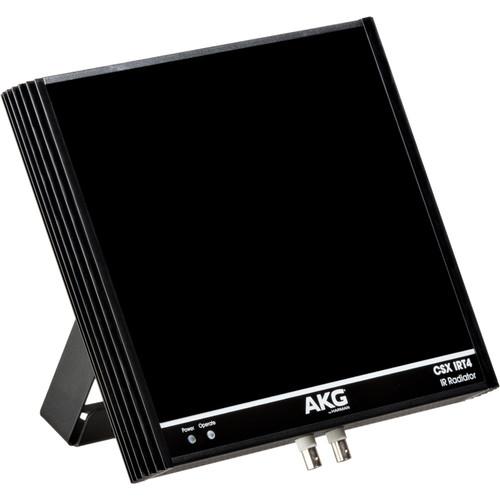

User Manual for AKG CSX IRT4 10-Channel Infrared Near Field Transmitter Click to enlarge the picture
Contents of the user manual for the AKG CSX IRT4 10-Channel Infrared Near
- Product category: Audio Conferencing AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Audio Conferencing
|
User manual for the AKG CSX IRT4 10-Channel Infrared Near contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The CSX IRT4 10-Channel Infrared Near Field Transmitter from AKG transmits up to ten language channels designed for near field use, with a radiation angle of ±60° to cover the distance of up to 115'. Using PPM (Pulse Phase Modulation) technology, all LED´s cover the same area and distance, regardless the number of channels needed in an application. Hence, exact coverage is ensured even if channel needs change.
The CSX IRT4 can be cascaded almost without limit, due to a signal refresher built in into the transmitter, enabling coverage of very large areas. The transmitter's design eliminates the needs for cooling fans, which also eliminates noise. Clearly visible LED´s make the status readable from the distance, enhancing security for onsite technicians. - For CS5 or as standalone system, works with all types of analog inputs
- Mounting bar for wall or ceiling mount
- Suitable for conferencing, tour guides, and assistive listening
In the Box AKG CSX IRT4 10-Channel Infrared Near Field Transmitter (Light Angle ±60°) Mounting Bar Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG CSX IRT4 10-Channel Infrared Near Field Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG CSX IRT4 Specs | Compatibility | CS5 conference system | | Power Supply | 100 - 240 VAC, 1.5 A | | Wavelength | 870 nM | | Radiated Power | 12.5 W | | Angle of Light Beam | ±60° @ -6 dB | | Effective Distance | 115' (35 m) | | Power Consumption | 100 W, 2.5 A maximum | | Dimensions | 10.2 x 11.0 x 2.8" (26 x 28 x 7 cm) | | Weight | 8.8 lb (4 kg) |
