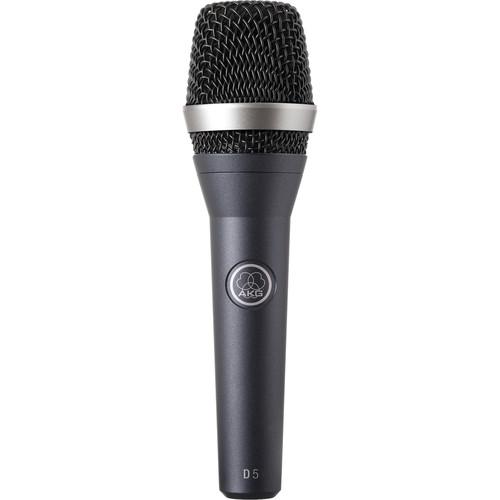

User Manual for AKG D5 Handheld Supercardioid Dynamic Vocal Microphone Click to enlarge the picture
Contents of the user manual for the AKG D5 Handheld Supercardioid Dynamic Vocal
- Product category: Dynamic Microphones AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Dynamic Microphones
|
User manual for the AKG D5 Handheld Supercardioid Dynamic Vocal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description - Laminated Varimotion Diaphragm
The AKG D5 is a handheld supercardioid dynamic microphone designed to accurately capture vocals and instruments for artists and audio engineers in clubs, concert venues, and houses of worship. The laminated Varimotion diaphragm exhibits a frequency-independent supercardioid polar pattern for excellent off-axis rejection of audio across the frequency spectrum. This allows high-gain-before-feedback and reduces stage bleed through the mic. Handling noise is minimized via the dual-shock capsule mount while the integrated pop filter impedes plosives and wind noise.The 70 Hz to 20 kHz frequency response and maximum SPL of 147 dB at 1% THD ensure reliable reproduction of various sources from loud vocals to punchy snares. The D5 boasts a rugged die-cast housing and a spring-steel, wire-mesh grille. It ships with a stand adapter and storage bag. - Rugged die-cast housing for tour-ready durability
- Frequency-independent supercardioid polar pattern provides a focused pickup pattern for enhanced suppression of feedback and noise, allowing high-gain-before-feedback
- Dual-shock mount protects the capsule and minimize handling noise
- Integrated pop filter reduces plosives and wind noise
- Patented AKG laminated Varimotion diaphragm accurately reproduces vocals and a variety of instruments
UPC: 885038018575 In the Box AKG D5 Handheld Supercardioid Dynamic Vocal Microphone Microphone Bag SA 61 Stand Adapter ryztsfyxu Limited 2-Year Warranty User Manual PDF 451.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG D5 Handheld Supercardioid Dynamic Vocal Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG D5 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Supercardioid | | Frequency Range | 70 Hz to 20 kHz | | Equivalent Noise Level | 18 dB A-Weighted | | Maximum SPL | 147 dB SPL | | Pad | None | | Impedance | 600 Ohms | | Load Impedance | 2000 Ohms | | Sensitivity | 2.6 mV/Pa | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 7.28" / 185 mm | | Diameter | 2.01" / 51 mm | | Weight | 11.29 oz / 320 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.1 x 5.6 x 2.6" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
