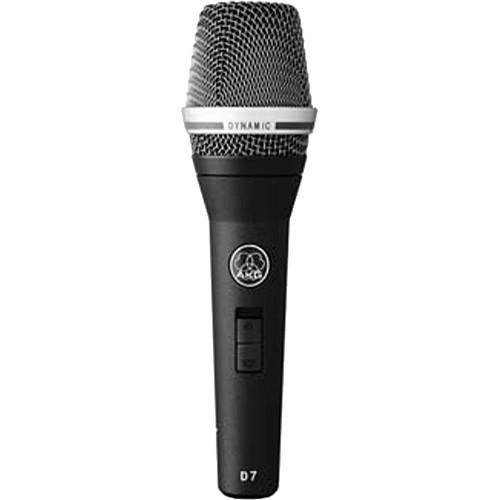

User Manual for AKG D7 S Reference Handheld Dynamic Vocal Microphone with On Off Switch Click to enlarge the picture
Contents of the user manual for the AKG D7 S Reference Handheld Dynamic
- Product category: Dynamic Microphones AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Dynamic Microphones
|
User manual for the AKG D7 S Reference Handheld Dynamic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The AKG D7 S is a reference handheld dynamic vocal microphone designed to capture vocals and instruments with condenser-like sound for artists and audio engineers in clubs, concert venues, and houses of worship. The laminated dual-layer Varimotion diaphragm exhibits a supercardioid polar pattern for excellent off-axis rejection of audio across the frequency spectrum. This allows high gain before feedback and reduced stage bleed through the mic. Handling noise is minimized by the mechano-pneumatic capsule suspension and an integrated 80 Hz high-pass filter. Thanks to a 70 Hz to 20 kHz frequency response and a maximum SPL of 147 dB, the D7 S delivers detailed sound even on the loudest sources. A hum-compensating coil is incorporated to help reduce interference from electrical devices and to ensure that your captured sound comes through with minimal noise. A silent on/off switch allows easy muting at the mic between performances. In addition, the heavy-duty die-cast chassis with a dent-resistant grille is built rugged to withstand the rigors of daily use. An XLR connector utilizing gold-plated pins ensures signal transfer with maximum conductivity. A padded zip case, SA 61 stand adapter, and a replacement inner windscreen are included. - Dual-Thickness Varimotion Diaphragm
- Provides a subtle and open sound in all frequency ranges
- Feedback Suppression
- The laminate diaphragm material damps critical resonance peaks
- Integrated Hum-Compensating Coil
- Provides a crisp and a cleaner sound
- Precision Metal Dust Filter
- Protects the capsule from sound-changing pollution
- Mechano-Pneumatic Suspension
- Effectively eliminates unwanted handling noises
UPC: 885038021421 In the Box AKG D7 S Reference Handheld Dynamic Vocal Microphone with On/Off Switch Padded Zip Case SA 61 Stand Adapter Replacement Inner Windscreen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG D7 S Reference Handheld Dynamic Vocal Microphone with On Off Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG D7 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Supercardioid | | Frequency Range | 70 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB A-Weighted | | Equivalent Noise Level | 18 dB A-Weighted | | Maximum SPL | 147 dB SPL | | Pad | None | | Impedance | 600 Ohms | | Load Impedance | 2000 Ohms | | Sensitivity | 2.6 mV/Pa | | Low-Cut Filter | @ 80 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 7.28" / 185 mm | | Diameter | 2.01" / 51 mm | | Weight | 11.29 oz / 320 g |
