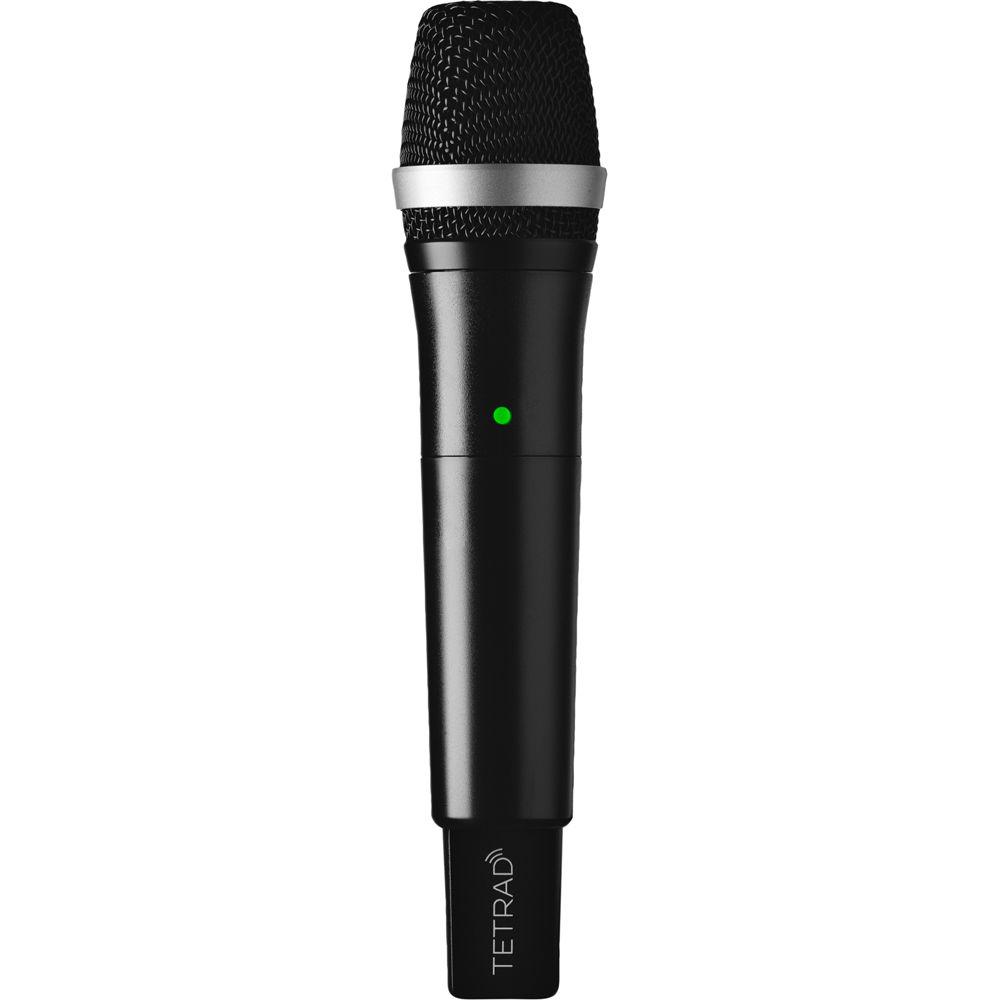

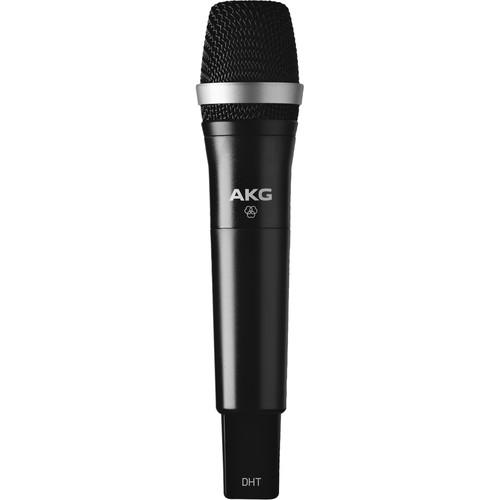

User Manual for AKG DHTTetrad D5 Professional 2.4 GHz Digital Handheld Transmitter Click to enlarge the picture
Contents of the user manual for the AKG DHTTetrad D5 Professional 2.4 GHz
- Product category: Wireless Transmitters AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Wireless Transmitters
 |
User manual for the AKG DHTTetrad D5 Professional 2.4 GHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|

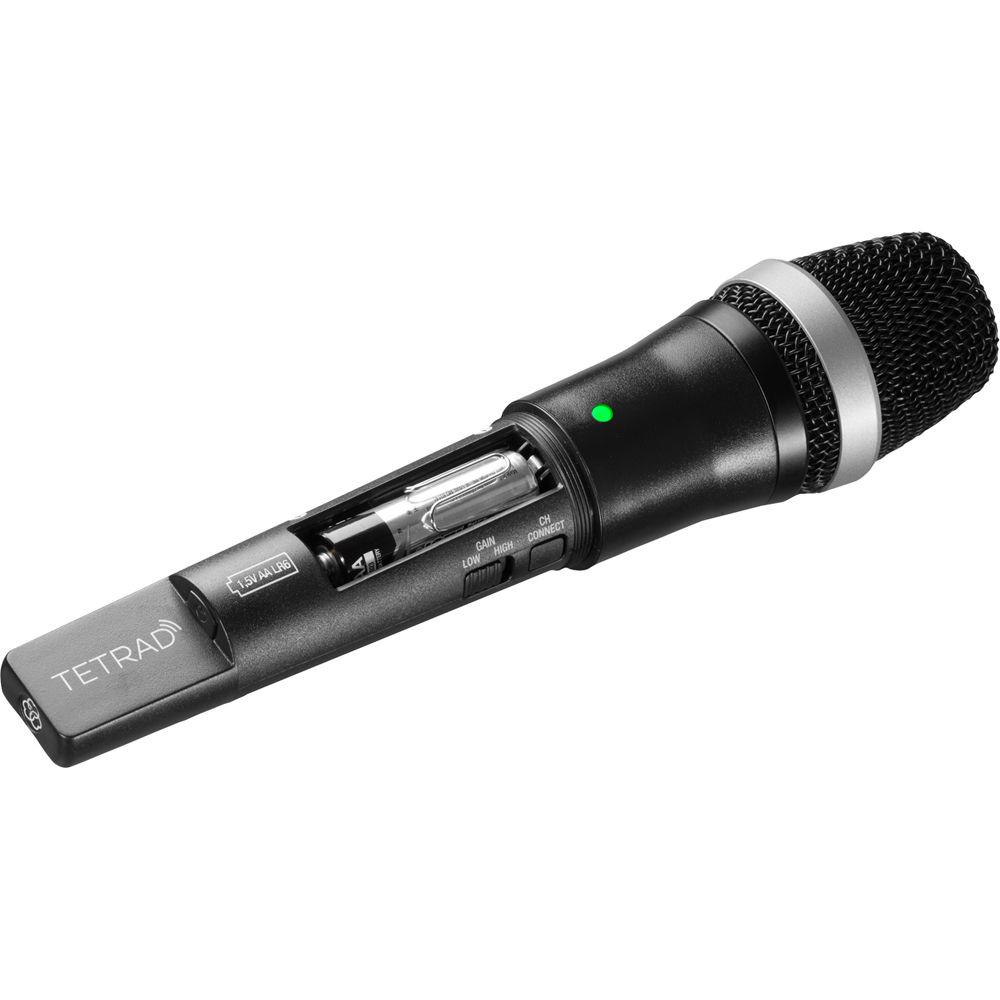

Product description The DHTTetrad D5 from AKG is a professional 24-bit/48 kHz, 2.4 GHz digital wireless handheld transmitter with 128-bit AES standard encryption. It can be used when paired with a DSRTetrad Receiver (sold separately) for uncompromising vocal performance in applications such as live stage, theater, seminars, presentations, clubs, and more. The DHTTetrad provides digital diversity and an out-of-range warning function to ensure a stable and drop-free signal within the entire operating area. A high/low input gain switch allows optimum level adjustment for clear, distortion-free signals. UPC: 885038038672 In the Box AKG DHTTetrad D5 Professional 2.4 GHz Digital Handheld Transmitter SA 63 Stand Adapter for the C1000S 2 x AA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG DHTTetrad D5 Professional 2.4 GHz Digital Handheld Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG D5 Specs | Carrier Frequency Range | 2.4 GHz | | Switching Bandwidth | DFS (2,404 - 2,420 GHz; 2,430 - 2,446 GHz; 2,454 - 2,470 GHz) | | RF Output | Max 100 mW | | Diversity | Digital diversity | | Modulation / Bandwidth | OFDM 16 MHz | | Gain | Pre-Amp Control:
Max. SPL: ≤ 142 dB (gain = low)
Max. SPL: ≤ 129 dB (gain = high) | | Audio Transmission | Uncompressed, digital 24-bit/48 kHz | | Frequency Response | 70 Hz to 20 kHz (± 3 dB) | | Total Harmonic Distortion (THD) | ≤ 0.05% | | Dynamic Range | 120 dB(A) | | Encryption | 128-bit AES | | Range | Indoor: 98.4' (30 m) NLOS (Non-line-of-sight)
Outdoor: 164' (50 m) LOS (Line-of-sight) | | Capsule | Dynamic Supercardioid D5 | | Interchangeable Mic Heads | Yes | | Power Requirements | 6 Hours: 2x LR6 AA alkaline batteries
7 Hours: 2x AA NiMH batteries | | Dimensions (L x W) | 9.2 x 2.0" (233 x 51 mm) | | Weight | 11 oz (300 g) including batteries | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 10.3 x 6.8 x 2.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
