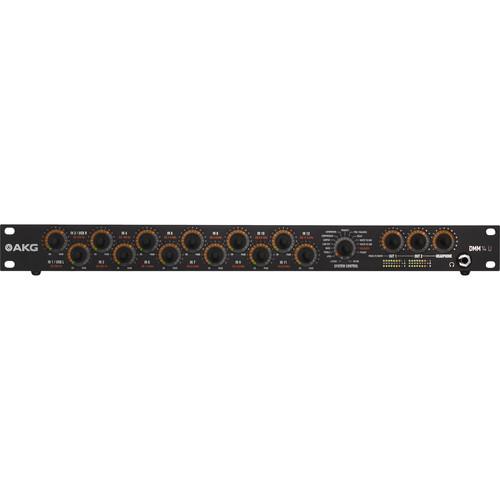

User Manual for AKG DMM14 U Digital Automatic Microphone Mixer Click to enlarge the picture
Contents of the user manual for the AKG DMM14 U Digital Automatic Microphone
- Product category: Install Sound Mixers AKG
- Brand: AKG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AKG Install Sound Mixers
|
User manual for the AKG DMM14 U Digital Automatic Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AKG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!
|
Product description The DMM14 U Digital Automatic Microphone Mixer from AKG is a professional microphone mixer ideal for use in large meetings and conferences. Its DSP function ensures precise mixing of up to 140 channels by cascading up to ten DMM14 U mixers. Two additional stereo audio outputs and one stereo USB offer additional routing options. Due to high signal-to-noise ratio, the DMM14 U also keeps noise from multiple open microphones to a minimum. Numerous DSP functions such as filters, compressor/limiter, ducking, and routing make the DMM14 U suitable for a variety of spoken word applications. - 12-band graphic EQ on outputs for optimized loudspeaker tuning
- Six programmable presets for easy tailoring to different situations
- Two channel USB streaming In and Out to interface with IT networks
- Up to ten units can be cascaded for simultaneous use of up to 140 channels
- Digital signal processing and sophisticated mixing algorithm for wireless multimedia presentations
- Audio matrix routing of all inputs to all outputs for creating multiple mixes of multiple output combinations
- For use in conferences, large meeting areas, round-table discussions in TV shows, and more
UPC: 885038038726 In the Box AKG DMM14 U Digital Automatic Microphone Mixer Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AKG DMM14 U Digital Automatic Microphone Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAKG DMM14 U Specs | Input Channels | 12 x Phoenix, Line/Microphone/Aux/Mono
2 x USB channels | | Output Channels | 6 x Analog, output 1
6 x Analog, output 2
6 x Analog, record
2 x USB channels | | DSP | Functions: Treble, bass, low-cut, limiter, compressor, automix, priority, pan/balance, delay | | Phantom Power | 48 V maximum, 10 mA per input | | Type | Symmetrical | | Level | -60 dBu to 0 dBu | | Frequency Range | +/-3 dB, 20 Hz - 20 kHz | | THD & Noise | < 0.1% | | Noise Level | < -120 dBu (22 Hz - 22 kHz, QPK) | | Dynamics | > 100 dB | | Distortion | 20 dB | | S/N | > 90 dB (22 Hz - 22 kHz, RMS, A-Filter) | | | | Package Weight | 9.65 lb | | Box Dimensions (LxWxH) | 23.2 x 14.6 x 2.4" |
